BODY
6
9.2 ON VEHICLE REPAIRS
9.2.1 BONNET
REMOVAL
1. Open the bonnet.
2. Remove the Pipe connection from windshield
washer nozzle.
3. Pry out the Hood trim from bonnet.
4. Loosen and remove 4 mounting bolts
(
2 in LH
and 2 in RH side.)
5. Lift and remove the Bonnet.
FITMENT
For fitment follow the reverse procedure of the
removal.

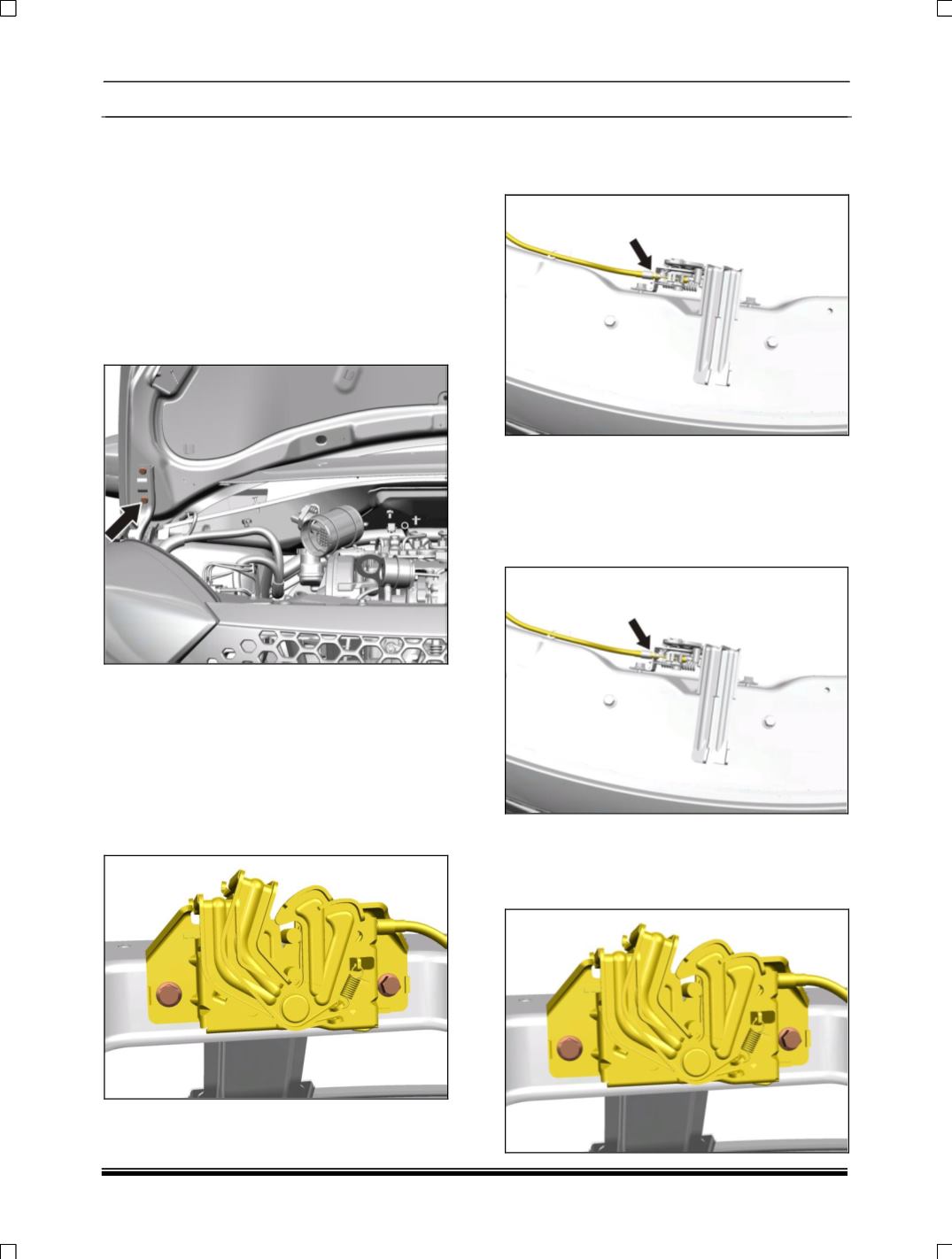

HOOD LATCH ASSEMBLY
REMOVAL
1. Remove the 2 Nos. of Mounting screws.
2. Pull out the Latch assembly from Radiator
support member.
3. Remove the cable cover in the groove.
4. Pull out the cable from the hook and remove
the latch assembly.
FITMENT
1. Insert the cable in the hook.
2. Also insert the cable cover in the groove.
3. Fix the latch assembly on Radiator support
member.
4. Tighten the 2 mounting screws to specified
torque
