ELECTRICAL

83



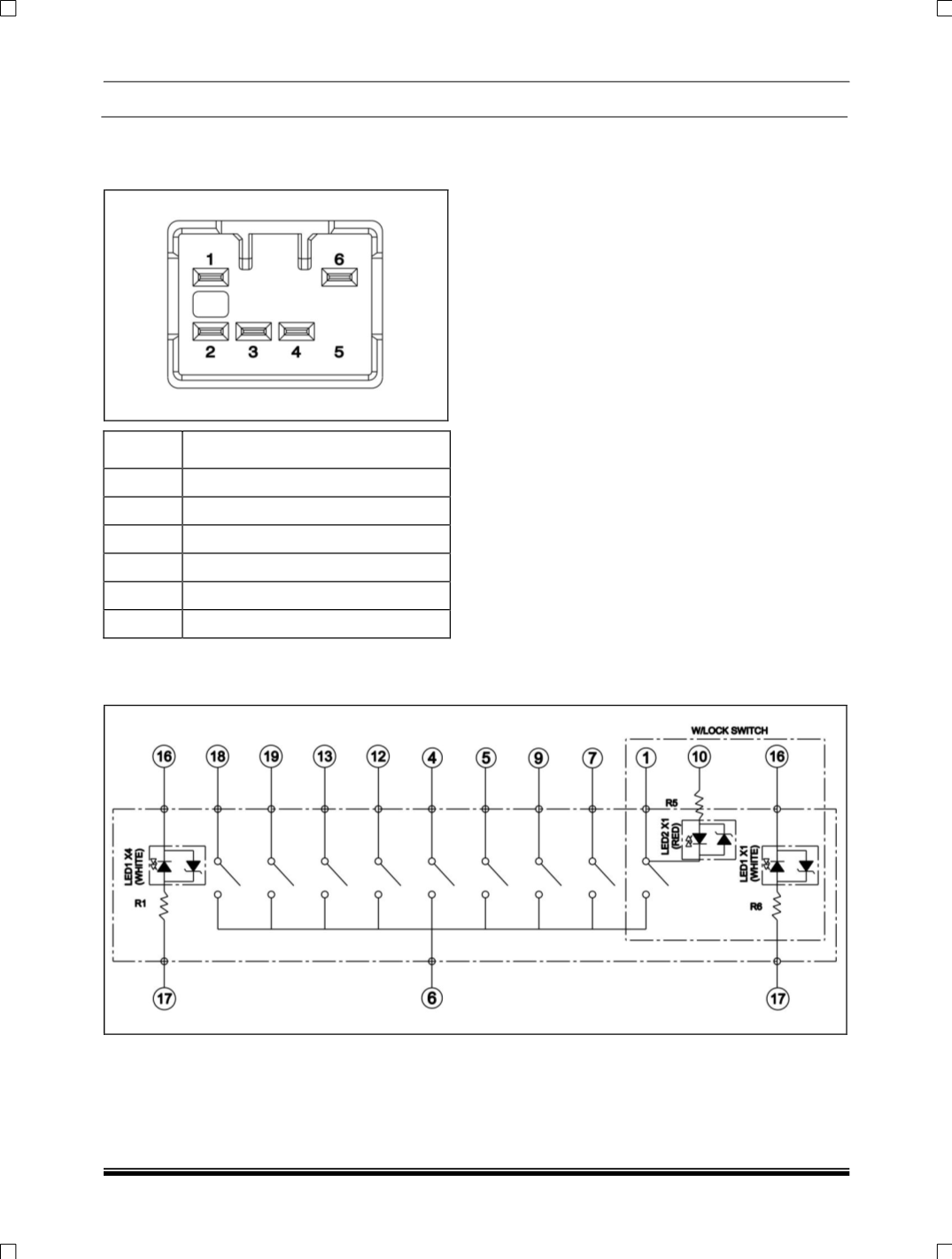

Co-driver, Rear RH & rear LH s/w is 6 pin

connector. For pin out details refer below

table.

PIN

DESCRIPTION

1

ILL -

2

UP

3

DOWN

4

EARTH

5

BLANK

6

ILL +

CONNECTIONDETAILS:



Driver door Switch
