ELECTRICAL
208
FUSE NO
FUNCTION
FUSE DESCRIPTION
F14
CDL. Acc. Conn. 1
15A
F15
Power Socket 1
15A
F16
Relay Coils
5A
F17
Tailgate LATCH
10A
F18
HVAC
10A
F19
Flasher
10A
F19
Heated Rear Screen
25A
F20
Module KL.5 I/P
10A
F21
Power Skt Console
15A
F22
Transist / Infotainment
15A

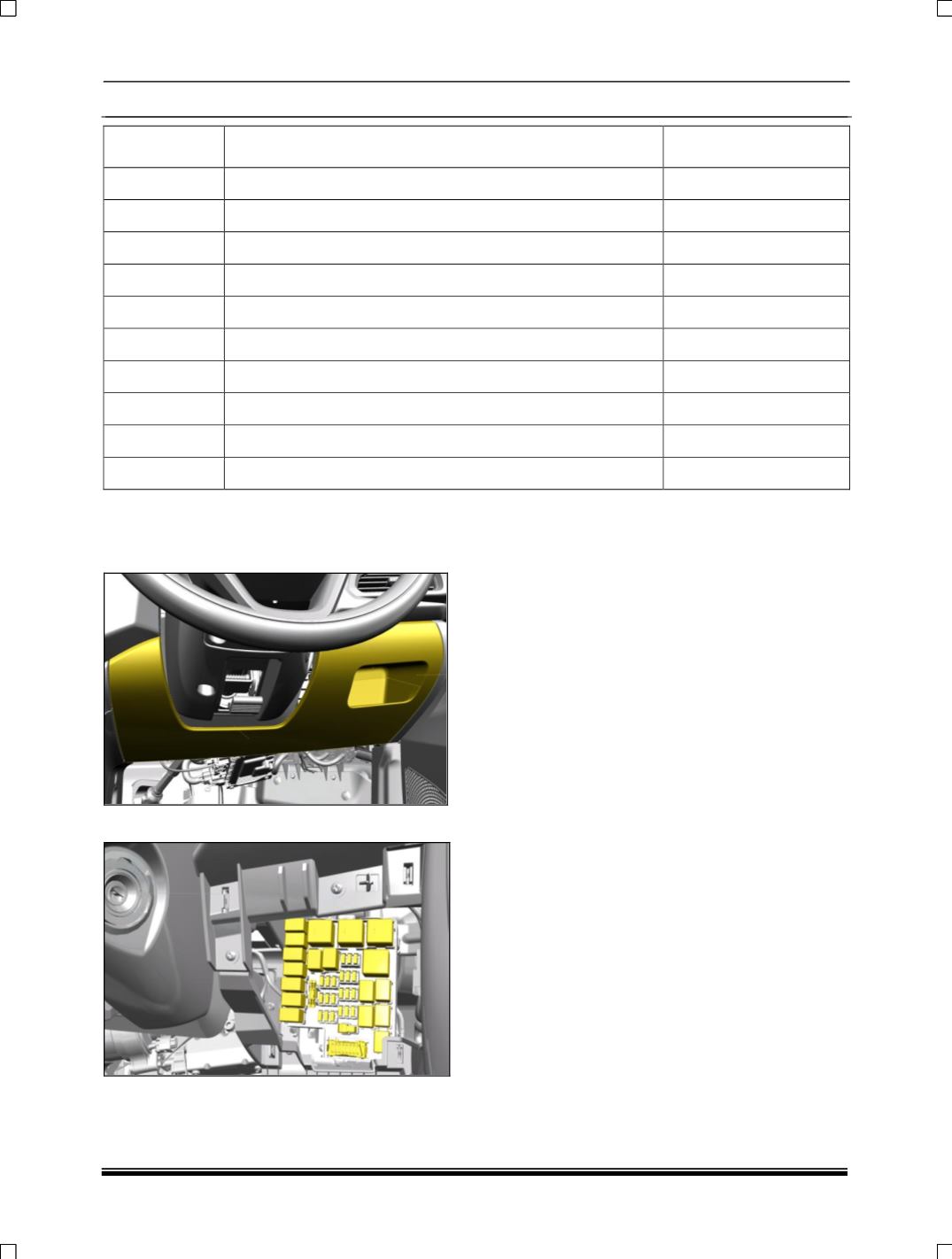

FUSE AND RELAY REPLACEMENT
1. Remove the driver lower panel (Refer Body
section).
2. Take out the fuse and relay from its base.
3. Check the Fuse/relay.
4. If faulty replace with same ratting of fuse and
relay.
REPLACEMENT PROCEDURE FOR RELAYS
1. Turn the ignition key to lock position.
2. Check each relay, if faulty replace with same
rating relay.
3. If replaced relay of same rating is not working
properly, there is probably a serious electrical
problem.
REPLACEMENT PROCEDURE FOR FUSES
1. Turn the ignition key to lock position.
2. Check each fuse and look for broken/open
controls link wire inside the fuse. If it is burnt,
replace it with one of the spare fuses of same
rating.
3. If replaced fuse of same rating burns out then,
there is probably a serious electrical problem.
Note: Use designated fuses only
.
27.4 CIRCUIT SCHMATICS
Refer A3 Book
27.5 DTCs
Refer A3 Book
