TIGOR - SERVICE MANUAL

ELECTRICAL

REMOVAL & REFITMENT OF TAILLAMP &

BULBS

REMOVAL

1. Open Tailgate & ensure all lamps in OFF

condition.

2. Disconnect Tail Lamp Connector.

3. Remove the two nut mounting fastener.

4. Pull the lamp at catcher points to release from

BIW & take lamp out from vehicle.

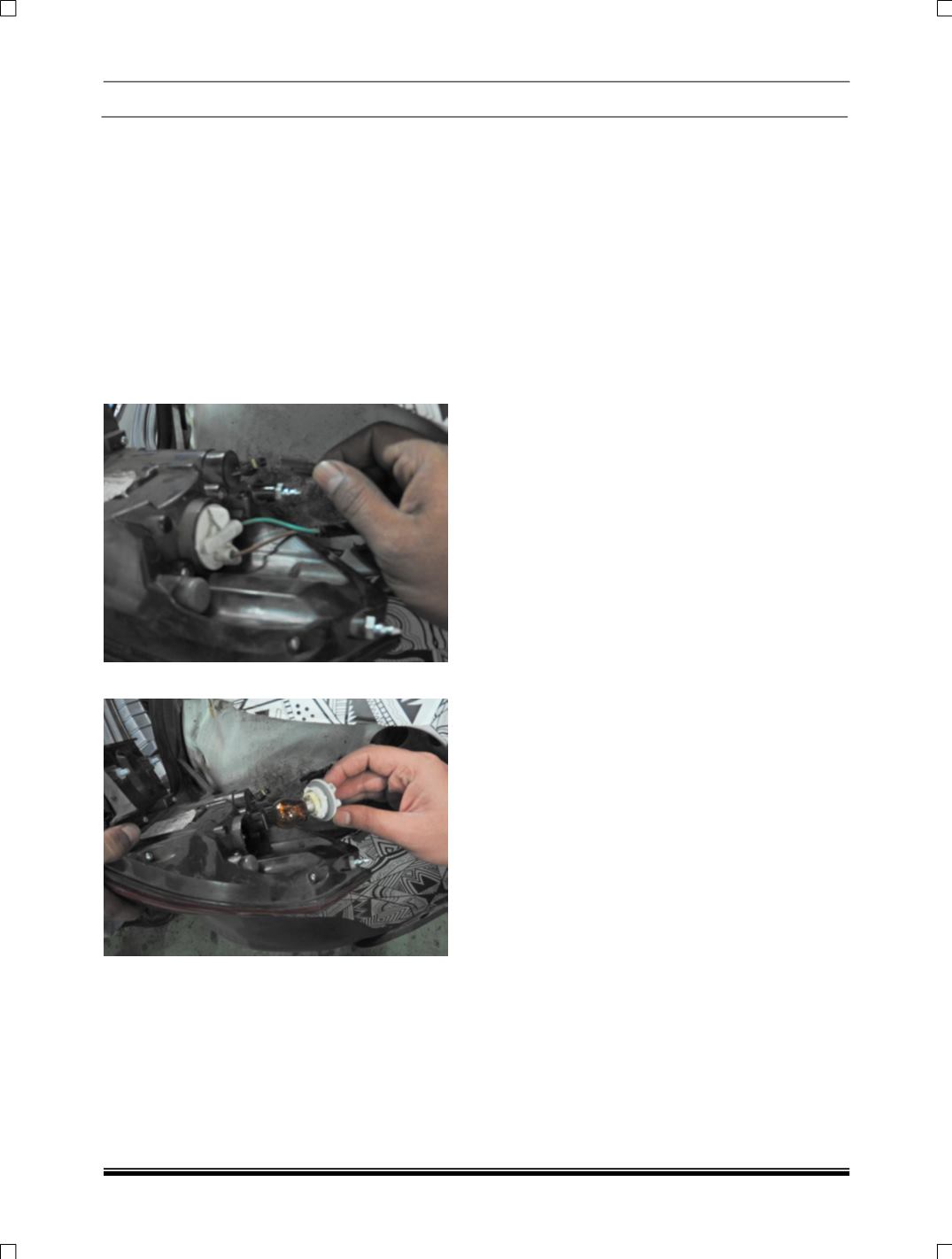

5. Rotate the turn signal bulb holder in anti-clock

wise direction to unlock the bulb holder from

lamp.

6. Remove the bulb holder from lamp.

7. Remove/replace the bulb.

8. Rotate the bulb holder in clockwise to lock the

bulb holder on lamp

REFITMENT –

1. Position Tail lamp to its proper place.

2. Push the lamp at catcher points to sliding

direction x axis to lock with Trim Clip on BSO &

simultaneously catcher on BSO.

3. Tight the both nuts

4. Connect Tail lamp connection.

5. Close the Tailgate
