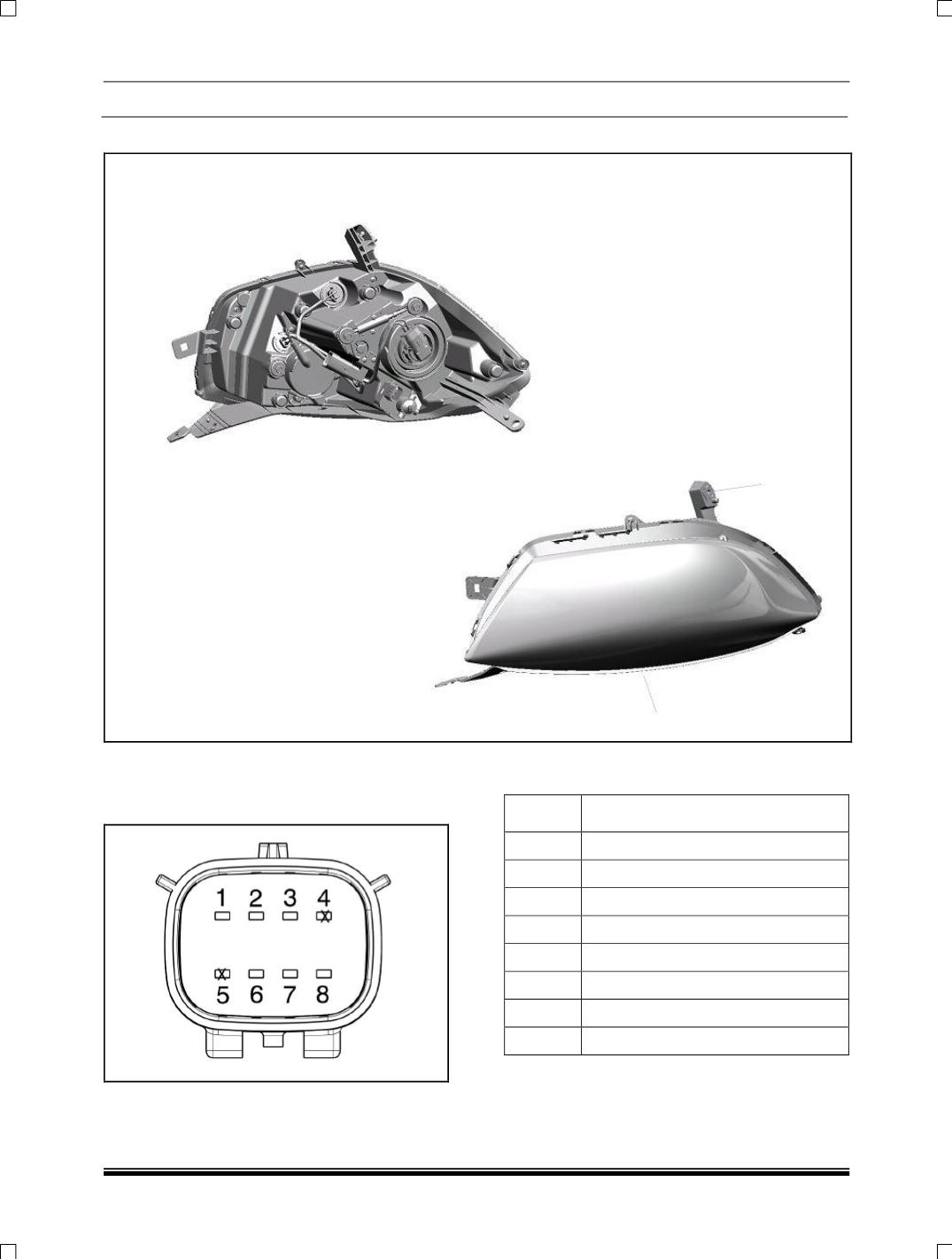

7.4. HEAD LAMP

PINOUT DETAILS

a. Head lamp connector

PIN

DESCRIPTION

1

Low Beam

2

High Beam

3

Turn Indicator

4

Dummy

5

Dummy

6

Ground (For Low/ Position)

7

Ground (For Turn & High)

8

Position Function
