STEERING
16
3. OVERHAULING

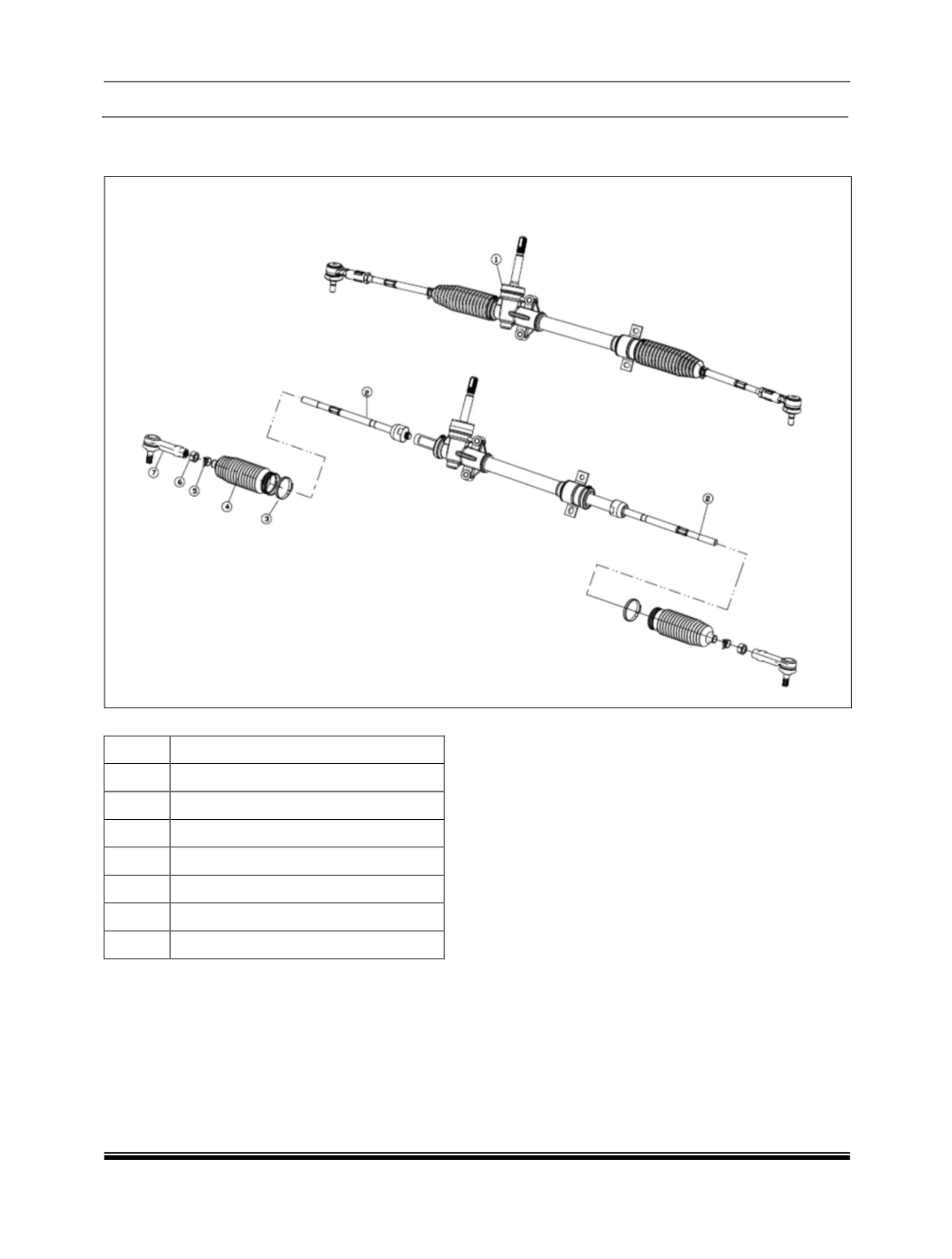

3.1. OVERHAULING OF STEERING RACK AND PINION ASSEMBLY
SR NO DESCRIPTION
1
Rack & Pinion Assembly
2
Axial Joint
3
House Clip
4
Bellow
5
Clip
6
Nut
7
Ball Joint
NOTE:
1. RPS assembly already removed from
vehicle. (Refer RPS assembly removal
procedure)
2. Refer exploded view of Steering Rack and
Pinion Assembly while overhauling
procedure.
