STEERING
1
1 GENERAL INFORMATION
1.1 SPECIFICATIONS
TYPE
Column mounted Electrical power assisted steering system with,
mechanical Rack and Pinion steering gear with collapsible and till type
steering column.
STEERING WHEEL 4 Spoke & 360 mm Dia .
STEERING WHEEL TURN 3
STEERING RATIO 15.89 : 1

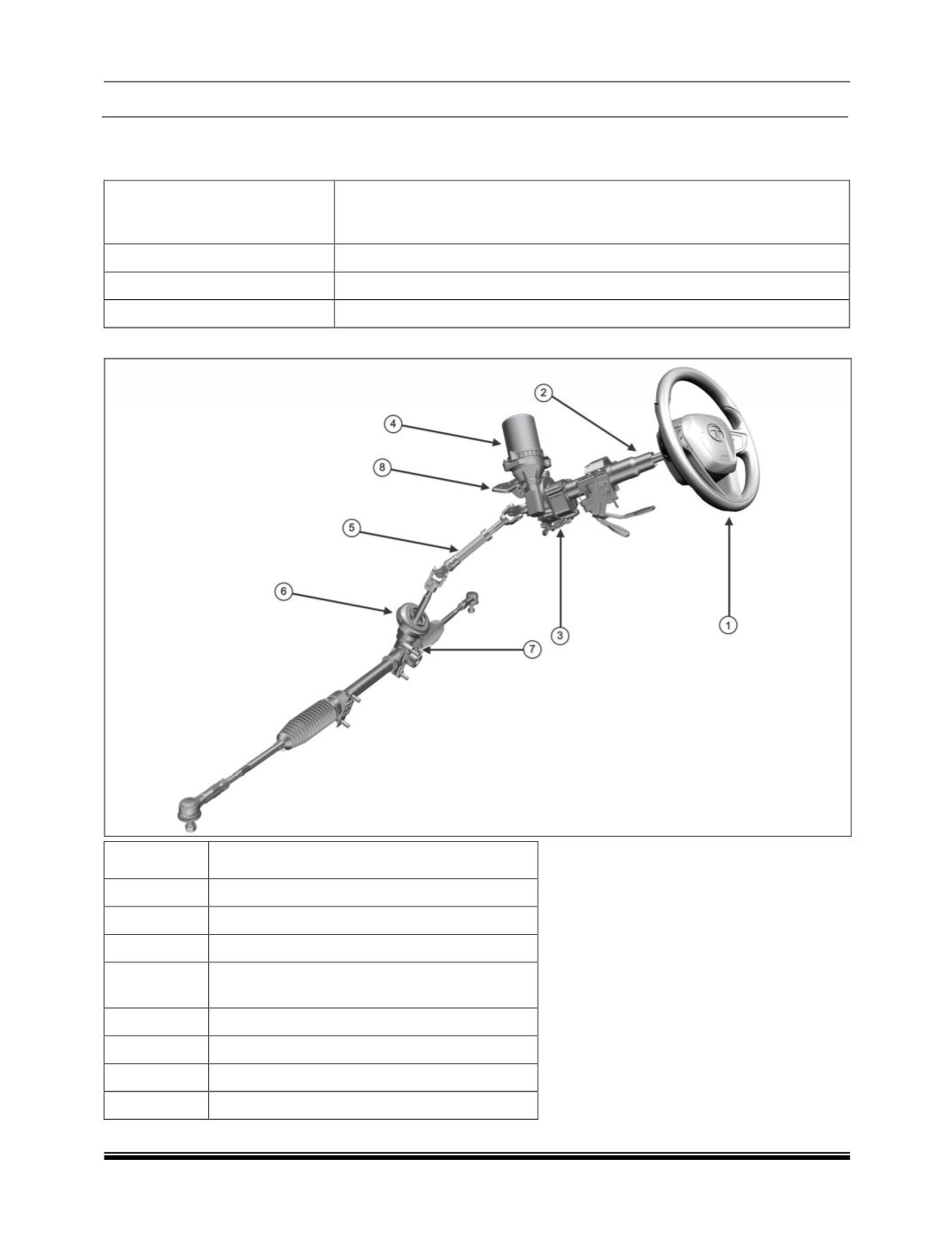

1.2 SYSTEM LAYOUT
. DESCRIPTION
1 Steering wheel
2 Steering column
3 ECU
4 servo Unit with motor (torque and angle
sensor +motor)
5 Intermediate shaft + UJ assembly
6 Firewall Seal Assly
7 Mechanical Rack and pinion assembly.
8 Steering Column Pivot Mounting Bracket
