STEERING
15
3. OVERHAULING
3.1. OVERHAULING OF STEERING RACK AND PINION ASSEMBLY
SR NO DESCRIPTION
1
Rack & Pinion Assembly
2
Tie Rod
3
House Clip
4
Bellow
5
Clip
6
Nut
7
Outer Ball Joint
8
Plastic Pokayoke Flag.
NOTE:
1. RPS assembly already removed from
vehicle. (Refer RPS assembly removal
procedure)

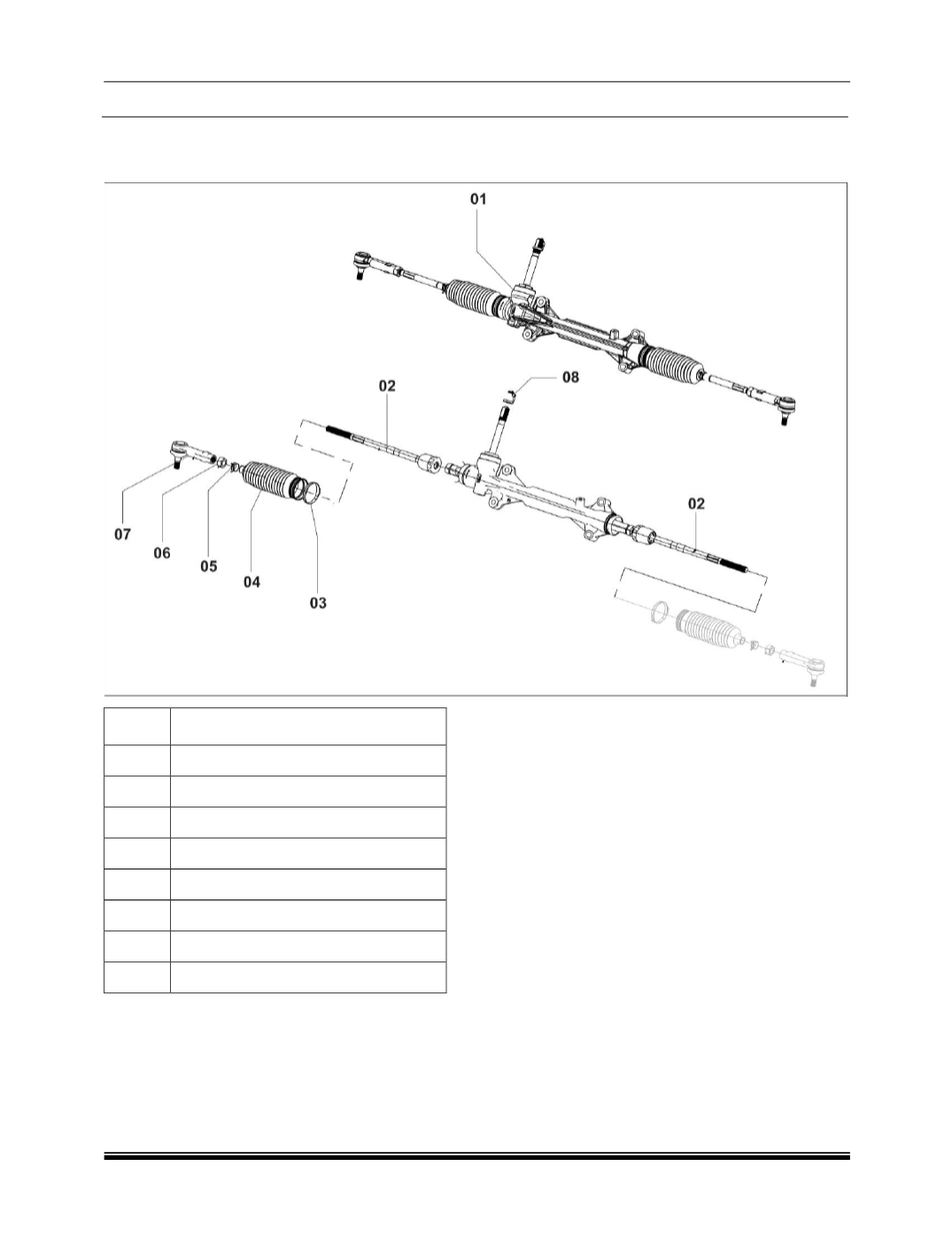

2. Refer exploded view of Steering Rack and
Pinion
Assembly
while
overhauling
procedure.
