SUSPENSION

37

10.Lock the dust cover with top mount as shown.

FIG. 66

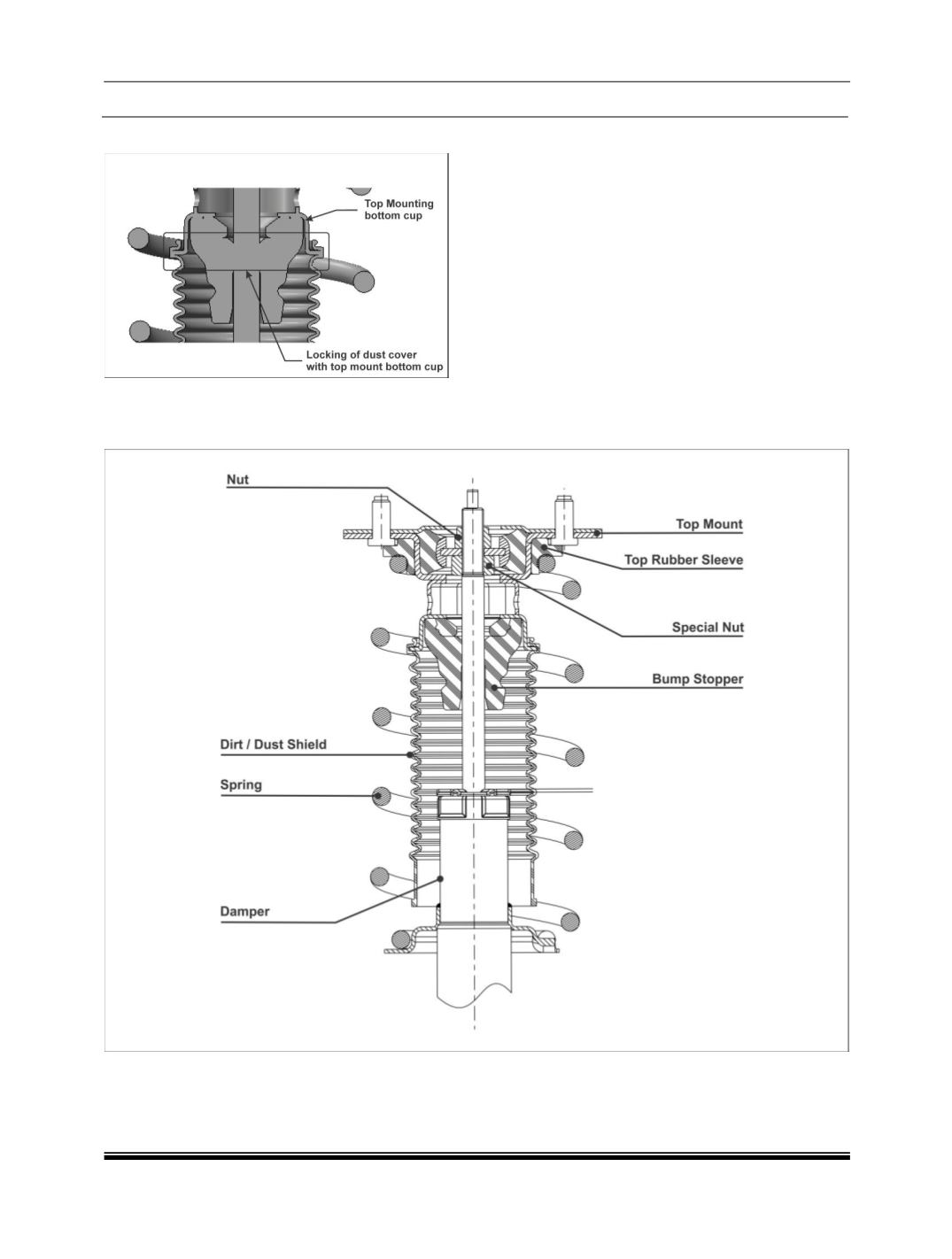

CUT SECTION VIEW OF REAR SHOCK ABSORBER:

FIG. 67
