DRIVETRAIN-TA65 Star
48
gently tapping with a mallet.

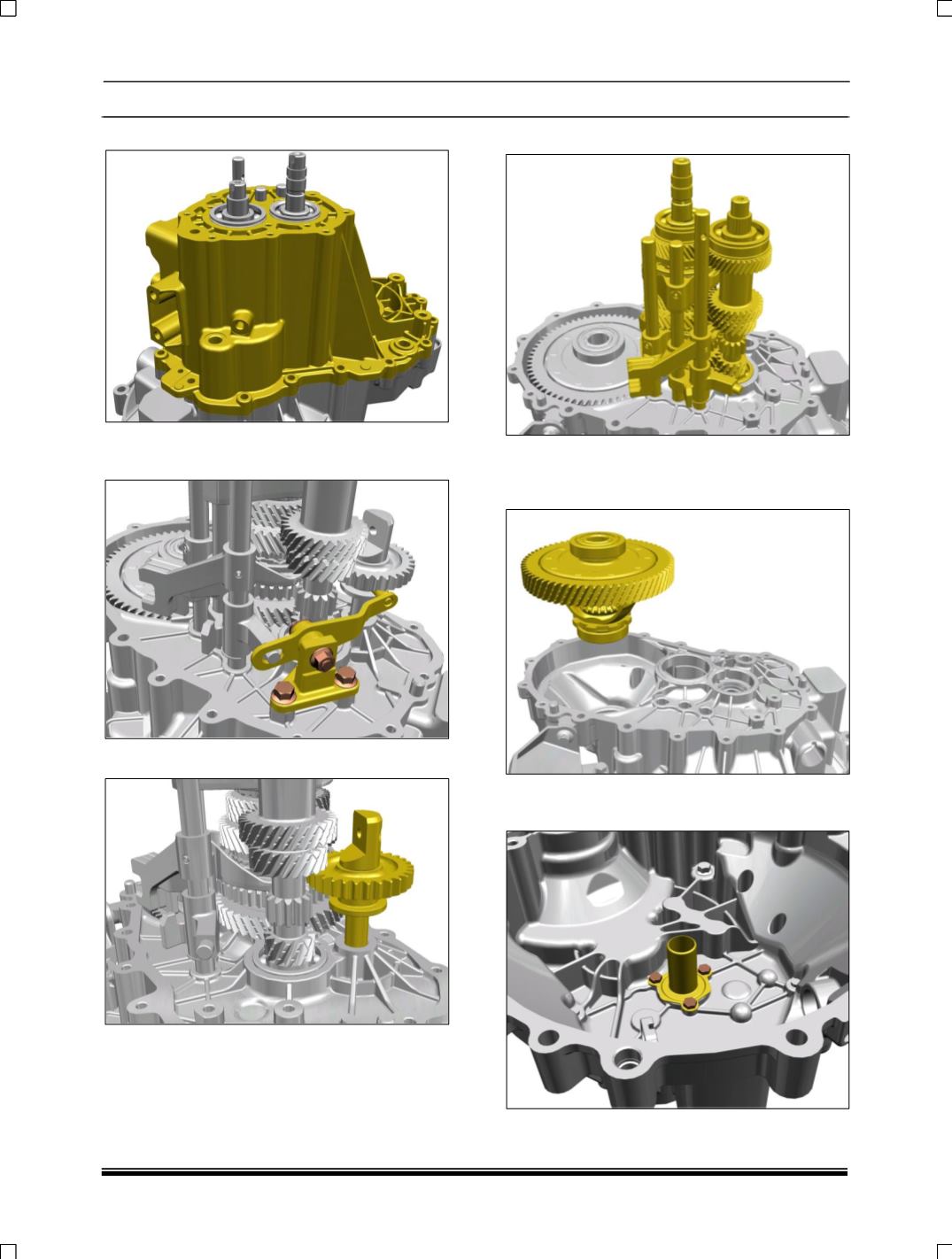

30. Remove reverse idler shaft, & Reverse lower
bracket Assembly.
31. Remove reverse idler gear assembly.
32. Remove the adaptor part no. 2702 5890 2611
for locking input shaft. Tap the input shaft
gently from the spline end also top the lay
shaft.
33. Pry out the input shaft, and lay shaft along with
shifter shaft assembly from the clutch housing.
34. Remove the differential assembly along with
the oil seal and taper roller bearing from the
housing front.
35. Remove the input shaft cover by removing M6
* Mounting Bolts.
