HARRIER BOOK-1

ELECTRICAL

264

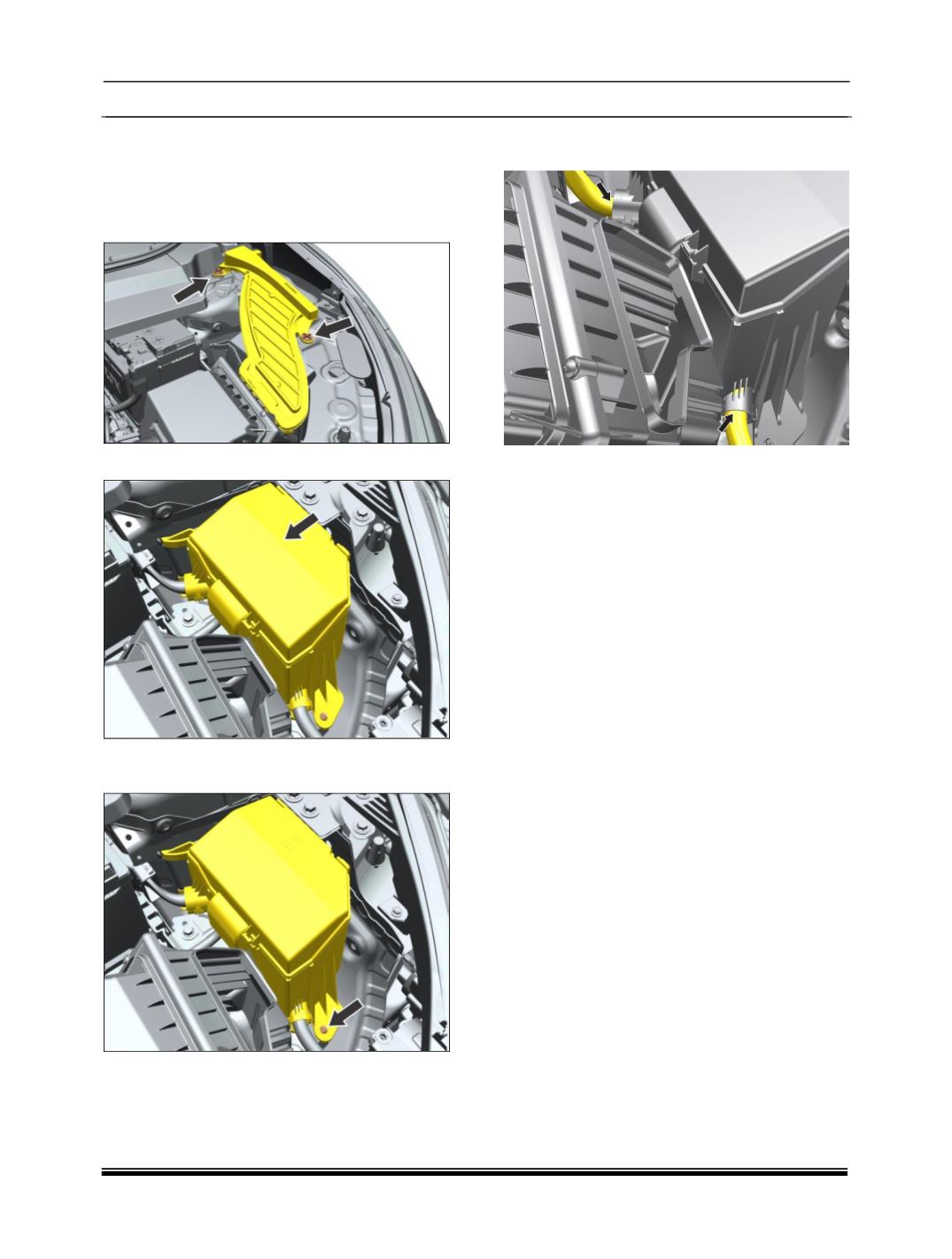

REMOVAL

1. Remove the Battery. (For procedure, refer

Battery removal process in Electrical section.)

2. Loosen and remove the Rivet and pull out the

air duct.

3. Remove the top cover of fuse box.

4.Remove the mounting bolt of the fuse frame

assembly.

5.Gently pull out the fuse frame and disconnect all

the electrical connections.

FUSE AND RELAY REPLACEMNET:

1.Remove the cover of the fuse box.

2.Take out the fuse or relay from its base.

3.Check the Fuse/relay.

faulty, replace with same ratting of fuse and

relay.

FITMENT

For fitment follow reverse procedure of the

removal.
