808 / 948
ELECTRICAL
183
14
Door Window Up Switch
15
Tailgate, Switch Input
16
Wiper Front Park Signal
17
Turn Left Switch Signal
18
Driver Door Lock Signal
19
Ignition Key State CRANK
20
Brake Light Switch Signal
21
Ignition Key State ACC
22
Wash Front Switch Signal
23
Wiper Front Switch Signal Intermittent
24
Door UnLock Control Driver/ Door
UnLock Control TailGate
25
Hazard Switch LED Signal/ /Dr
Window Output
26
Door Lock Control All
27
Horn Signal
28
Head Lamp Low Beam Relay/ Follow
me home relay
29
Internal 5 V
30
Internal GND1
31
Battery GND1
32
LIN 1
33
Wiper Front Speed Switch Signal
34
Fog Lamp Front Switch Signal
35
Ambient Light Switch Signal
36
Reverse Gear Signal
37
Wiper Front On Off Relay Control
38
Wiper Rear Relay Control
39
Door Unlock Control Others
40
Wake Up Input
41
Front Fog Lamp Relay/ Front fog
facsia switch telltale
42
Rear Defogger Relay Control
43
Internal_12V
44
Battery GND2
45
CAN Chassis H
46
CAN Chassis L
47
Fog Lamp Rear Switch Signal
48
Rear Defogger Switch Signal
49
Hazard Switch Signal

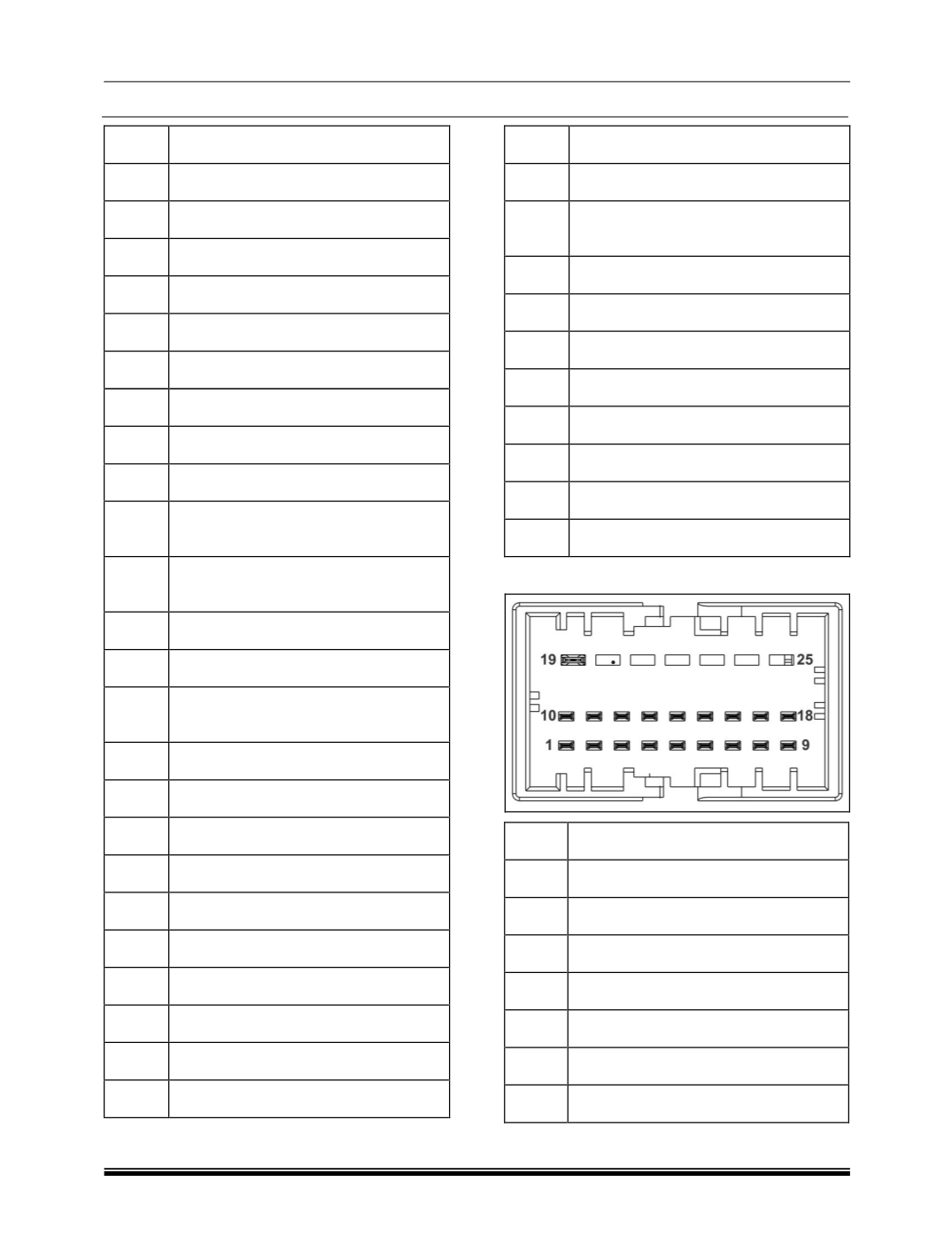

CONNECTOR B
PIN
DETAILS
1
Reverence Lamp Signal Right
2
Rear Fog Lamp Control LH
3
Front Roof Lamp Control
4
ACC Delay Control
5
Rear Fog Lamp Control RH
6
Position Lamp Control Left
7
Wash Front Pump Ctrl
