689 / 948
ELECTRICAL
64

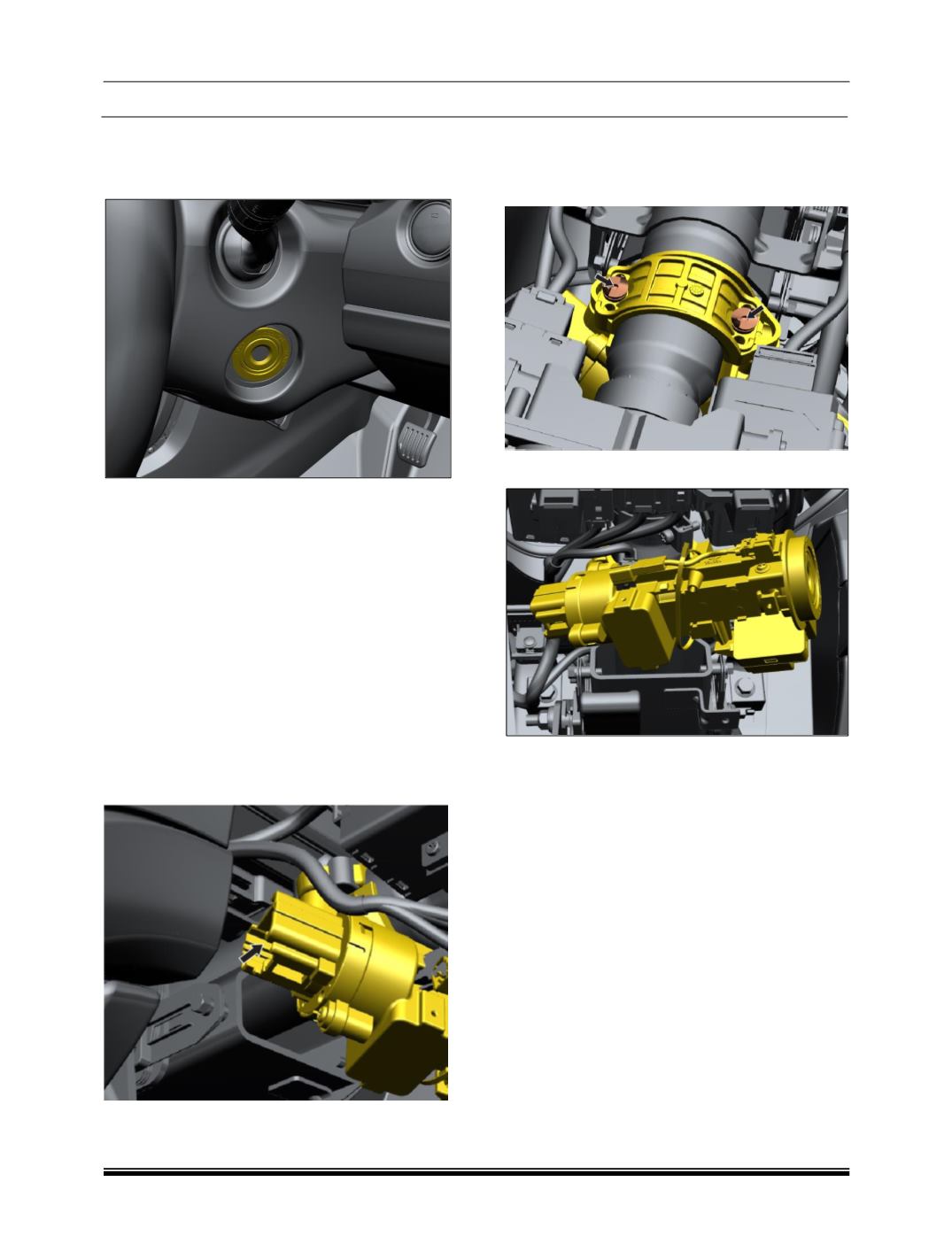

LOCATION
It is fitted on steering column below the steering
wheel and combi switch.
REMOVAL & REFITMENT OF STEERING LOCK
CUM IGNITION SWITCH (SLCIS)
REMOVAL
1. Disconnect battery negative terminal.
2. Remove steering nacelle. Refer “Removal &
refitment of steering nacelle" from steering
section.
3. Remove steering wheel. Refer “Removal &
refitment of steering wheel" from steering
section.
4. Remove combi switch. Refer “Removal &
Refitment of combi switch."
5. Disconnect steering lock cum Ignition switch
connection.
6. Steering lock cum ignition switch mounting
screws are anti loosening. To remove the
Ignition lock, screw to be loosened by using
flat screw driver and hammer.
7. Remove assembly of SLCIS.
REFITMENT
1. Refit SLCIS and tighten its mounting screws.
2. Reconnect SLCIS connection.
3. Refit combination switch.
4. Refit steering Wheel.
5. Refit steering nacelle.
6. Refit battery negative terminal.
