ELECTRICAL
43
FRONT AND REAR WIPER SYSTEM

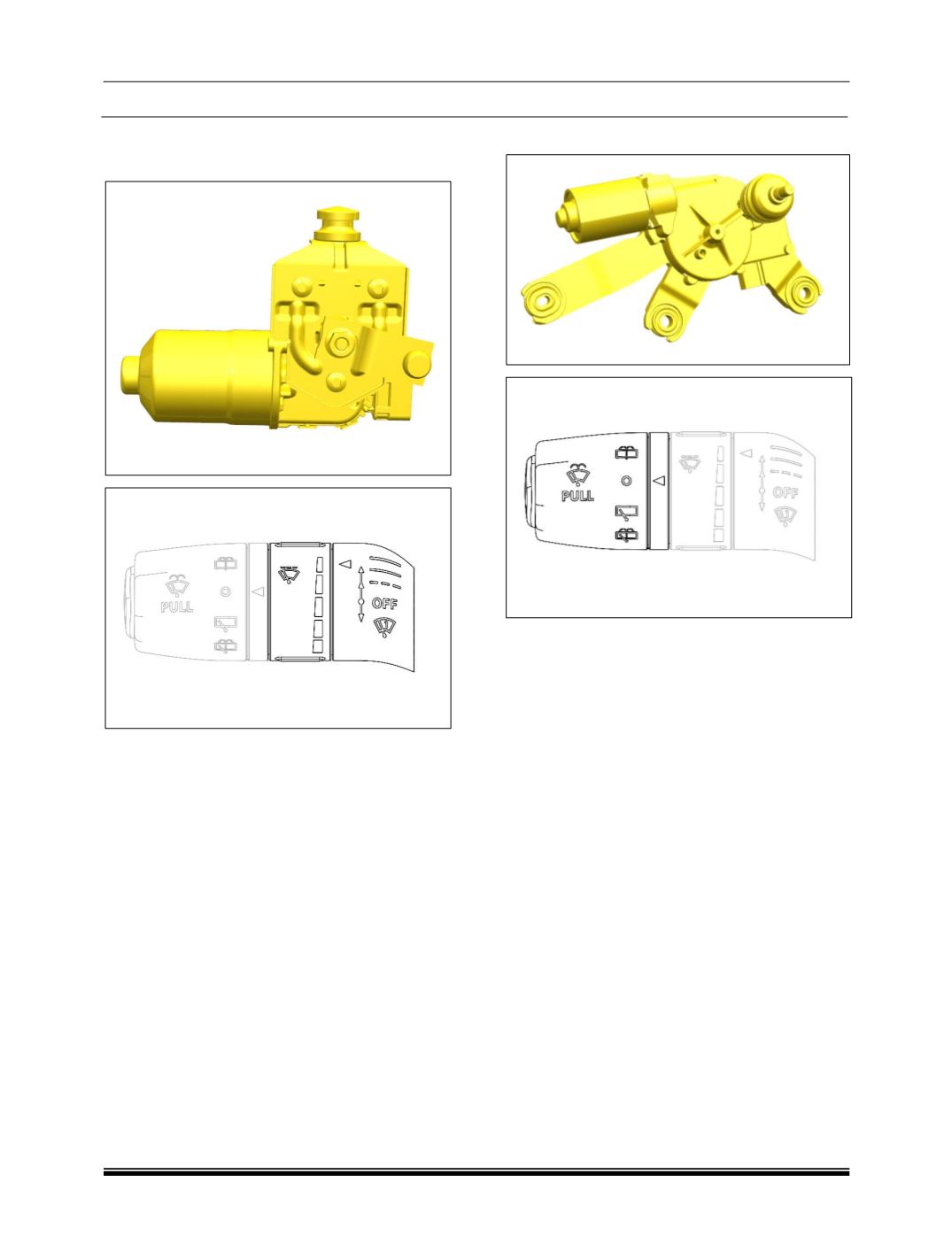

FRONT WIPER MOTOR
LOCATION:
The front wiper motor assembly is fitted on
windscreen support panel.
FRONT WASH AND WIPE
SELF RETURN
Mist
OFF
INTERMITTENT
LOW SPEED (Not controlled by BCM)
HIGH SPEED ((Not controlled by BCM)
REAR WIPER MOTOR (If Applicable)
LOCATION:
It is fitted on tail gate panel.
REAR WASH AND WIPE:
Rear Wipe & wash ON
Rear Wipe ON
OFF
Rear Wipe & wash ON
For detail, please refer BCM section.
