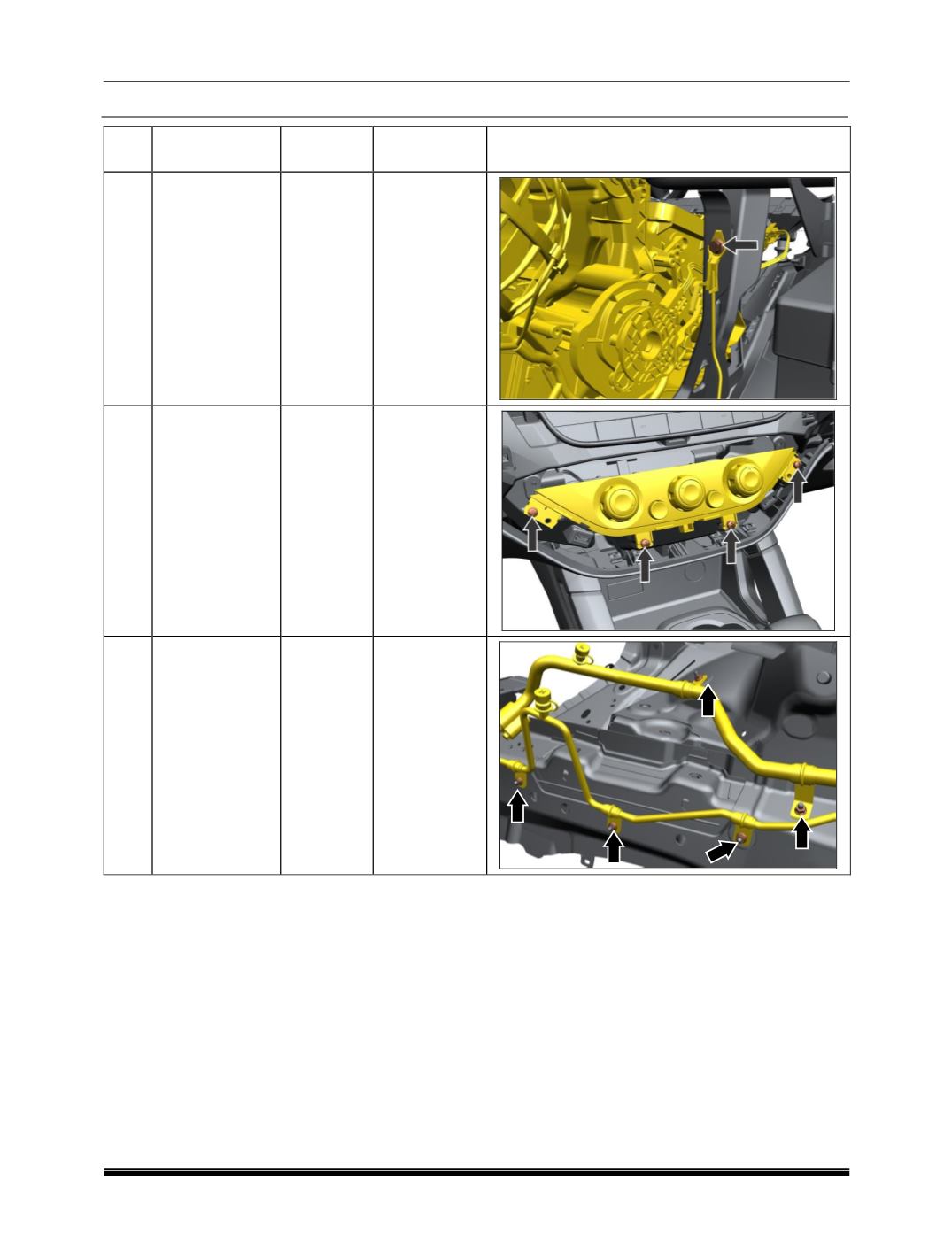

442 / 948
HVAC
7
SR
NO.
DESCRIPTION FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION
3
HVAC side
earthing
connector
M6X12
6 ~ 8
4 Control module ST 4.8 X 25
2 ± 0.4
5
Liquid and suction
pipe
assembly
clamping on BIW
HEX FL
NUT AM6
6 ~ 8
|
|
442 / 948
