Anti-lock Braking System(ABS)
17

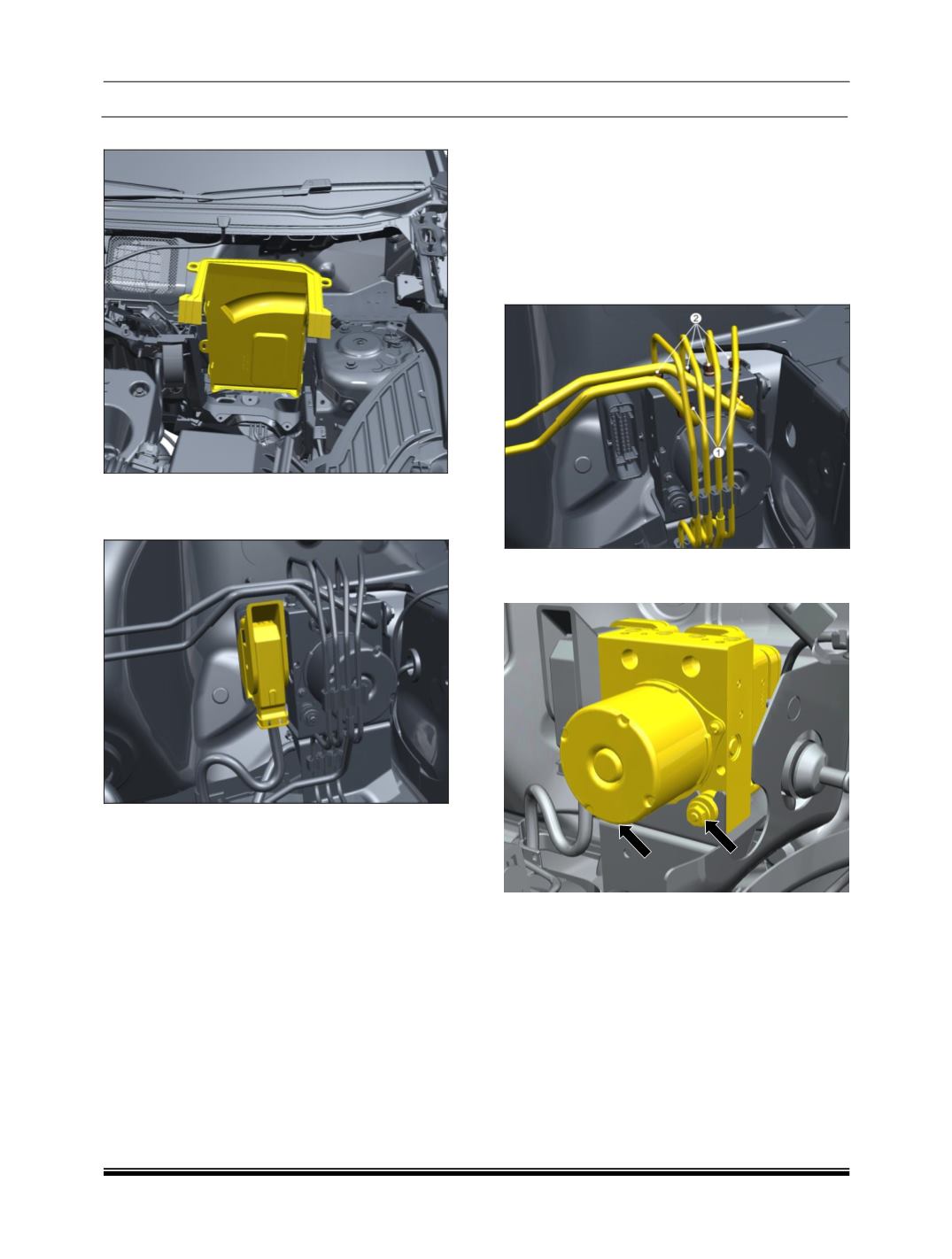

5. Remove the battery tray support.
6. Disconnect ABS ECU/HCU wiring harness
connector
(Refer the procedure given in the
note below).
NOTE
Refer steps (i) and (ii) to disconnect ABS ECU
/HCU connector.
(i) Press the unlock button and remove the lever
from the lock and move towards unlocking
position.
(ii) Lock the lever to it’s unlocking position by
pressing the lever till the
Click
sound is
heard and remove the connector from ABS
ECU.
WARNING :
Never apply a 12V power source to any terminal
of the ECU connector when it’s disconnected.
7. Identify the brake pipes going into and out of
the Hydraulic Unit (HCU) with tags so that
reinstallation of the brake lines becomes
easy.
NOTE:
Proper care should be taken before disconnecting
the brake pipes from HCU and the HCU must be
thoroughly cleaned on the outside to prevent any
dirt particles from falling into the ports of HCU or
entering the brake pipes.
8. Remove the brake pipes from MC (1) and
feed pipes to calipers (2) from the HCU and
plug the ports with suitable grommet / Cap.
9. Loosen the 2 holding nuts of the ABS ECU.
10. Lift the damper element from the ECU
mounting bracket.
