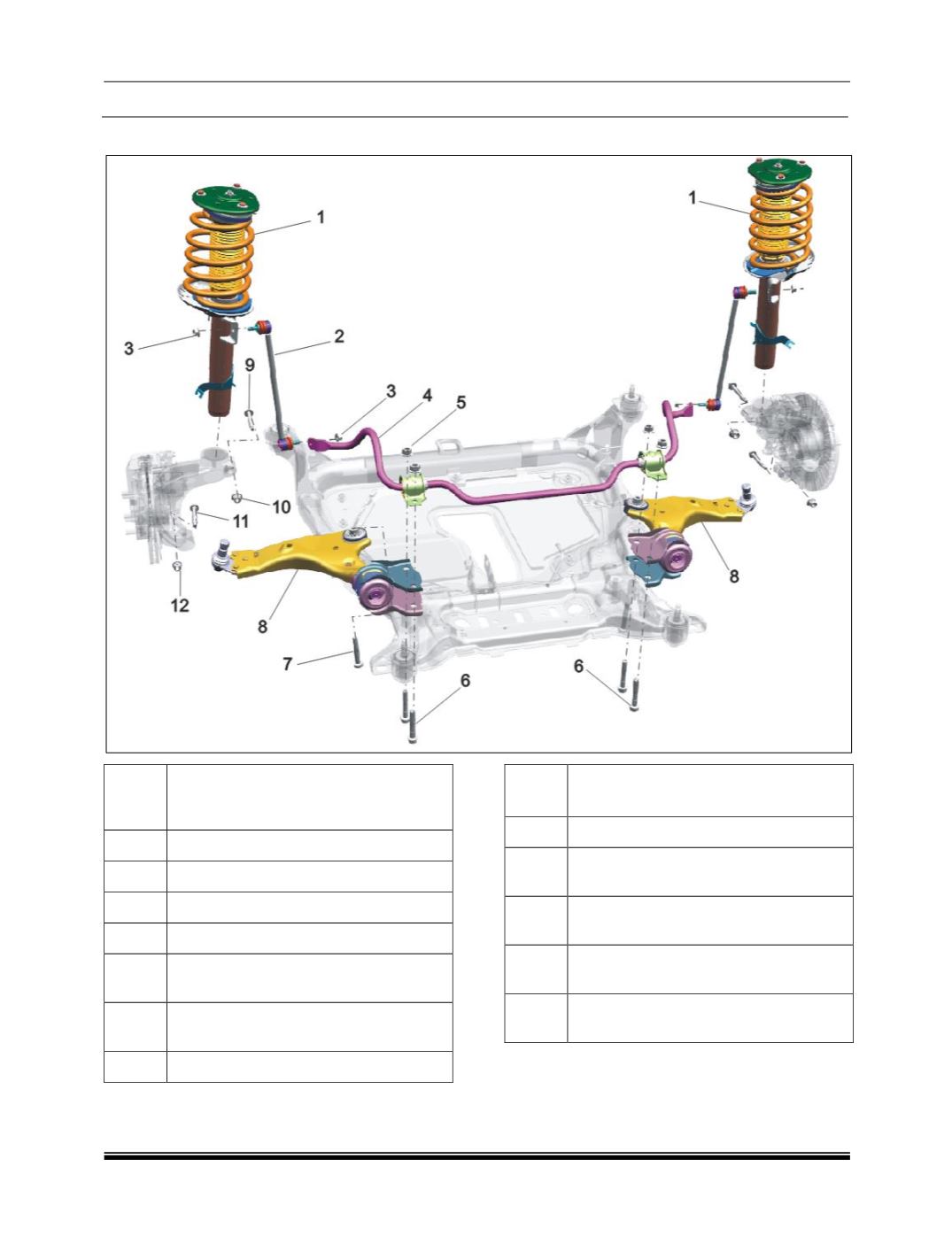

B) FRONT SUSPENSION SYSTEM MOUNTING EXPLODED VIEW
SR
NO.
DESCRIPTION
01
FRONT STRUT ASSY
02
ARB LINK ASSY
03
HEX FLANGE NUT M10X1.5
04
ANTI ROLL BAR FRONT
05
HEX FLANGE NYLOC NUT (ARB &
BUSH CLAMPING)
06
BOLT,ANTI ROLL BAR MTG BKT
M14x2
07
BOLT LCA FRONT PIVOT (M14X2)
SR
NO.
DESCRIPTION
08
LOWER BALL JOINT ASSY
09
HEX FLANGE BOLT,FRONT STRUT
MTG M12X1.75
10
HEX FL NYLOC NUT M12 ,FRONT
STRUT MTG
11
HEX FLANGE BOLT LBJ MOUNTING
(M12X1.75)
12
HX FL NYLOC NUT M12 LBJ
MOUNTING
