DRIVESHAFT
15
PRECAUTION:
Use hook to hang tie rod ball joint
While disengaging driveshaft from gearbox
take care that intermediate bearing bracket
should not be damage.
Do not pull drive shaft excessively as the
plunge joint will come out of housing and
damage the boot.
Do not place the drive shaft on rough /
uncleaned surfaces. This might damage the
drive shaft boot.

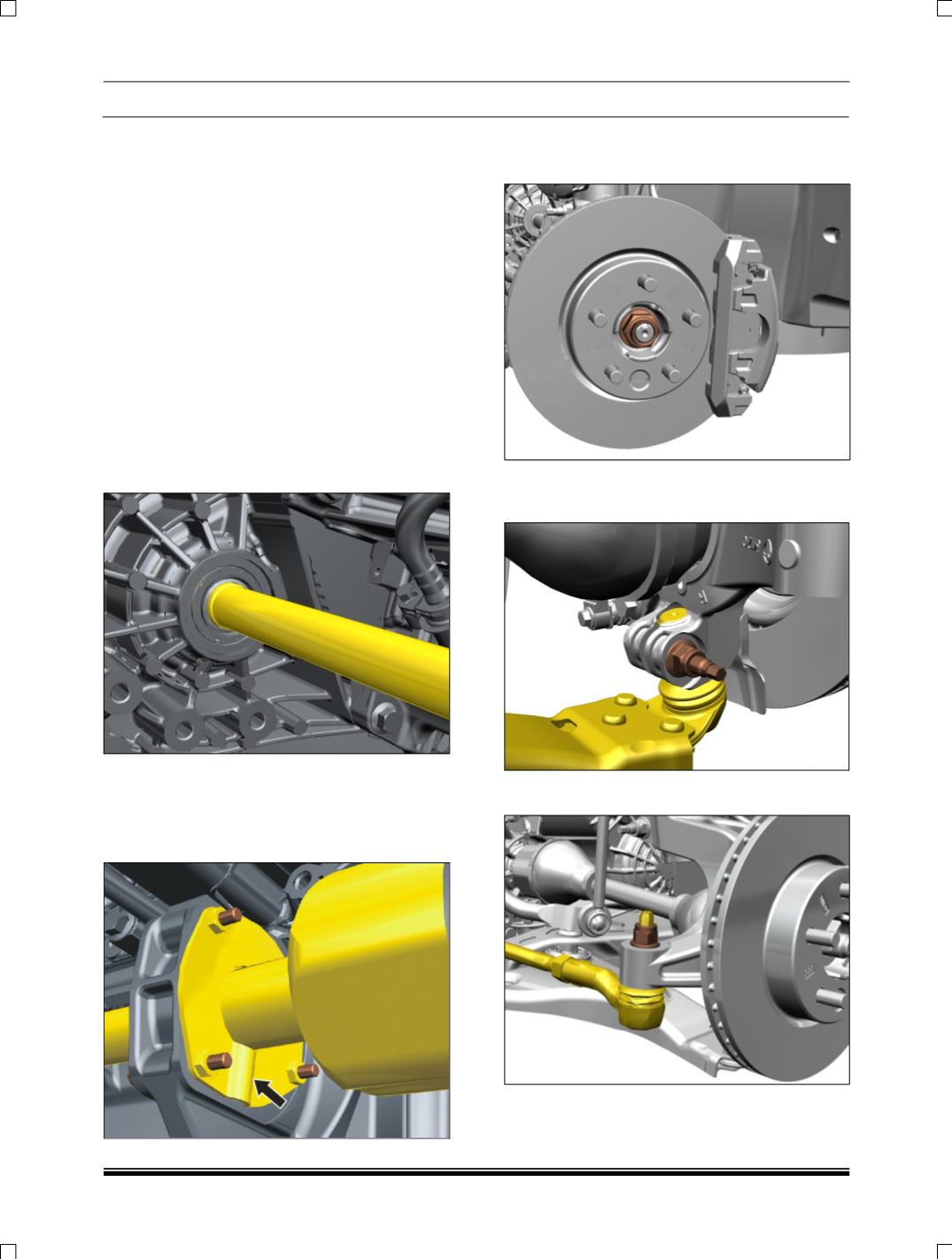

FITMENT OF RH DRIVESHAFT
1. Align & Insert the driveshaft at gearbox end
through intermediate bracket.
NOTE:
While Assembly driveshaft to gearbox take
care that intermediate bearing bracket should
not be damage.
2. Assemble the Intermediate shaft bearing
mounting bracket with torque 1.5 – 1.7Kgm.
NOTE:
Groove (shown by arrow) of the bearing
mounting bracket should be at lower end
3. Insert the driveshaft at knuckle end & rotate
the driveshaft nut to pull the driveshaft in
knuckle.
4. Insert the LCA ball joint in knuckle & tighten
the mounting fastener with torque .4.9 ± 0.7
kgm & angular torque 180°±5°.
5. Insert the tie rod ball joint & tighten the nyloc
nut to knuckle at torque 11.5-15.5 kgm.
