C635 TRANSAXLE
38

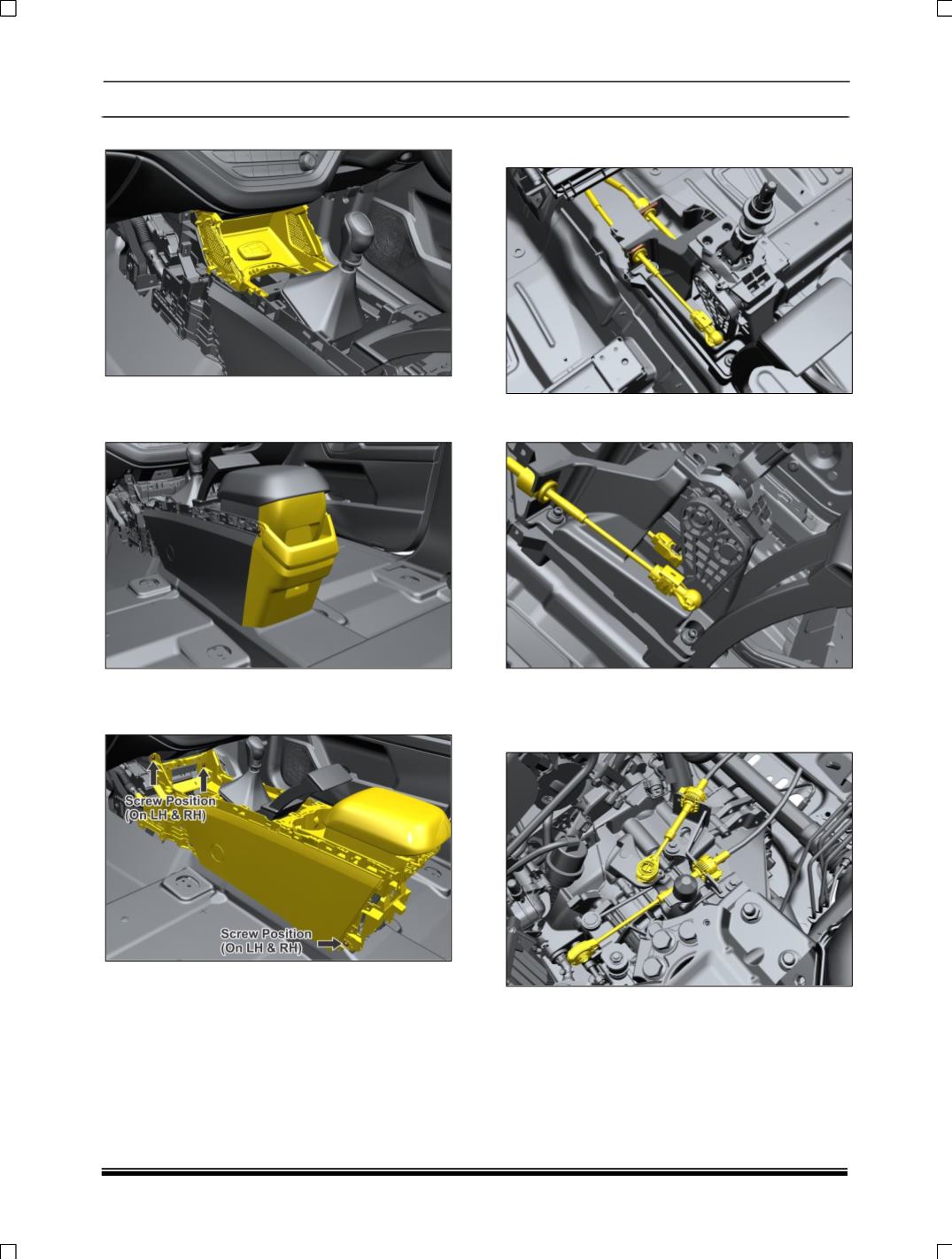

9. Remove Console Lower trim Assembly.
10.Remove two screws & six trim clips & take out
Console Rear Storage Assembly with Auxiliary
USB.
11.Remove 4 screws on IP & 2 screws on GS
Bracket of Main console structure Assembly
with PEPS antenna & wiring harness.
12.Open the clips and release the gear selection
cable.
13.Disengage the gear engagement cable end
from the gear shifter housing.
14.Disengage the gear selector cable end from the
lever by rotating the cable to one side and
prying it off in the direction that continues the
rotating motion.
