KRYOTEC ENGINE
120

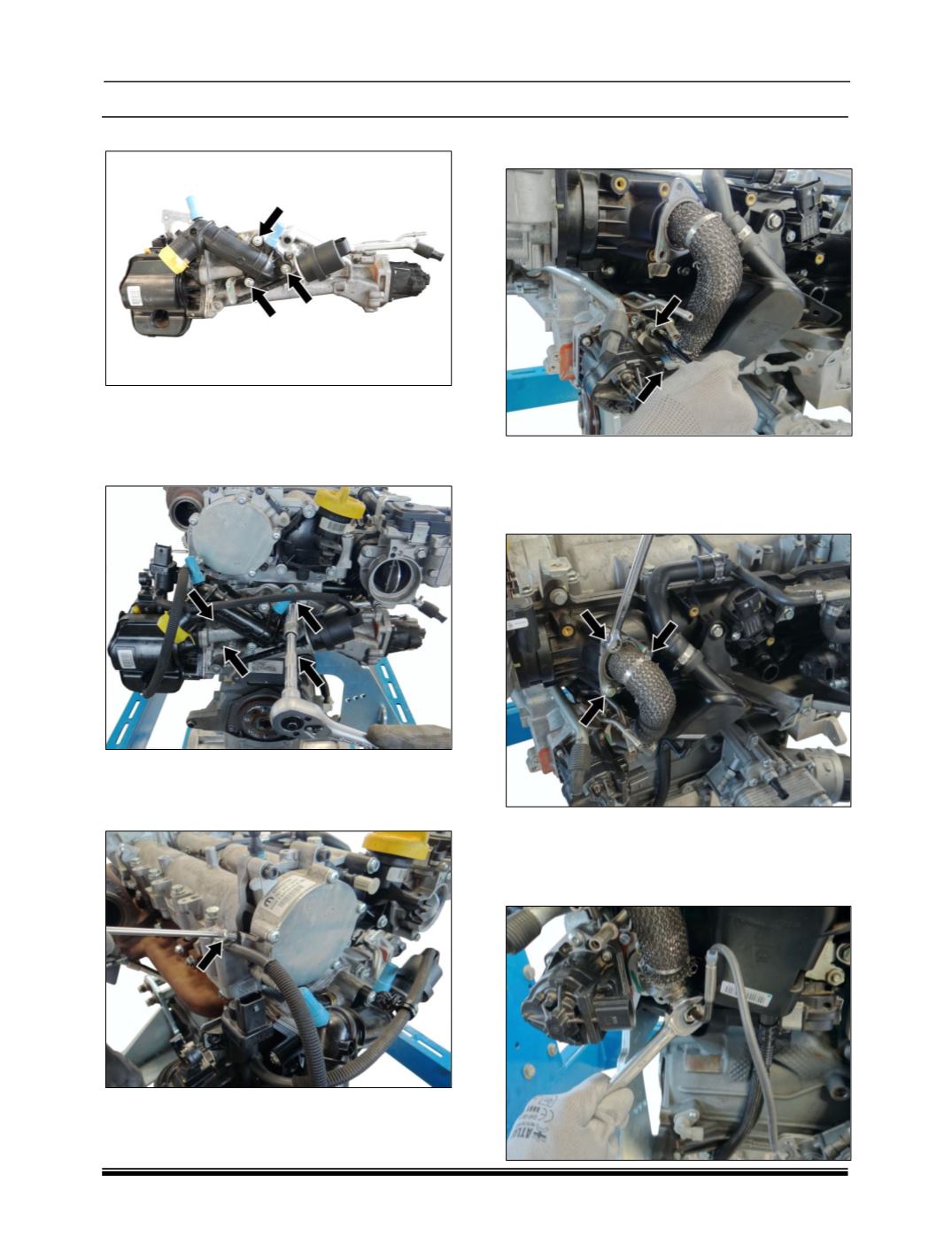

8. Install thermostat on EGR cooler assembly.
NOTE
Use new seal while installing.
9. Reconnect hoses to EVRV and thermostat and
install EGR cooler on engine.
NOTE
Use new gasket while installing.
10.Connect EVRV hose to vacuum pump.
NOTE
Use new o-ring while installing.
11.Connect the exhaust gas supply pipe at EGR
end.
NOTE
Use new gasket while installing.
12.Connect the exhaust gas supply pipe at intake
manifold end.
NOTE
Use new gasket while installing.
13.Install the exhaust gas supply pipe temperature
sensor.
