108 GY/R 0.75 (ALL)
CAB
108F GY/R 0.50 (ALL)
CAB
123A BR 0.35 (ALL)
CAB
123B BR 0.35 (L)
CAB
877 O/Y 0.35 (L)
CAB
377B L/P 0.35 (ALL)
CAB
878 Y/G 0.35 (L)
CAB
381D W/BR 0.35 (ALL)
CAB
889 L/R 0.35 (ALL)
CAB
141 P/G 0.35 (ALL)
CAB
888 W/G 0.35 (ALL)
CAB
123C BR 0.35 (ALL)
CAB
123 BR 0.35 (ALL)
CAB
FrontWash
Int Speed Selection
IGN SUPPLY
F12
10.0 Amps

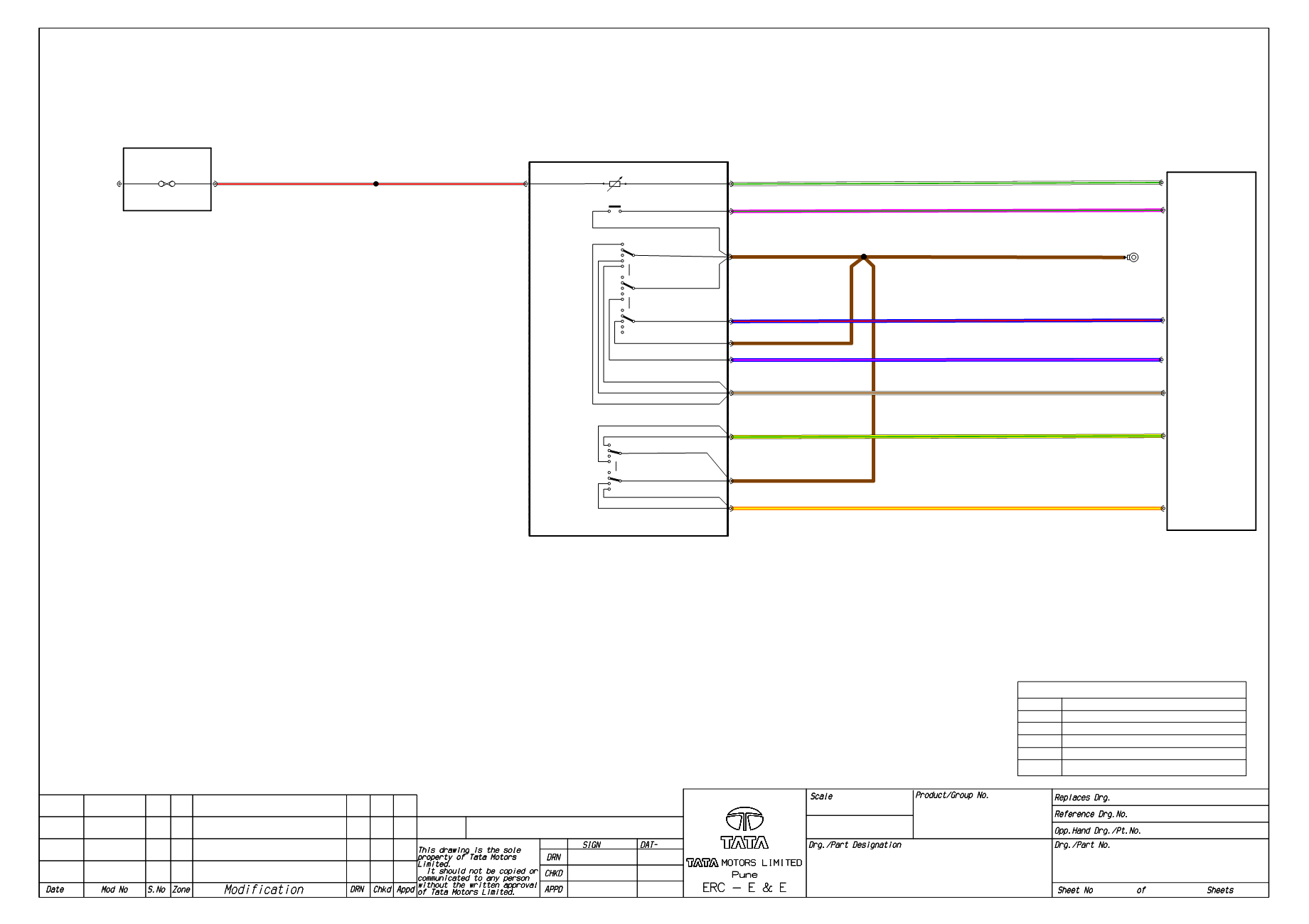

COMBINATION SWITCH RHD(WITH BCM)
HM 30.09
RP 30.09
TS 30.09
NR
C
B
A
14PP028135
14PP028120
14PP028093
14PP028073
08.10.18
24.08.18
12.06.18
11.06.18
SOP RELEASE
PP RELEASE
PO RELEASE
BETA II RELEASE
PHASE
DESIGN
PR IW TS
PR IW TS
PR IW TS
PR SK TS
DR4
PASSENGER COMP FUSE BOX1
SHEET 16
DISTRIBUTION
REFER POWER
FRONT WIPER
A3
41
70
Q501/Q502
13
FWOA
NTS
5412 5400 0007
OPTION CODE TABLE
FCA DIESEL BS-IV
REAR WIPER MOTOR WITH WASHER
NO PEPS
PEPS
ALL VARIANTS
DESCRIPTION
NK
L
EA
AR
ALL
OPTION
EA22
BODY CONTROL MODULE
Fast Wipe
Wash
Off
Rear Wiper
Rear Wipe/Rear Wash
Wash
Off
Rear Wipe
Rear Wipe/Rear Wash
Mist Wipe
Off
Int Wipe
Slow Wipe
Fast Wipe
Mist Wipe
Off
Int Wipe
Slow Wipe
Fast Wipe
C115X-4
C115X-3
S108
Mist Wipe
Off
Int Wipe
Slow Wipe
C132B-12 KL.15
C132B-14
BCM - WprRearModeSwitchSig
C132B-13
KL.31
C021A-13
WprRearModeSwitchSig
C132B-15
BCM - WashRearSwitchSig
C132B-6
BCM - WprFrntLowSpdSig
C132B-5
BCM - WprFrntSwitchSigInterm
C132B-4
BCM - WprFrntHighSpdSig
C132B-7
KL.31
C021A-12
WashRearSwitchSig
C021D-7
WprFrntLowSpdSig
C021D-19
WprFrntHighSpdSig
C021A-25
WprFrntSwitchSigInterm
C132B-8
KL.31
C132B-11
BCM -WprFrntSpdSwitchSig
C132B-2
BCM - WashFrntSwitchSig
S123
C021A-24
WashFrntSwitchSig
C021A-36
WprFrntSpdSwitchSig
