SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
20
SIDE AIRBAG
(SAB)
Side-impact airbags are located in the seats and
inflate between the seat occupant and the door.
These airbags are designed to reduce the risk of
injury to the occupant.
REMOVAL
NOTE
Side AIRBAG cannot be removed, as the Seat
Trim is not serviceable. Hence Seat has to be
replaced completely.
1. Disconnect the electrical connector.
2. Unmount the Seat from the vehicle.
3. Assemble the new Seat into the vehicle.
Front Seat (Co-Driver) Belt buckle
Front Seat (Driver)
ON VEHICLE SERVICE
REMOVAL / ASSEMBLY

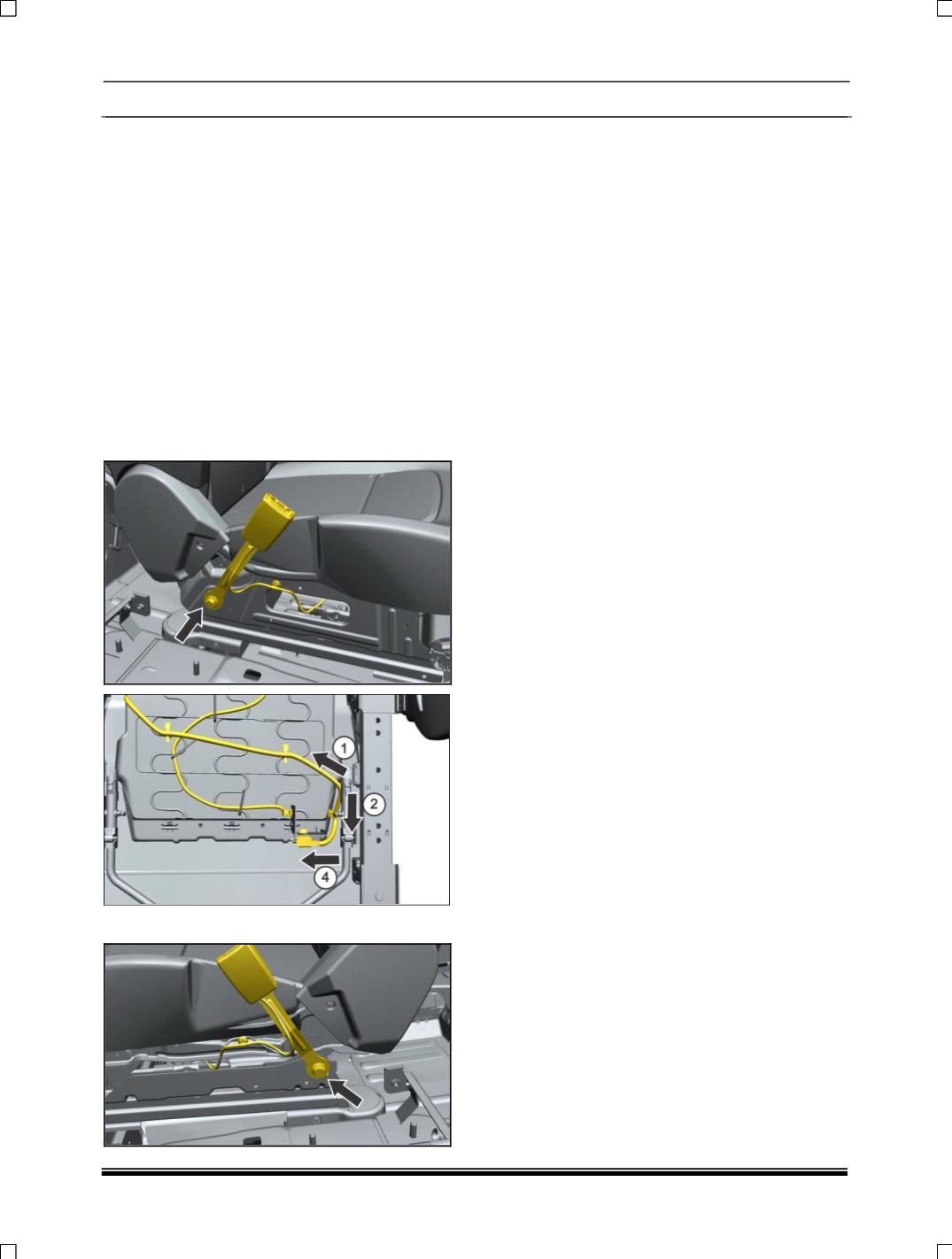

The front seat buckle are bolted on Seat
architecture inboard side. The tongue must
always be latched in the buckle while driving.
The wire harness on buckle must be fixed at 3
positions as shown in the images alongside
namely 1 ,2 and 3. The SAB connector must be
clipped at positon 4 as shown in image.
FITMENT
For fitment follow reverse procedure of removal.
NOTE
After fitment connect the diagnostic tool and clear
fault codes, if any.
