ELECTRICAL

292

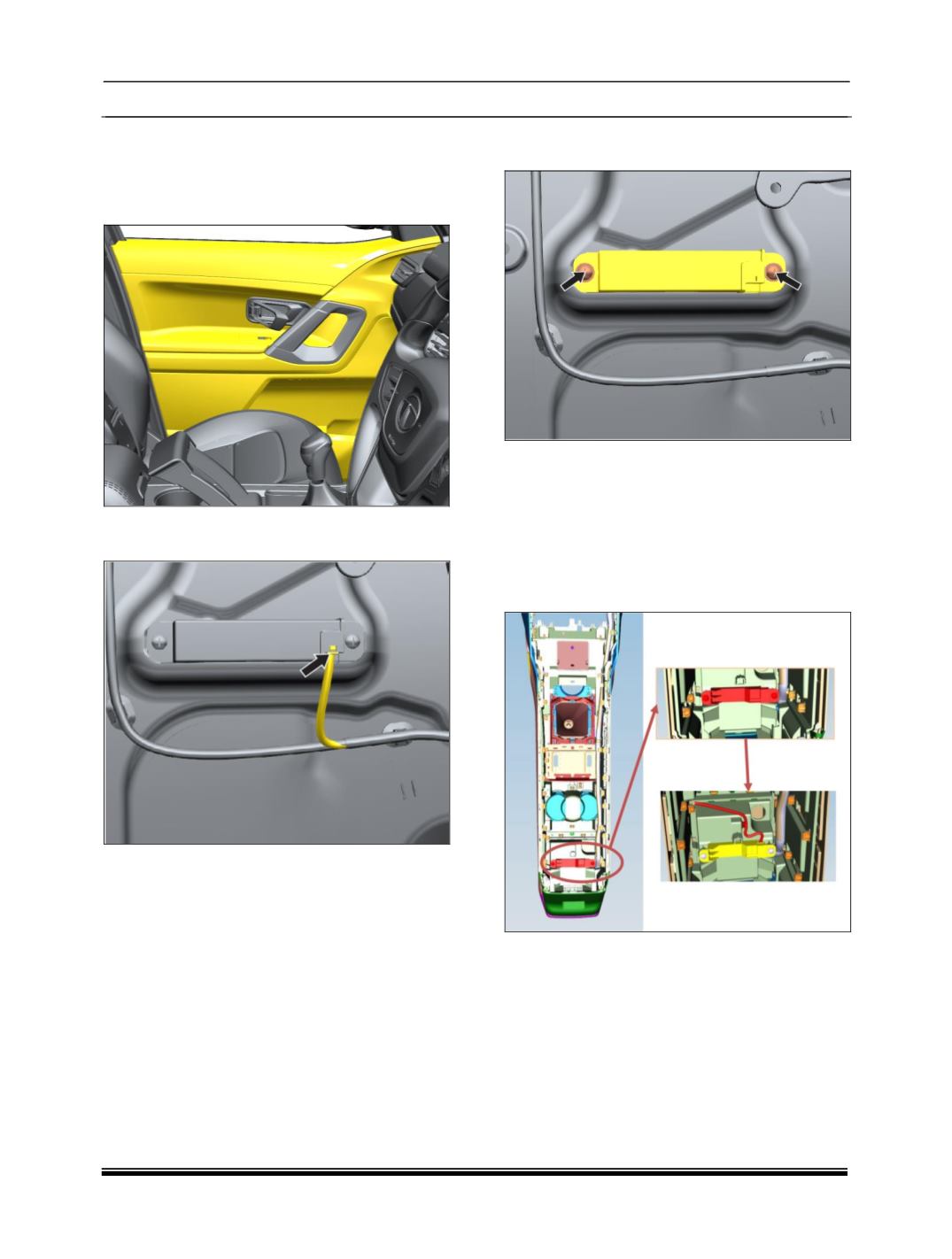

REMOVAL

A. RH rear door antenna.

1. Remove the door trims.

(Refer door trims

removal for the procedure in Body Section)

.

2. Disconnect the electrical connection to the LF

antenna.

3. Remove the mounting fasteners and take out

the LF antenna.

B. Centre console antenna.

4. Remove the arm rest and console (

Refer Body

Section for removal procedure).

5. Disconnect all the electrical connections to the

units on the console bin.

6. Remove the mounting screws and take out the

LF antenna.
