ELECTRICAL
276

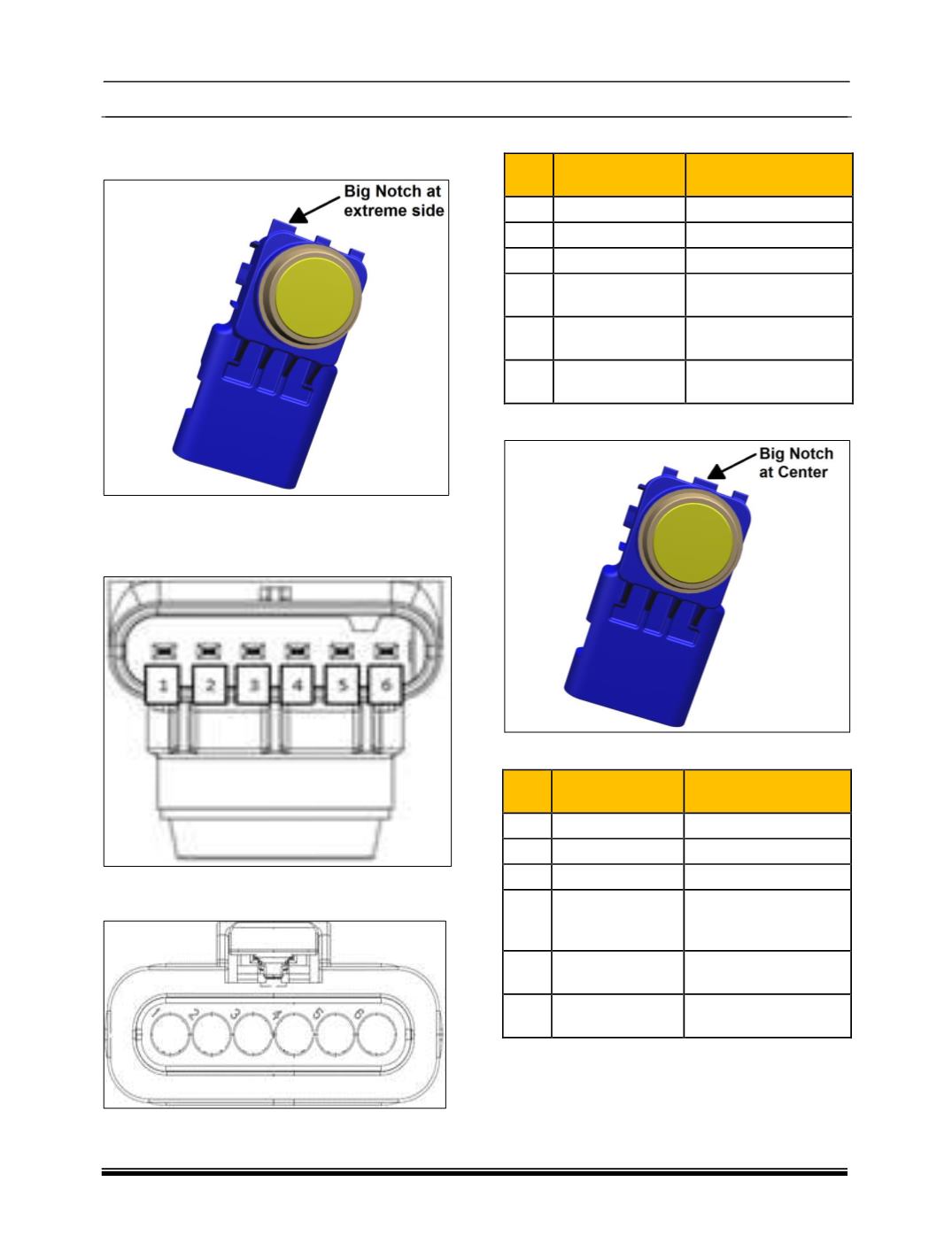

A. Sensor Connector Details
1. Master Sensor
"Master Sensor can be identified as above
image."
Parking sensor side connector – Mating View
Wiring harness side connector – Wire Entry
View
Pin details of Master RPAS Sensor:
Sr.
No.
Signal Name
Signal Descritpion
1
IGN
Ignition
2
LIN
LIN
3
GND
Ground
4
AD1CH (Slave 1
MAS Connect)
Master to Slave 1
sensor
5
AD2CH (Slave 2
MAS Connect)
Master to Slave 2
sensor
6
AD3CH (Slave 3
MAS Connect)
Master to Slave 3
sensor
2. Slave Sensor
Pin details of Slave RPAS Sensors:
Sr.
No.
Signal Name
Signal Descritpion
1
IGN
Ignition
2
NC
No Connection
3
GND
Ground
4
MAS
Master (Goes into
AD1CH, AD2CH ,
AD3CH)
5
Factory Setting
pin.
Do not connect -
Float
6
Factory Setting
pin.
Do not connect -
Float
