ELECTRICAL
62

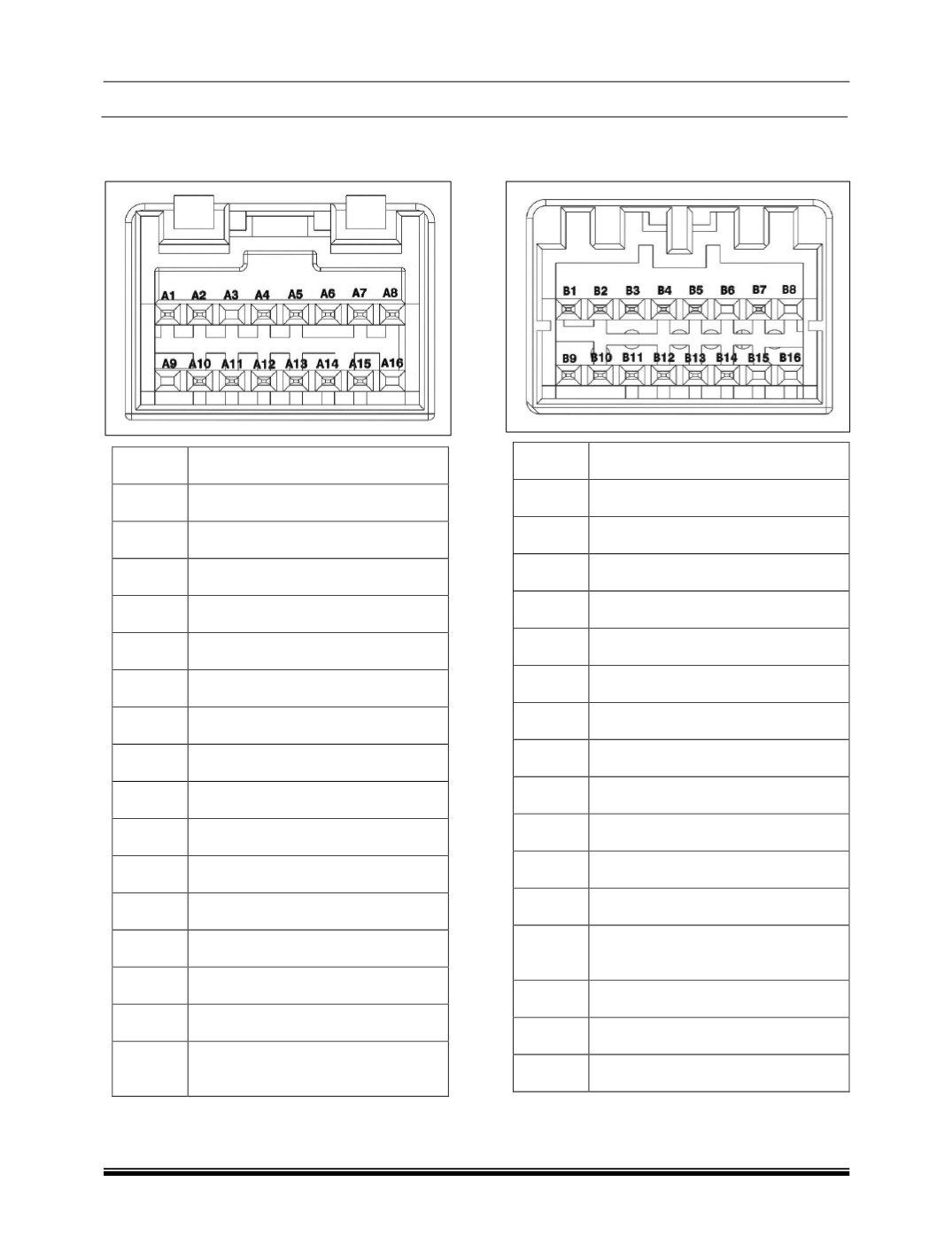

PINOUT DETAILS
a) Light Stalk connector
PIN
DETAIL
A1
DIP Beam terminal
A2
Feed for flash
A3
Blank
A4
MAIN Beam terminal
A5
LH turn
A6
RH turn
A7
Turn feed signal (GND)
A8
Lighting feed for HL relay
A9
Blank
A10
Head lamp to relay feed
A11
Ground
A12
Head lamp leveling
A13
Ignition feed
A14
Ground feed
A15
Parking light
A16
Blank (protected for auto head
lamp)
b) Wiper Stalk connector
PIN
DETAIL
B1
Ground
B2
In BCM pin connected to ground
B3
Front wiper ON/OFF relay coil
B4
In BCM pin
B5
Front wiper slow/fast relay
B6
Blank
B7
Front wash in put relay
B8
Blank
B9
Blank
B10
To wash pump relay
B11
Rear wiper ON
B12
Ground
B13
Ignition supply in case of BCM
version
B14
INT analog input to BCM
B15
Blank
B16
Blank
