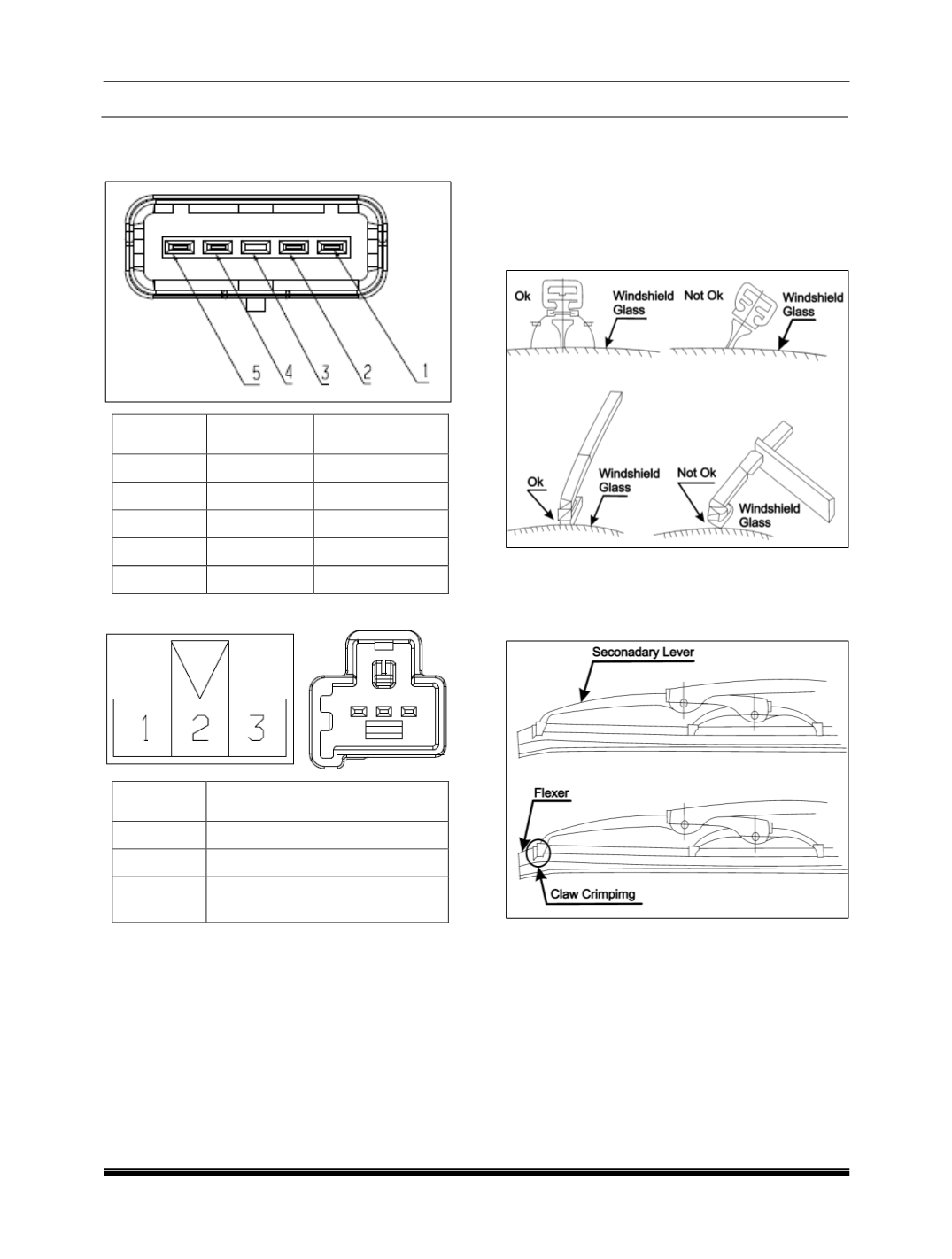

PINOUT DETAIL
FRONT WIPER
PIN
SYMBOL
FUNCTION
1
Hi
High
2
Lo
Low
3
B
Battery
4
P
Parking
5
E
Earth
REAR WIPER
PIN
SYMBOL
FUNCTION
1
E
-ve/Grnd
2
S
Wiper Motor
3
P
wiper+ve/self
parking
9.3 WIPER AND WIPER CARE
1. Wiper blade attack angle on wind shield glass
should be 90º i.e. perpendicular. Remove wiper
blade and rest wiper arm on wind shield glass
in the centre position. Check the gap between
arm strip and glass. Adjust by twisting wiper
arm.
2. Straighten the secondary lever & yoke, if found
twisted. Slide the flexer inside the rubber, if
found protruding out and crimp the claw to avoid
it from coming out again.
