639 / 948
ELECTRICAL
14

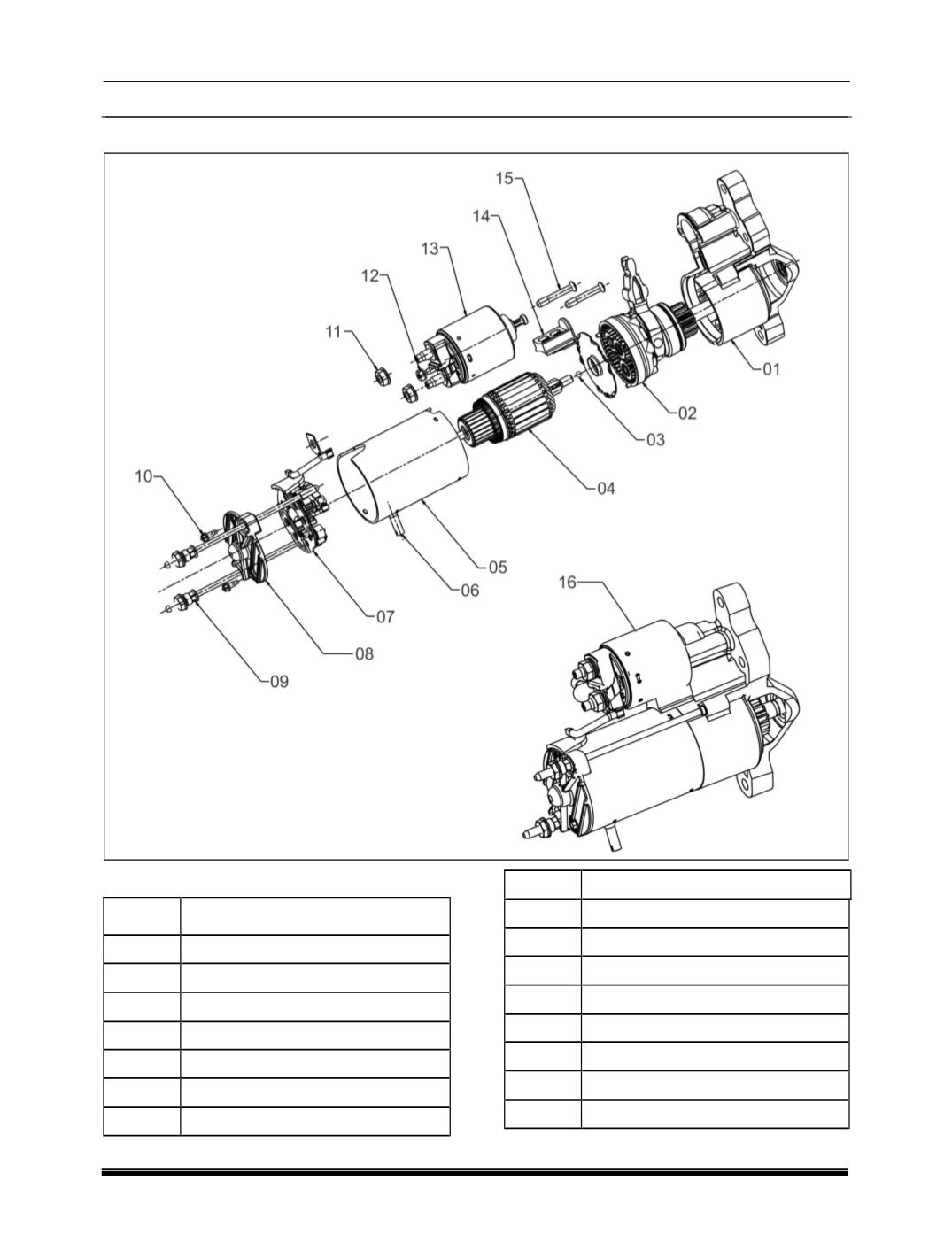

EXPLODED VIEW
STARTER MOTOR (PART LIST)
ITEM NO.
DESCRIPTION
01
HOUSING ASSY
02
DRIVE ASSY
03
THRUST BALL
04
ARMATURE
05
FRAME ASSY
06
DRAIN TUBE
07
BRUSH HOLDER ASSY
08
END PLATE
09
THRU BOLT
10
BRUSH HOLDER SCREW
11
BATTERY TERMINAL NUT M8
12
SOLENOID TERMINAL NUT -M5
13
SOLENOID ASSY
14
SEAL
15
SOLENOID SCREW
16
STARTER _ MOTOR _ 12V, 1.4KW
