BODY

61

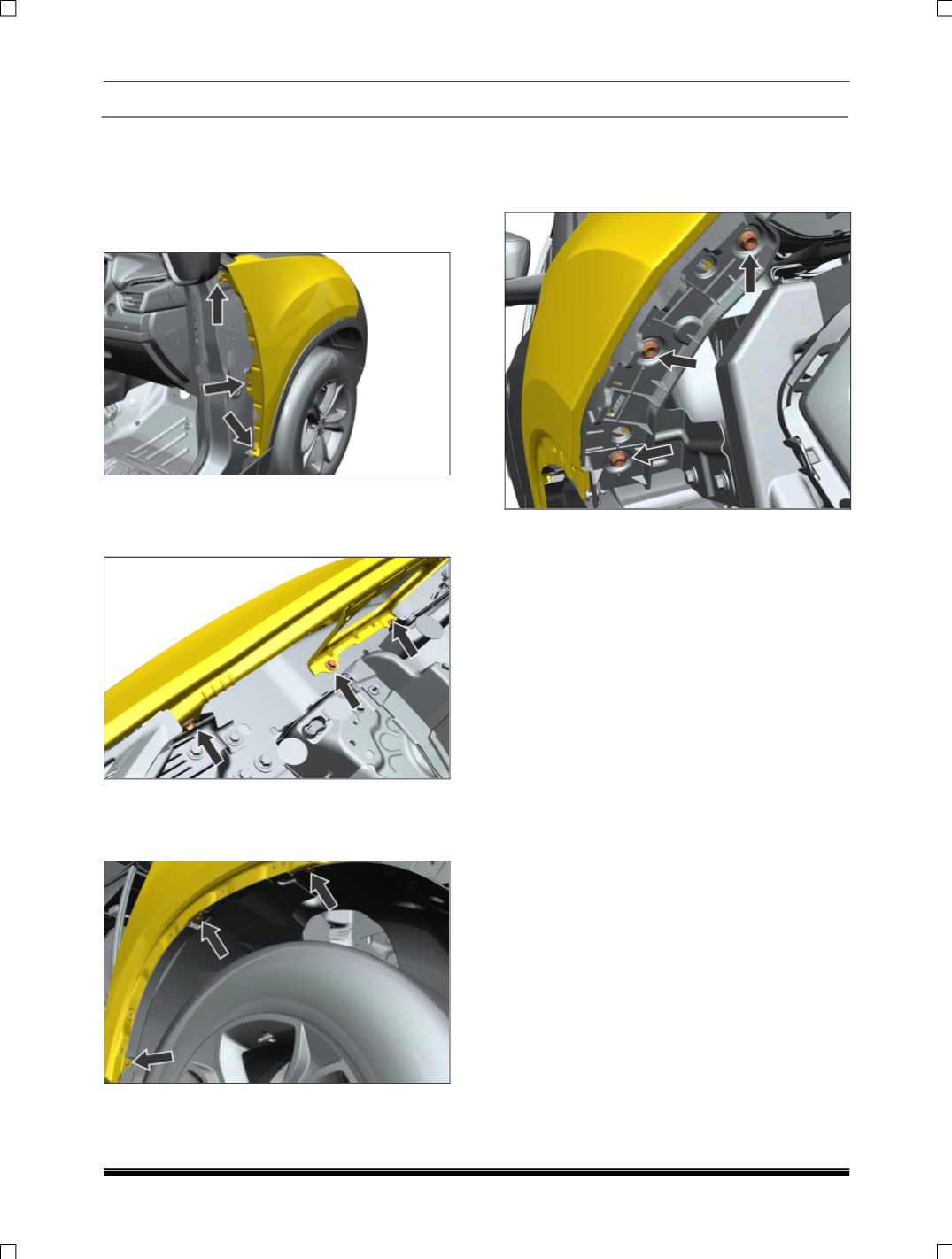

2.43 FRONT FENDER

REMOVAL

1. Remove front door. (For procedure refer front

door removal removal)

2. Remove fender mounting bracket bolt.

3. Open the Bonnet.

4. Pull out Side Plenum Cover Remove top

mounting screw.

5. Remove front wheel arch liner. (For procedure

refer front wheel arch liner removal process.)

6. Remove lower mounting screw.

7. Remove front Bumper. (For procedure refer

Front Bumper removal process.)

8. Loosen and remove top mounting screw as

shown in figure.

9. Remove front mounting screw as shown in

figure.

10.Remove front fender assembly.

FITMENT

For fitment follow reverse procedure of removal.
