Anti-lock Braking System(ABS)
11

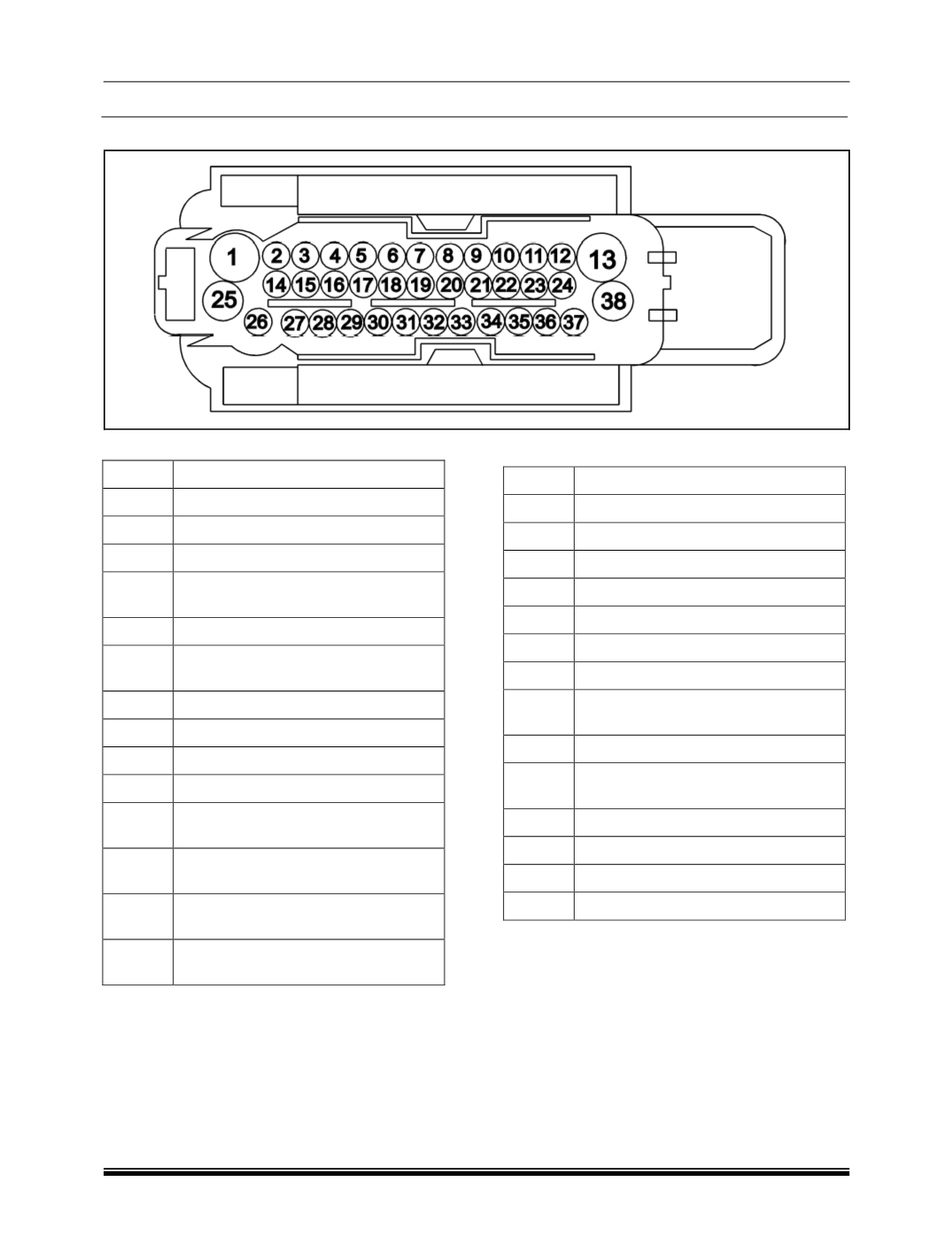

PIN OUT ABS ECU CONNECTOR (K2):
ECU Pin Details:
PIN NO. DESCRIPTION
1
Battery positive
2
VSO
3
EBD Warning Lamp
4
Front Right Wheel Speed Sensor
Signal
5 to 7
Not Used
8
Front Left Wheel Speed Sensor
Signal
9 to 12
Not Used
13
Motor Ground
14
CAN L
15
Not Used
16
Front Right Wheel Speed Sensor
Power
17
Rear Right Wheel Speed Sensor
Power
18
Rear Left Wheel Speed Sensor
Signal
19
Front Left Wheel Speed Sensor
Power
PIN NO. DESCRIPTION
20 to 21 Not Used
22
Not Used
23-24
Not Used
25
Valve Power
26
CAN H
27
Not Used
28
Ignition
29
Rear Right Wheel Speed Sensor
Signal
30
Brake Light Switch
31
Rear Left Wheel Speed Sensor
Power
32
Not Used
33
ABS Warning Lamp
34 to 37 Not Used
38
Ground
