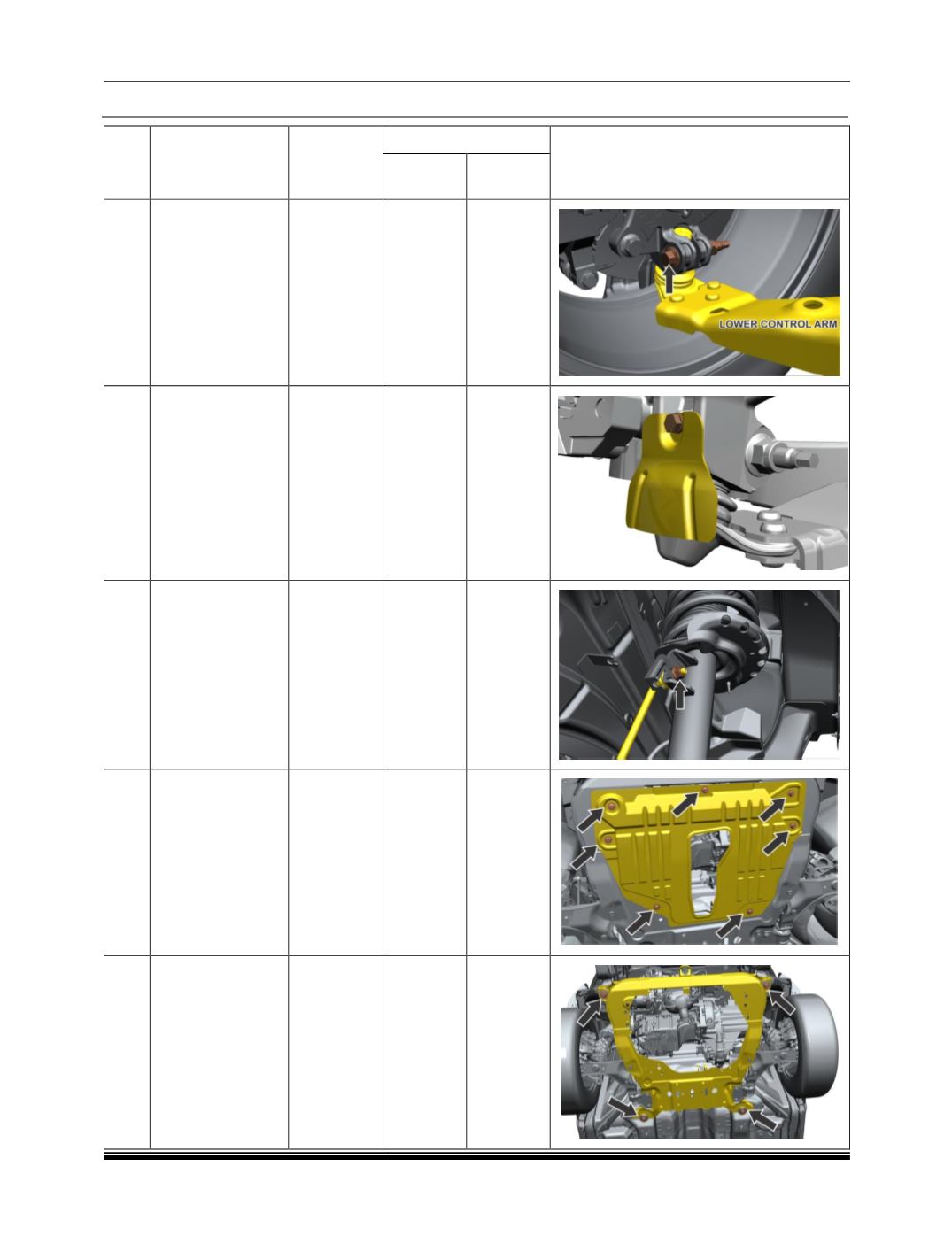

273 / 948
SUSPENSION
6
SR.
NO.
DESCRIPTION
FASTNER
TYPE
TORQUE (Kg-m)
LOCATION
SUNG
TORQUE
ANGLE
*6
*Knuckle to
Lower Ball Joint
Bolt mounting
HEX FL
NYLOC
NUT
M12x1.75
4.9 ± 0.7
180°±5°
6
LBJ heat shield
to knuckle
HEX
SCREW
M6X12
0.9 ± 0.05
7
Stab link
mounting on strut
HEX FL
NYLOC
NUT
M10X1.5
7.13 ± 0.5
-
8
ENGINE GUARD
UNDERBODY
HEX FL
SCREW
M10X18
4.6
-
9
SUBFRAME
ASSY
HEX BOLT
ASSY WITH
WASHER
M16X2X105
14 ± 1
240°±5°
