DRIVESHAFT
14

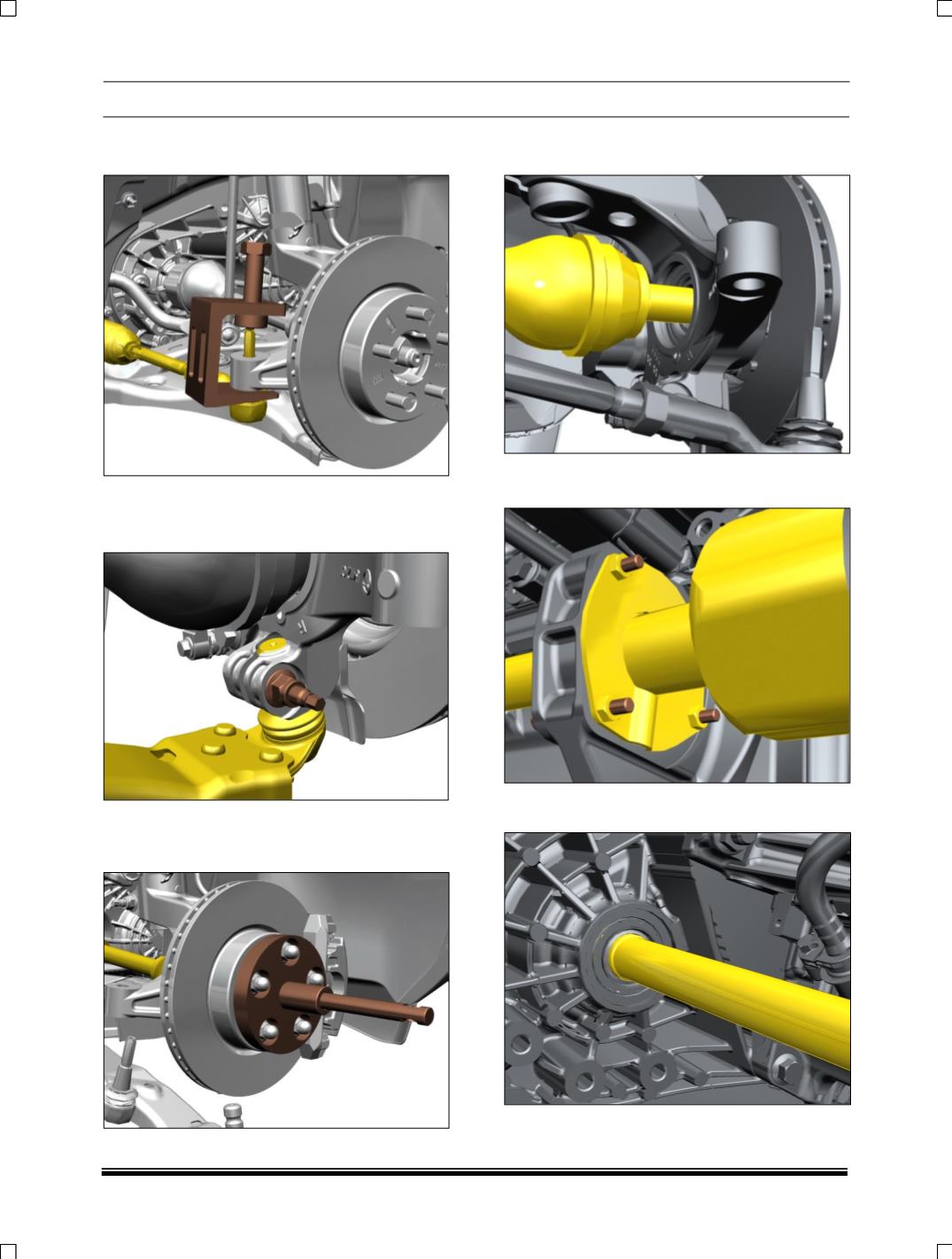

8. Using tool part no. 541258904601 remove Tie
rod ball joint from knuckle.
NOTE:
Use hook to hang tie rod ball joint.
9. Remove knuckle to LCA Mtg. & Remove
Lower Control Arm (LCA).
10. Assemble
driveshaft
removal
tool
(541258903301) on wheel hub with the help
of wheel nut.
11. Remove driveshaft from knuckle end by
rotating special tool rod.
12. Remove Intermediate shaft bearing mounting
bracket.
13. Take out drive shafts from gearbox end &
take out driveshaft from vehicle.
