13. Wheel Arch Carpet :
Removal :
1. Remove the assembly luggage compartment
carpet for easy removal of trunk lid sill cover.
2. Remove the trunk lid primary seal just enough
to remove the wheel arch carpet.
3. Remove the trunk lid sill cover so that wheel
arch carpet can be removed.

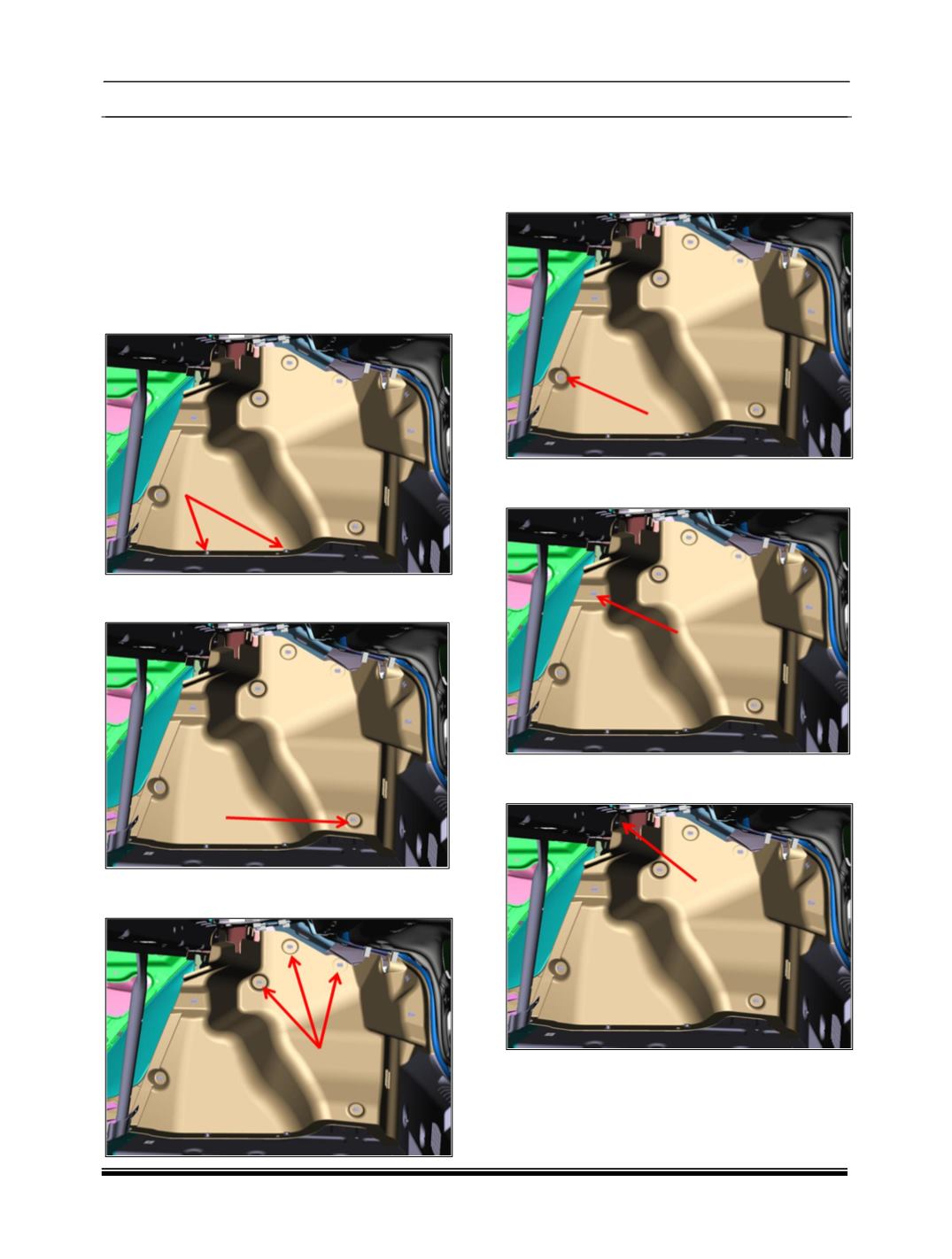

4. Remove the serviceable clips from location as
shown to remove the carpet locally.
5. Remove the serviceable clips from location as
shown.
6. Remove the serviceable clips from location as
shown.
7. Remove the serviceable clips from location as
shown.
8. Remove the serviceable clips from location as
shown.
9. Remove the serviceable clips from location as
shown.
