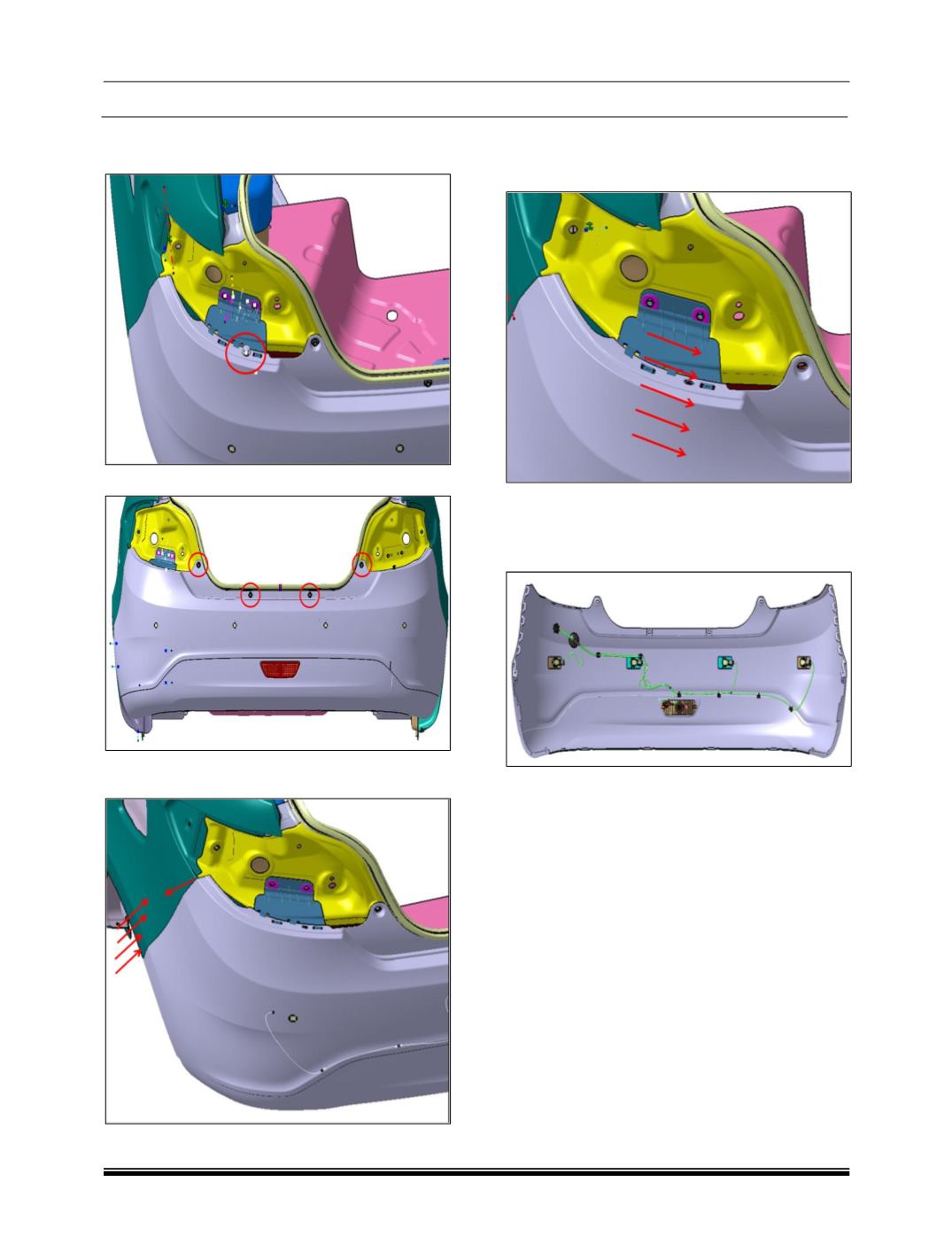

7. Remove the corner bracket 1 trim clip
mounting with rear bumper.
8. Removing top 4 mountings of rear bumper.
9. Remove the rear bumper from side bracket by
pulling. (Pulling start from bottom to top side)
10. Remove the rear bumper from corner bracket
by pulling. (Pulling start from bottom to top
side)
11. Hold the rear bumper assembly properly and
remove. Take care that the trunk lid seal is
removed for easy removal of bumper.
12. Disconnect the electrical connections.
Re-fitment :
Carry out the removal process in reverse
order in appropriate sequence for re-fitment of
bumper.
