BODY
23

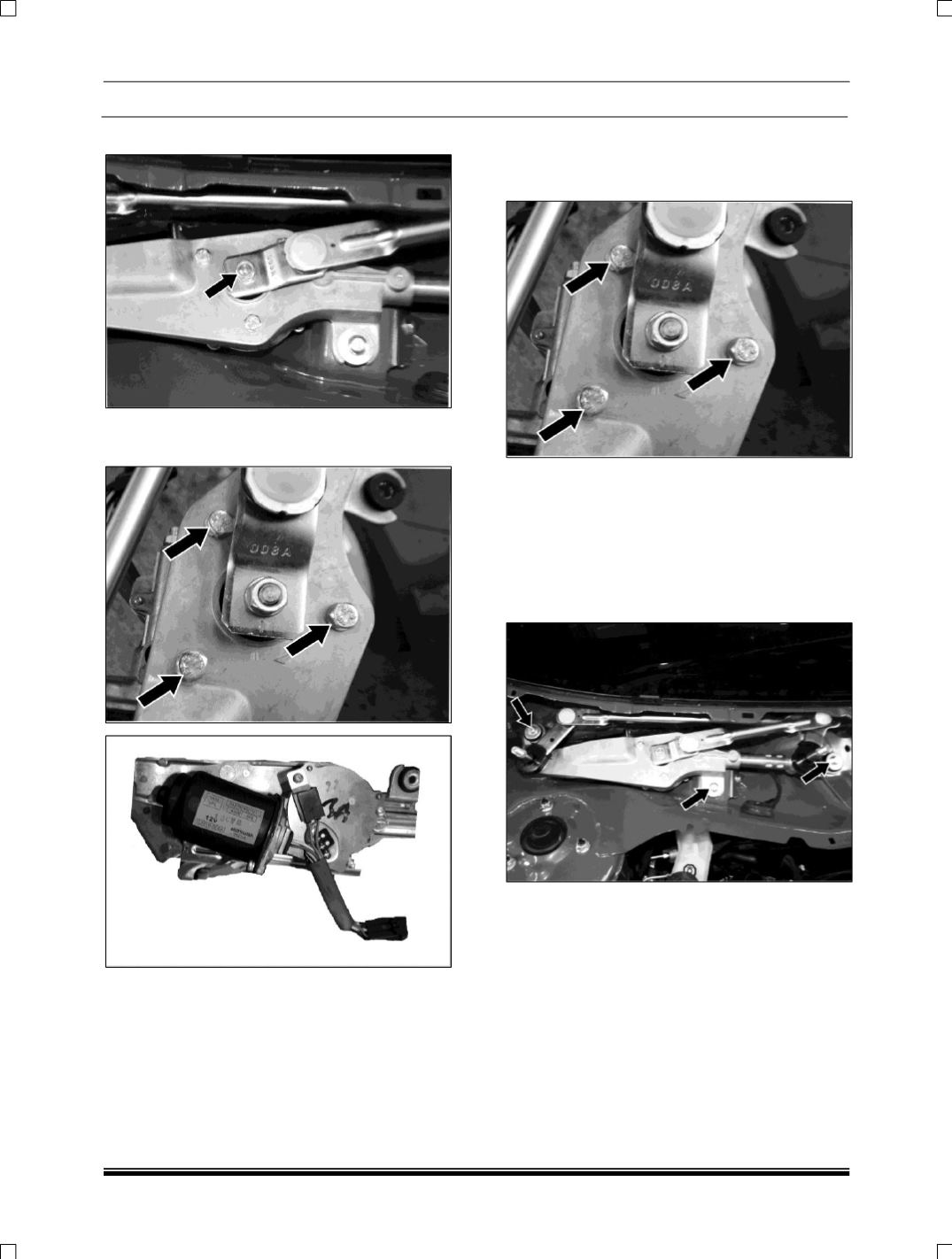

9. Unscrew the fastener and dismantle the link.
10. Unscrew the three fasteners to remove the
wiper motor.
REFITMENT OF FRONT WIPER
1. Tighten the fasteners of the wiper motor and
the links.
2. Tighten the fastener of the link motion
assembly
3. Connect the wire harness connection.
4. Tighten the mounting fastener of wiper motor
linkage
5. Fix the cowl cover
6. Tighten the wiper blade mounting fastener.
7. Fix the wiper blade cover.
8. Fix the wiper mechanism cover and tighten it.
9. Fix the packing on LH and RH side.
NOTE:
Position the wiper over the tow marks on the front
windshield and then assembly at as per the
refitment producer
