STEERING
1
8.1 GENERAL INFORMATION
8.1.1 SPECIFICATIONS
TYPE
Column mounted Electrical power assisted steering system with,
mechanical Rack and Pinion steering gear with collapsible and till
type steering column.
STEERING WHEEL 4 Spoke & 360 mm Dia.
STEERING WHEEL TURN 3.07
STEERING RATIO 15.89 : 1

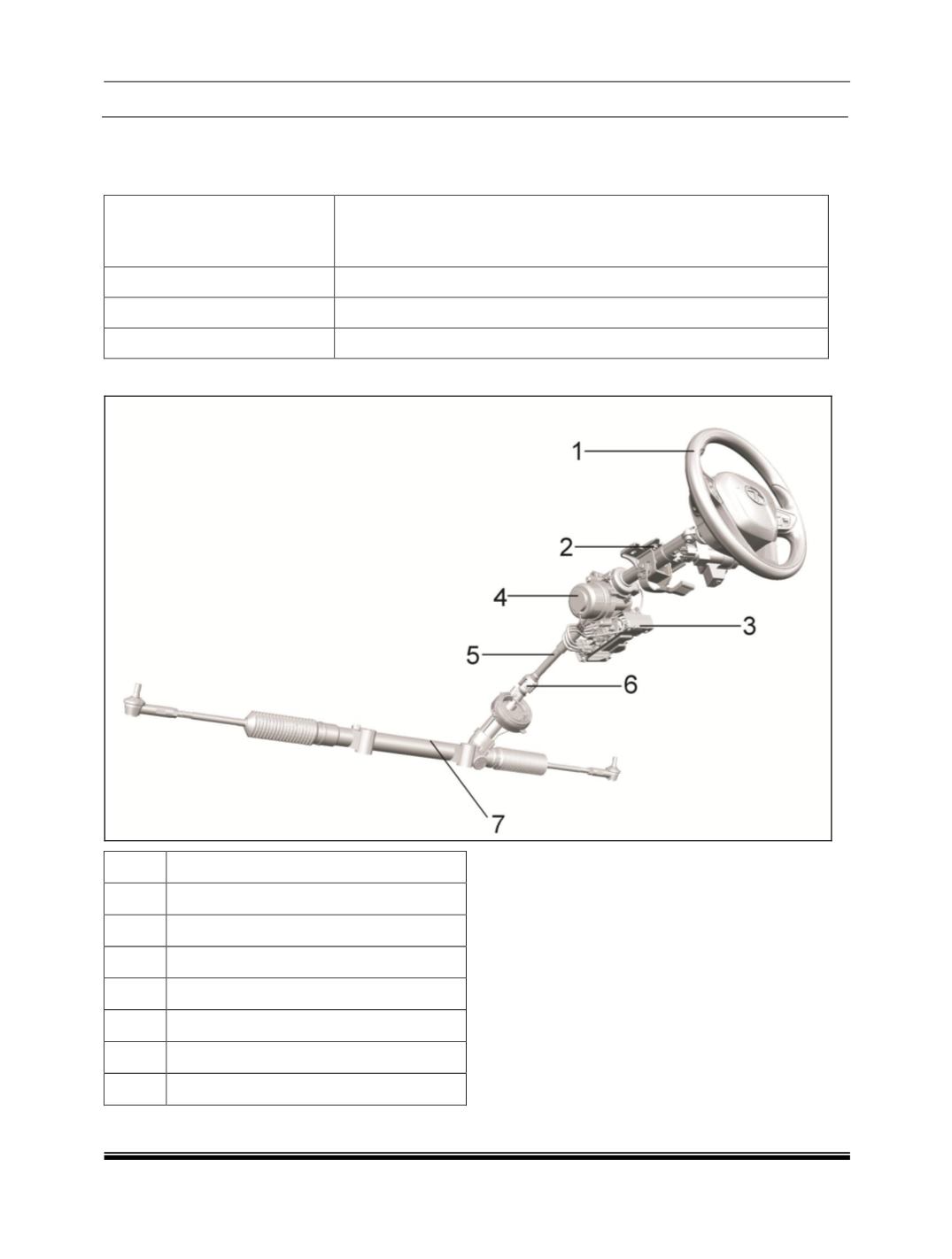

8.1.2 SYSTEM LAYOUT
. DESCRIPTION
1 Steering wheel
2 Steering column
3 ECU
4 Motor Unit
5 Intermediate shaft
6 Universal Joint
7 Mechanical Rack and pinion assembly.
