SUSPENSION
27

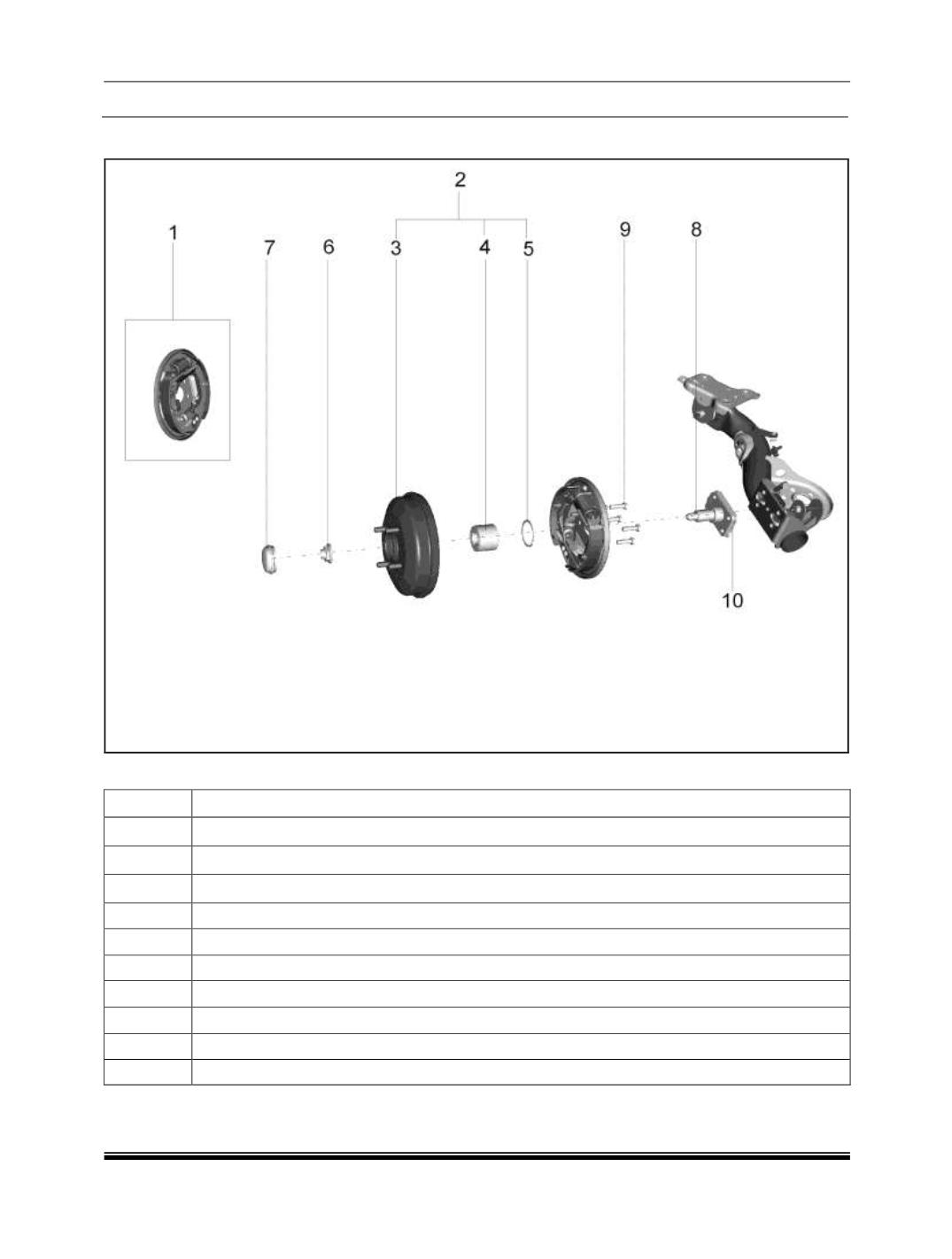

B) REAR HUB ASSEMBLY EXPLODED VIEW
(Rear Hub Assembly)
SR. NO.
DESCRIPTION
01
ASSY REAR BRAKES
02
ASSY BRAKE DRUM COMPLETE
03
ASSY.REAR BRAKE DRUM WITH PIN
04
ANGULAR CONTACT BALL BEARING
05
INTERNAL CIRCLIP 58X2N
06
LOCK NUT
07
HUB COVER
08
SINTERED SPACER
09
HEX BOLT M10X1.25X35
10
SPINDLE
