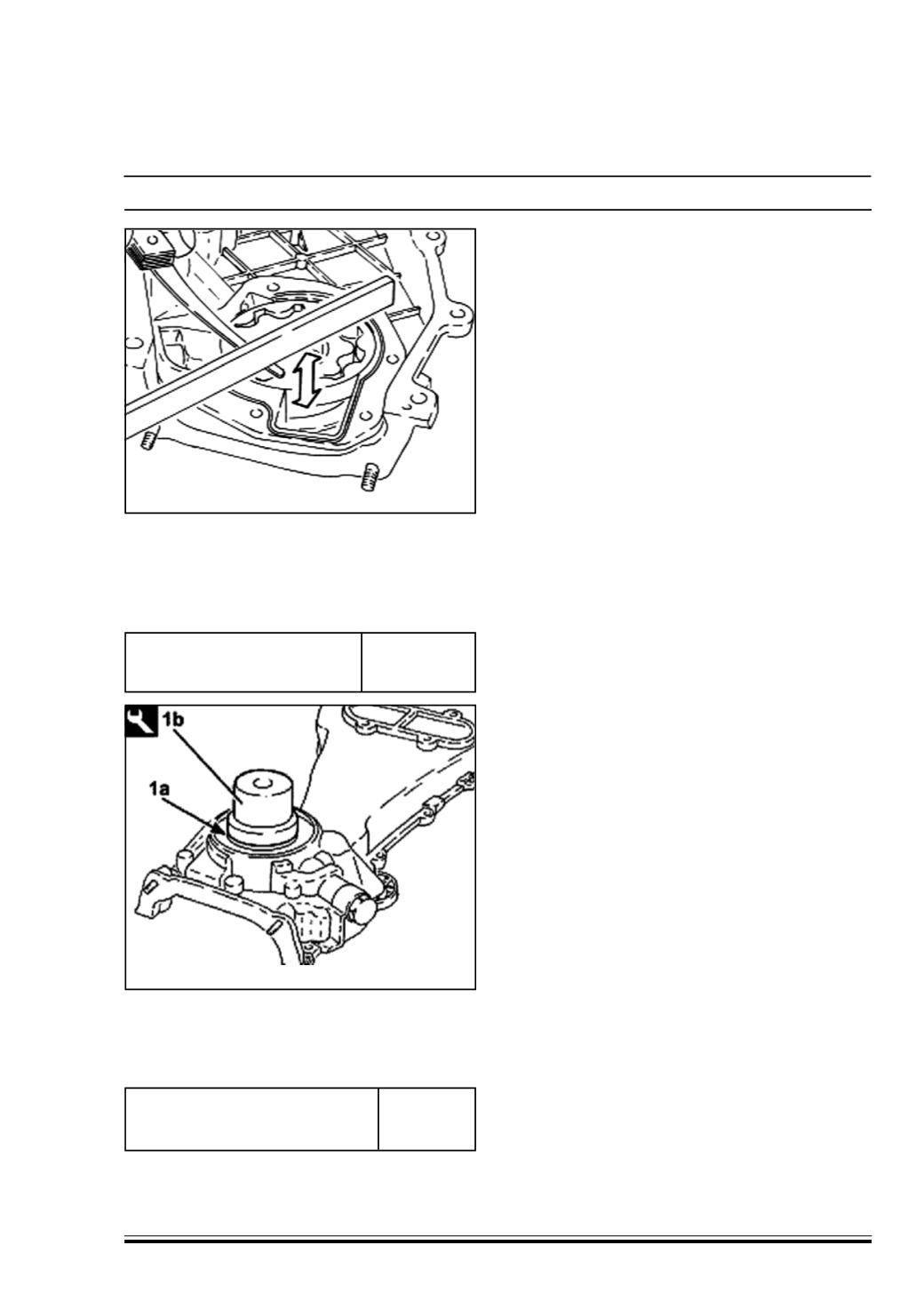

8. Check that the axial clearance between the pump
cover support plane and the top of the gears is
within the recommended values of 0.025mm ~
0.075mm; if this is not the case, replace the oil
pump assembly.
End float between the pump
casing support plane and the 0.025 ~ 0.075
top of the gears (mm)
9. Check that the height of the oil pressure relief valve
spring is within the recommended value of 36mm
(with a test load as given below); if not, replace the
spring.
Height of engine oil pressure relief
valve spring with test load of
36.0
5.44-6.02 daN (mm)
10.Fit the crankshaft front oil seal (1a) using the
tool
287158900629 (Fitting Tool) (1b).
11.Place the driven gear in position.
12.Place the drive gear in position.
13.Fit the oil pump cover in its housing and tighten
the bolts.
14.Position the intake duct complete with gasket in
its housing and secure it using the bolts.
15.Place the oil pressure relief valve in position and
tighten the cap.
NOTE :
Manually rotate the gears to check that they turn
without sticking.
16.Drill and remove the water/oil sealing plugs from
the crankcase to allow for washing the ducts.
