ENGINE 1.3 QUADRAJET (75PS)
81
1. Drain fuel tank into an approved container refer
procedure as mentioned in fuel tank removal.
2. Ensure that the car is parked on level surface.
3. Add less than 6 liter of fuel and turn the ignition
switch ON.
4. The low fuel warning light should come on within 2
sec.
a) If light comes on go to step 5.
b) If light does not come ON or only comes ON dimly
check wiring. If OK, remove combination meter
and check bulb. If bulb is OK, replace fuel level
sensor.
5. Add fuel so that the total fuel will be more than 8
lit and check that the light goes OFF.
a) If light does not go OFF, check for short circuit in
the wiring harness. If no short circuit, replace fuel
level sensor.
b) If light goes OFF , turn the key OFF . Test is
complete.

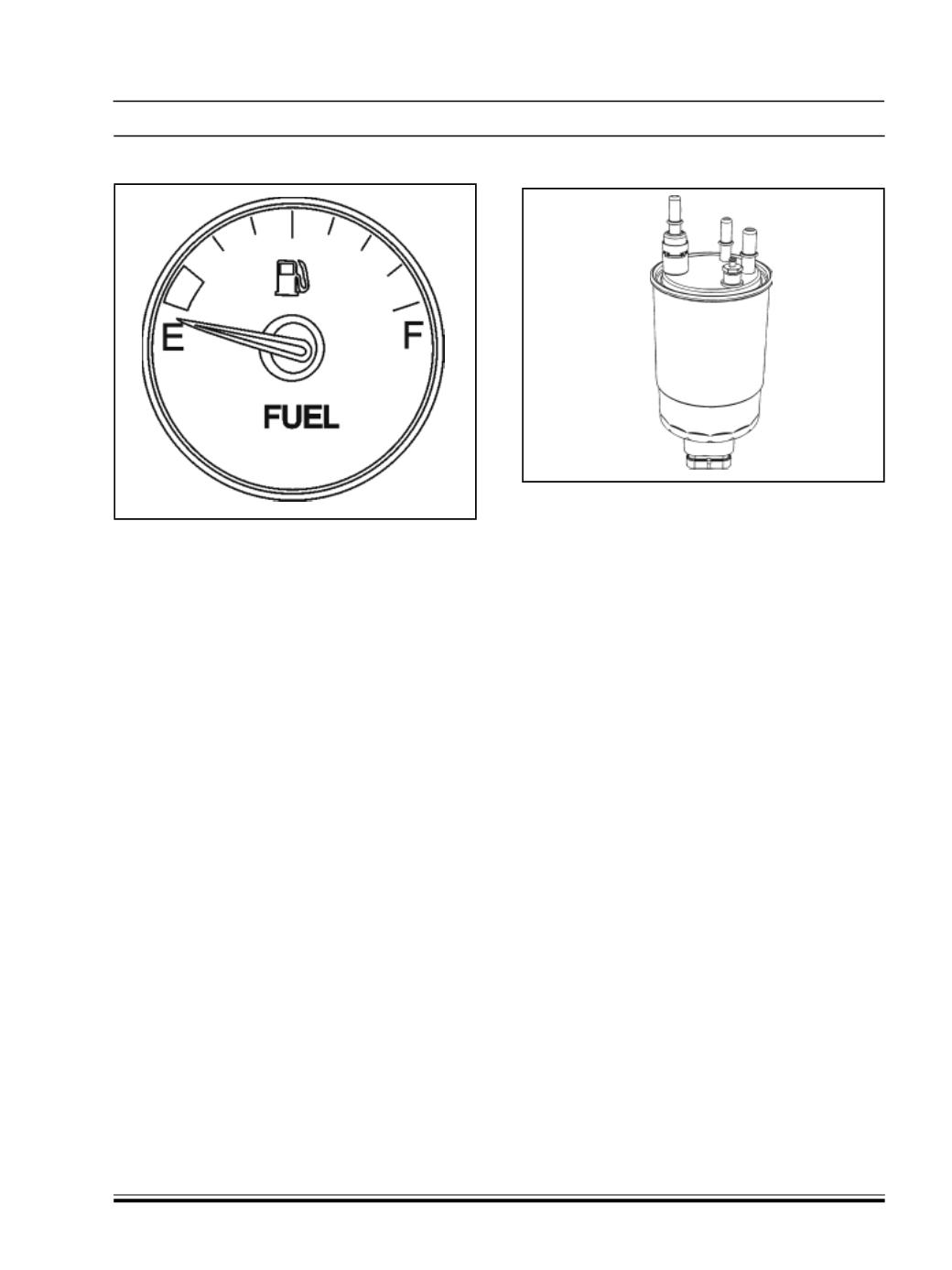

E. FUEL LEVEL WARNING LIGHT :
FUEL FILTERMAINTENANCE :
Q
Replace the filer element regularly at
recommended intervals.
Q
Replace the filer element regularly at
recommended intervals.
Q
Use clean Cloth of wiping the component s. DO
NOT USE COTTON WASTE.
Q
Remove water from Bleed valve on top face of
filter. Refer Engine manual for procedure.
Q
Vent air from the system after replacement of filter
element.
Q
always use ONLY recommended and genuine fuel
filter cartridge.
F. FUEL FILTER
