Revotron 1.2T
89

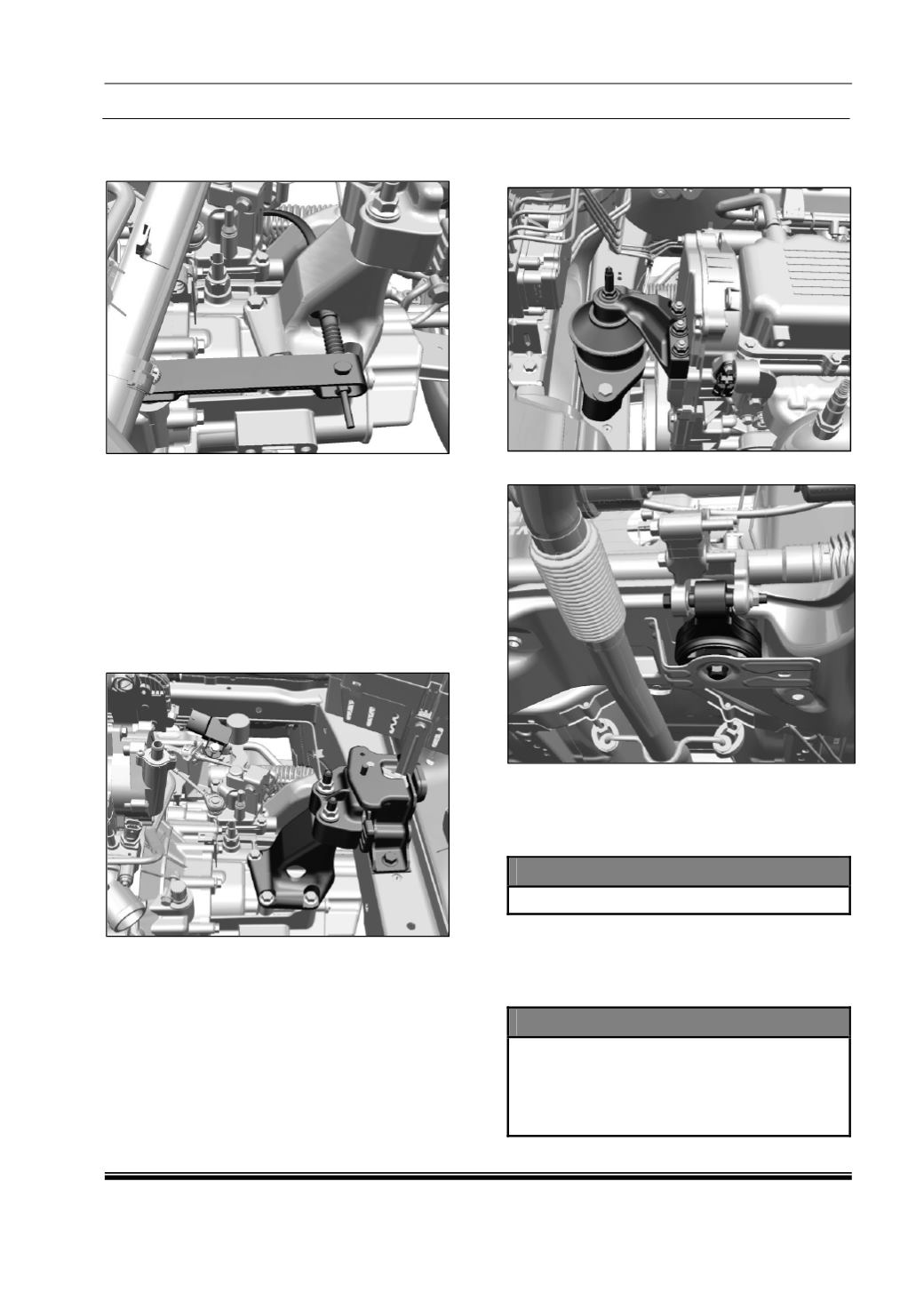

17. Disconnect the clutch cable connection from
the transaxle.
18. Remove front two tyres.
19. Disconnect the left and right drive shafts from
the vehicle.
20. Use suitable belt/chain to fix a zip crane to the
engine lifting hooks located at front and rear
of the engine.
21. Raise the crane slightly up until very light
pressure is applied to the engine.
22. Remove the nuts on Engine 'B' mounting
bracket.
23. Remove the “A”- mounting bracket nuts
(3 nos).
24. Remove the “C” mount bracket.
25. Now move the two post lift upwards and place
the support stand, under the engine. (Use a
suitable wooden block or other support for
additional height as necessary.)
SPECIAL TOOL
•
Engine Support stand -: 2702 5890 24 01
26. Now slightly lower the lift until , engine and
transaxle assembly is securely placed / fix on
the support stand.
27. Disconnect the lifting crane from the engine.
CAUTION
•
Use care when raising the vehicle off the
engine and transaxle assembly. Verify all
components and electrical connections are
disconnected prior to raising the vehicle, or
vehicle damage occur.
28. Now carefully move the lift up.
