1.3 REVERSE LAMPS

1.3.1 Description

The reversing lights are used to illuminate the rear end of the vehicle when in reverse gear.

1.3.2 Conditional Requirements

Activation –

• IGN is ON &

• Reverse Gear is activated

Deactivation –

• IGN is OFF or

• Reverse Gear is deactivated

On Fault –

BCM logs respective DTC.

1.3.3 Operating Voltage Range

DESCRIPTION

REQUIREMENT

VOLTAGE

Reverse Lamps Normal operating voltage

12V

Min & Max operating voltage range

9V-16V

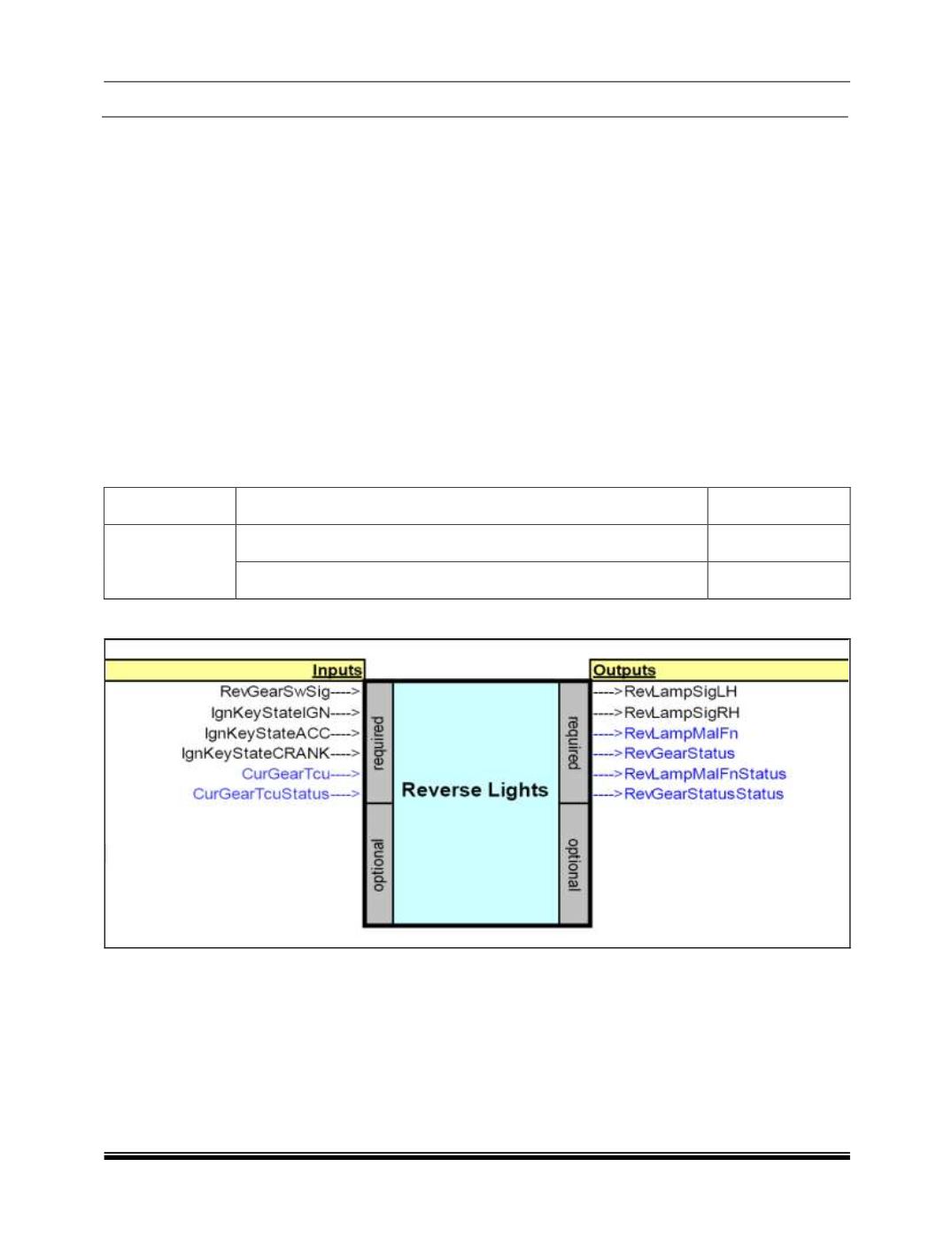

1.3.4 Inputs & Outputs
