ELECTRICAL
42

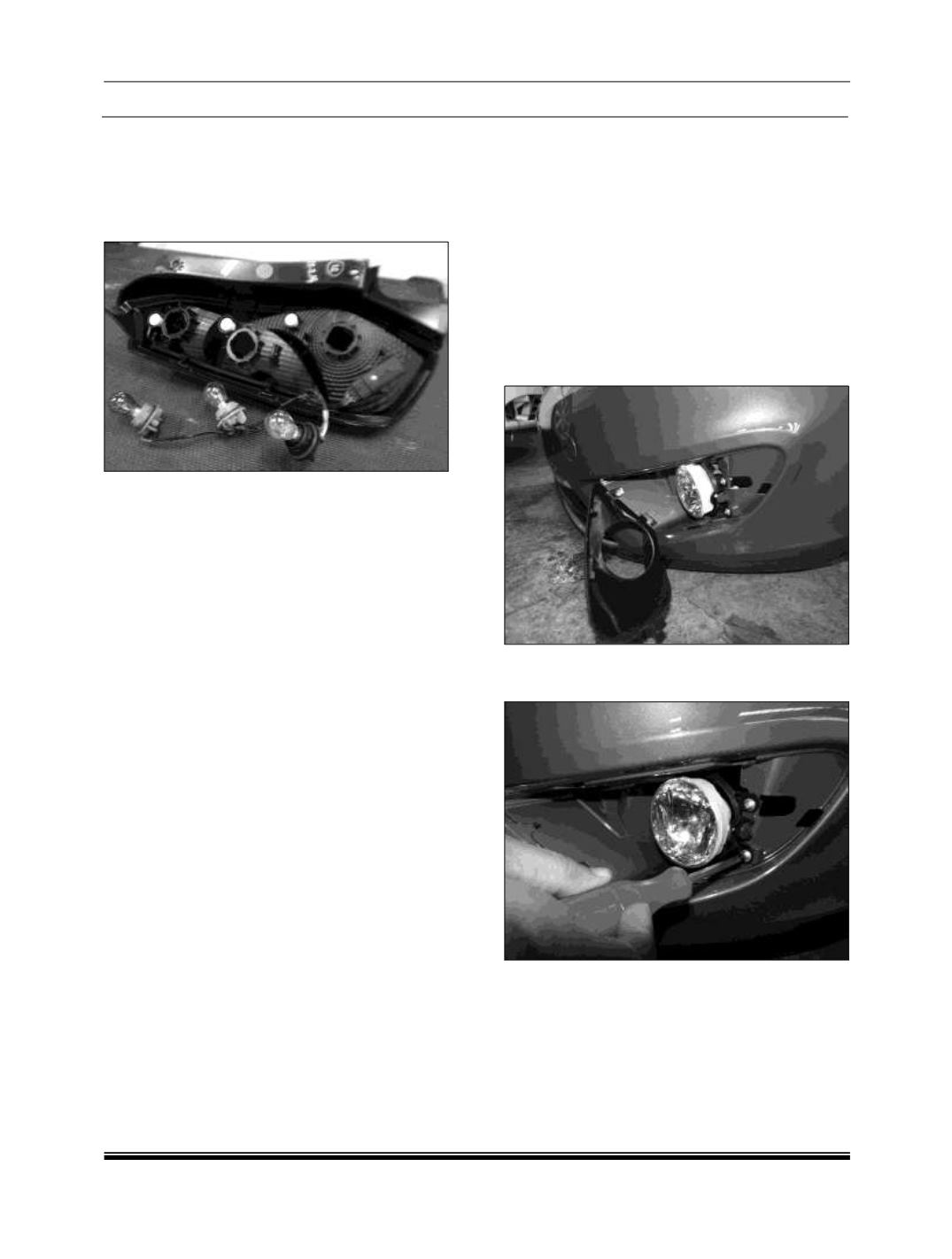

5. Replace the bulb any of three.
1. Turn indicator
2. Reverse
3. Tail/Stop light
6. Install the bulb and tail lamp in the reverse
order of removal process.
12.8.9 FRONT FOG LAMP
The fog lamps are located in the lower part of the
front bumper. The bulb used for the fog lamp
function is a halogen H16 bulb, 12V - 19W.Fog
lamp on/off is done by using master light switch.
REMOVAL:
1. Remove the front bumper. (Refer Body
section)
2. Disconnect the electrical connection of fog
lamp.
3. Remove the fog lamp bezel.
4. From the front side of bumper remove the 4
mounting screws of fog lamp assembly.
5. Take out fog lamp.
