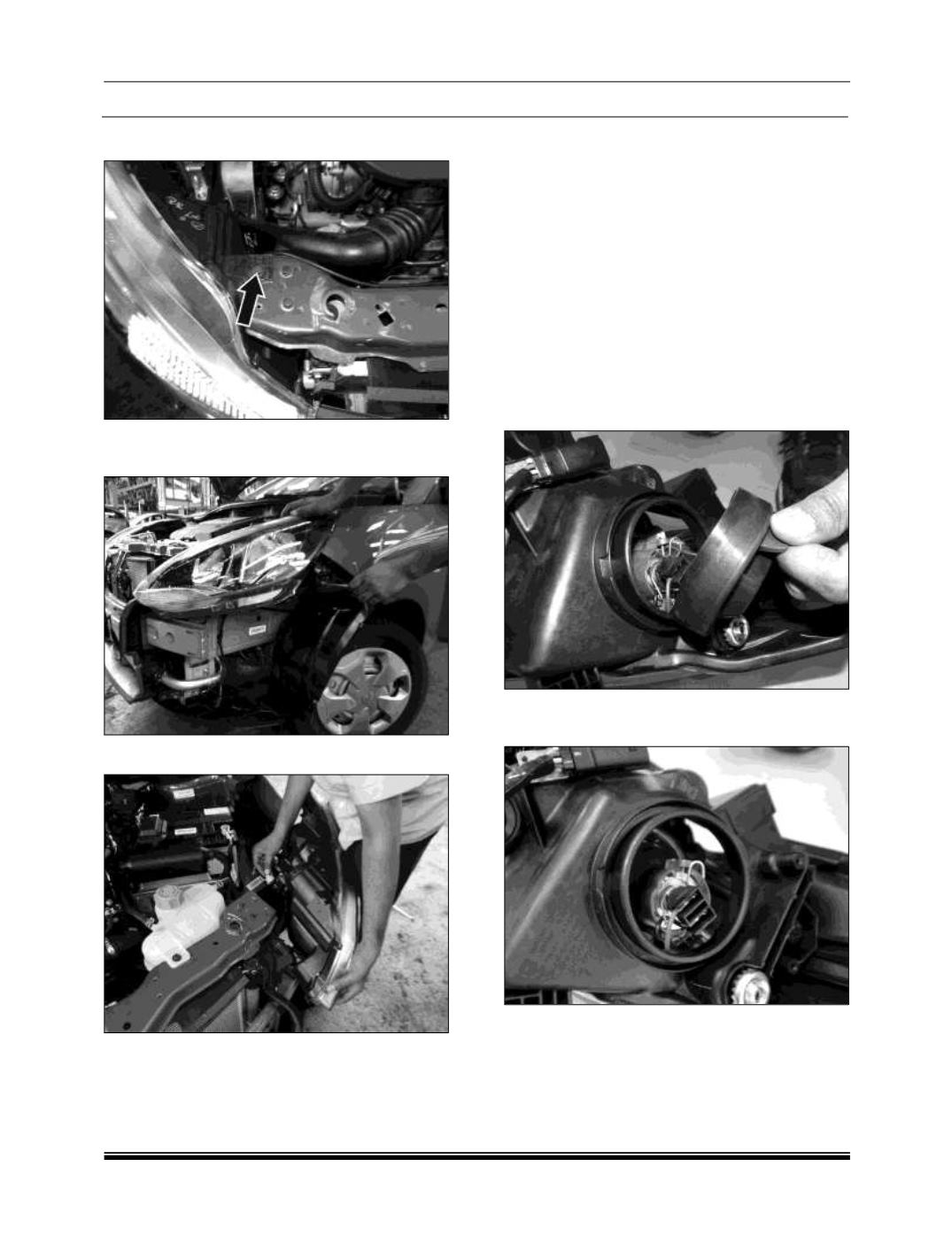

4. Loosen head lamp two top mounting fasteners.
5. Loosen head lamp "Inner Mounting" & side
fastener.
6. Hold head lamp properly and remove it.
REFITMENT:
1. Position head lamp to its proper place.
2. Refit head lamp Inner fastener. (One No.)
3. Refit head lamp top fasteners. (Two No.)
4. Connect head lamp connection.
5. Refit front bumper.
REMOVAL & REFITMENT OF HEAD LAMP
BULBS:
1. Open engine hood & ensure all lamps in OFF
condition.
2. Remove high beam & position lamp press fit
cover.
3. Disconnect motor connection (if required) &
lamp connection.
