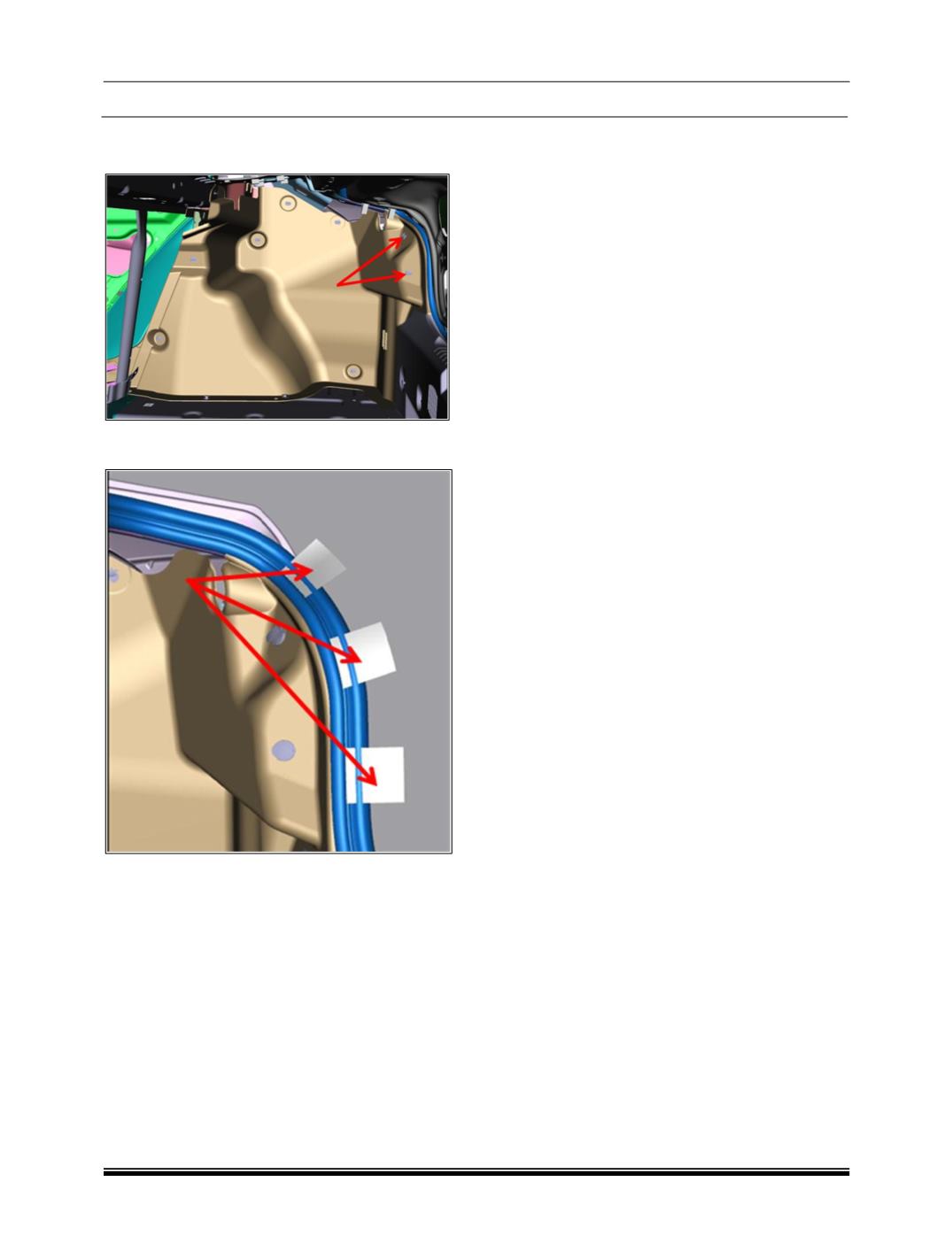

10. Remove the serviceable clips from location as
shown.
11. Remove the DSA tape used in tail lamp panel
BIW to remove the carpet locally.
12. Take out the carpet wheel arch LH/RH
through trunk lid opening and position over
BIW gently avoiding twists, wrinkles, many
folds.
Re-Fitment :
Carry out the removal process in reverse
order in appropriate sequence for re-fitment of
Wheel arch carpet.
