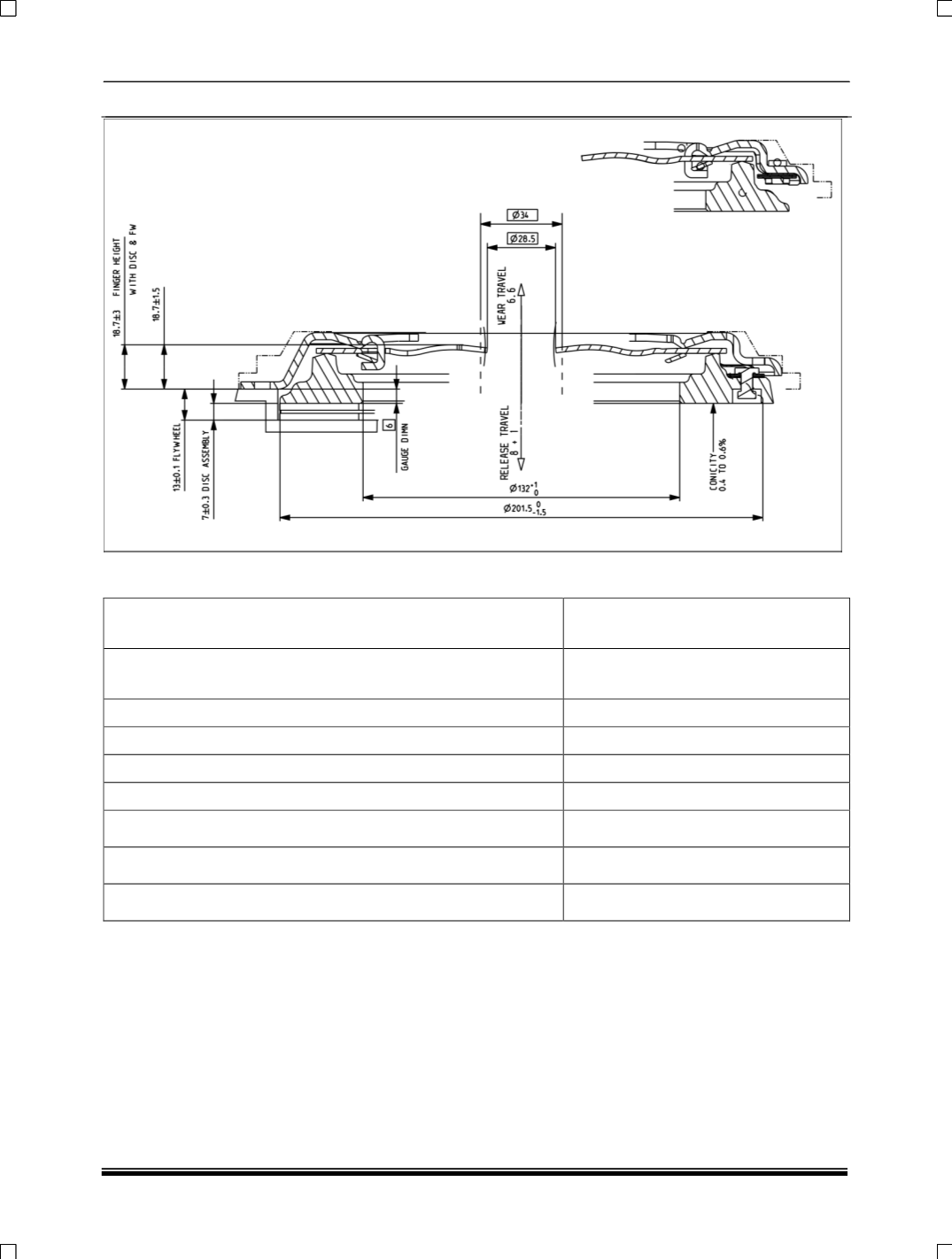

Clutch Pressure Plate
Clutch Pressure Plate
REVOTRON
1. Max finger height of Pressure plate from clutch
2. mounting face
18.7 ± 1.5 mm
3. Max permissible imbalance of clutch cover assy.
150 gm-mm
4. Max finger runout
0.8 at 34 mm dia
5. Clamp load (Minimum on unloading curve)
385 kg
6. Max. release load (New gauge plate)
120 kg
7. Release travel
8 ±1mm
8. Max. Wear travel
6.6 mm
9. Min. Pressure plate lift for release travel of 8 mm
1.4 mm
