Automated Manual Transmission
53
Hydraulic Selection Gearbox Shift Position
Sensor Removal
1.
Place the car on a lift.
2.
Position the gear lever at N.
3.
Connect the diagnosis equipment and car-
ry out the accumulator depressurization
procedure.
4.
Remove protection/guard under engine.
5.
Remove battery.
6.
Remove battery support/drip tray.
7.
Remove wiring for manual gearbox hy-
draulic selection system on hydraulic
selection unit
8.
Remove hydraulic speed selection hydrau-
lic actuator unit and clutch.
9.

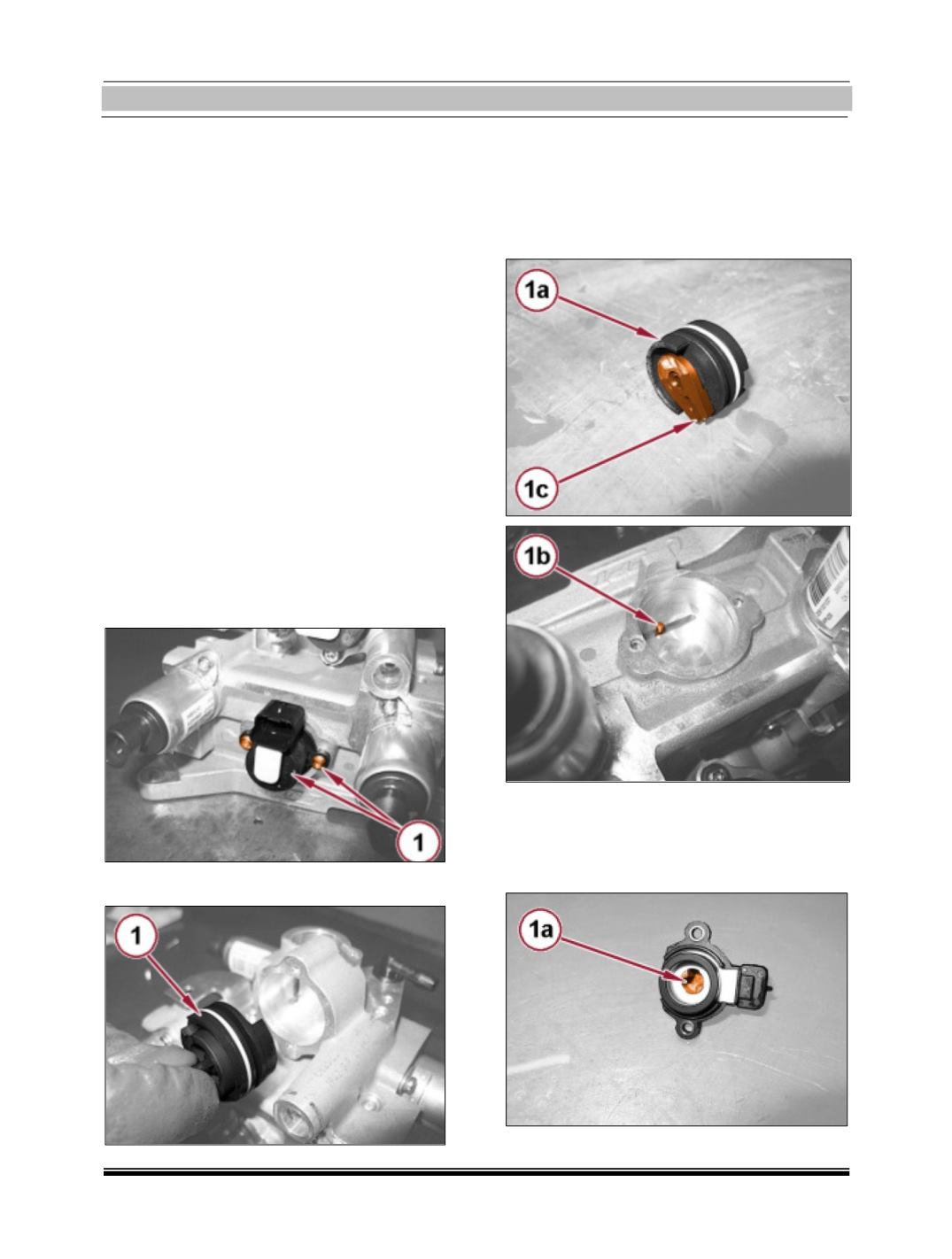

Loosen and remove the screws and re-
move the electro-hydraulic selection
gearbox gear engagement position sensor.
10. Remove the driver complete with O-ring.
Hydraulic Selection Gearbox Shift Position
Sensor Fitment
1.
Place the driver (1a) back in its housing,
complete with O-ring, taking care to at-
tach the pin (1b) with the fork (1c).
2.
Place the electro-hydraulic selection gear-
box gear engagement position sensor in
its housing, inserting the pin (1b) in the
Sensor (1a).
