DRIVETRAIN C549
42
4 1.2.6. INPUT SHAFT SEAL REPLACE-
MENT
1. Remove the clutch hydraulic actuator.

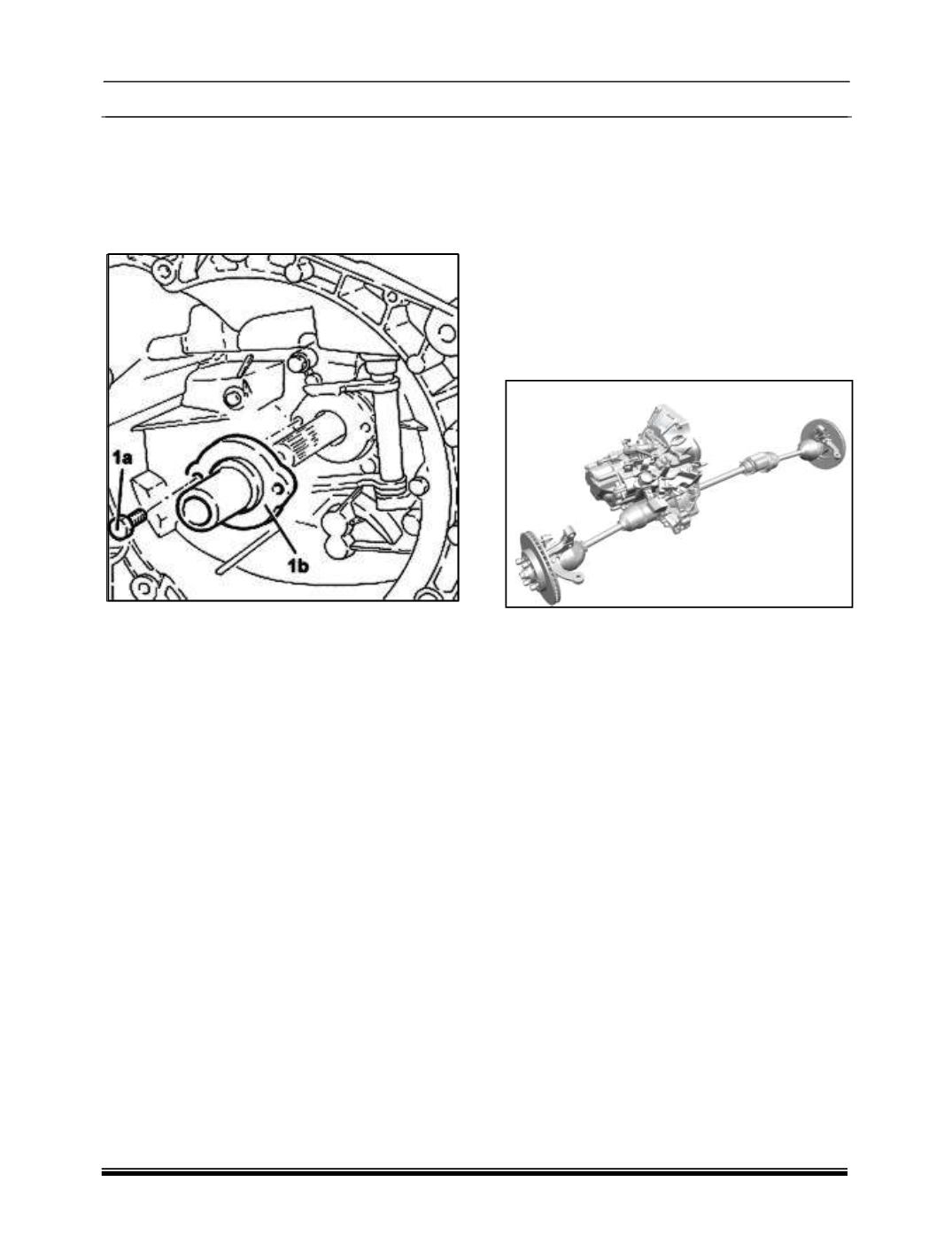

2. Unscrew the bolts (1a) and remove the
TRANSAXLE input shaft cover with built in
gasket (1b).
3. Replace the TRANSAXLE input shaft cover
with built in gasket in position and secure it
using the bolts.
4. Place the clutch hydraulic actuator in position
4A.1.3.DRIVE SHAFT
4A.1.3.1 INTRODUCTION
(a) 1.3 QUADRAJET
Driveshaft installed on Bolt/Zest (QUADRAJET) is
as shown in the figure below an intermediate
driveshaft transmits drive to the right driveshaft.
This solution allows drive torque to be is
distributed in perfectly symmetrical manner over
both wheels. In this way the curving of the longer
driveshaft, through bending, due to the drive
torque transmitted, which could cause vibrations
to the dynamic geometry of the vehicle, is
avoided.
