ZEST/BOLT

ENGINE 1.3L QUADRAJET (90PS)

(iii) If pressure does not rise, replace fuel pump or

check for leakages.

g. After checking fuel pressure, remove fuel pressure

gauge.

h. Connect fuel delivery connector to fuel pump nipple

and ensure that quick fix couplings are properly

fitted.

i. With engine OFF and ignition ON check for fuel

leakage.

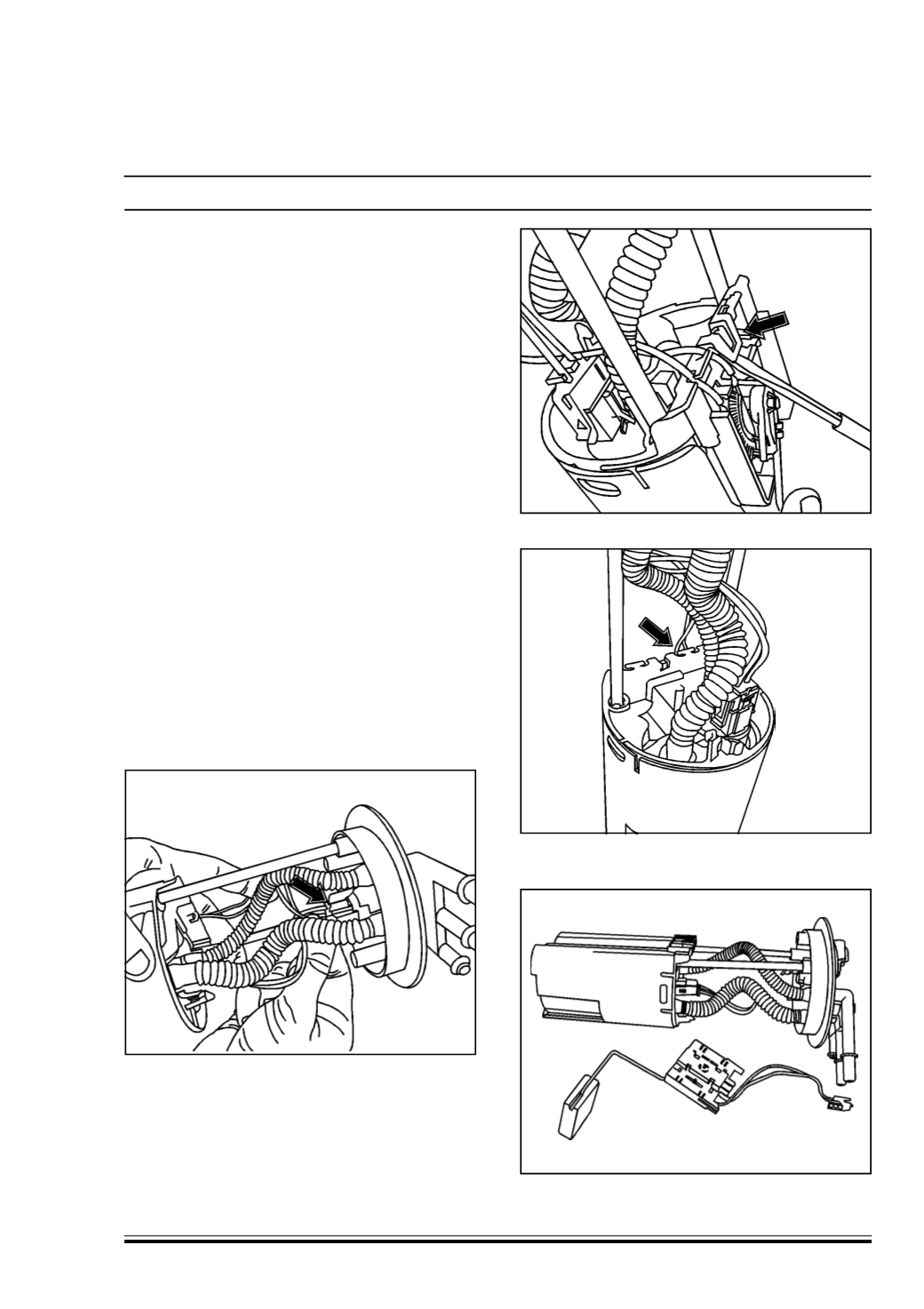

C. FUEL LEVEL SENSOR

Fuel level sensor assembly consists of major parts

as TFR Holder assembly and Float Arm Assembly.

Fuel level sensor wiring harness is connected to

module connector (under themodule cover). Fuel level

sensor assembly provides the signal to indicate the

fuel level in the tank. As the float arm assembly moves

the fuel level in tank, resistance at sensor

harness varies accordingly.

REMOVAL:

1. Disconnect battery.

2. Remove fuel module assembly from vehicle.

(Refer Fuel module removal procedure).

3. Disconnect electrical connector of fuel level

sensor.

4. Pry out two locks (using suitable tool) located at

either end of fuel level sensor.

NOTE:

Please note that level sensor holder has the

snaps on both sides. Enough care need to be taken

to avoid damages to the snaps onmodule and level

sensor

5. Remove fuel level sensor.
