ENGINE 1.3L QUADRAJET (90PS)
70
The fuel system is divided into a low pressure circuit
and a high pressure circuit.
The low pressure circuit consists of:
Q
an auxiliary pump submerged in the tank;
Q
the fuel filter;
Q
the fuel return manifold pipe;
Q
the connecting pipes.
The high pressure circuit consists of:
Q
the pressure pump;
Q
the single fuel manifold pipe;
Q
the injectors;
Q
the connecting pipes.

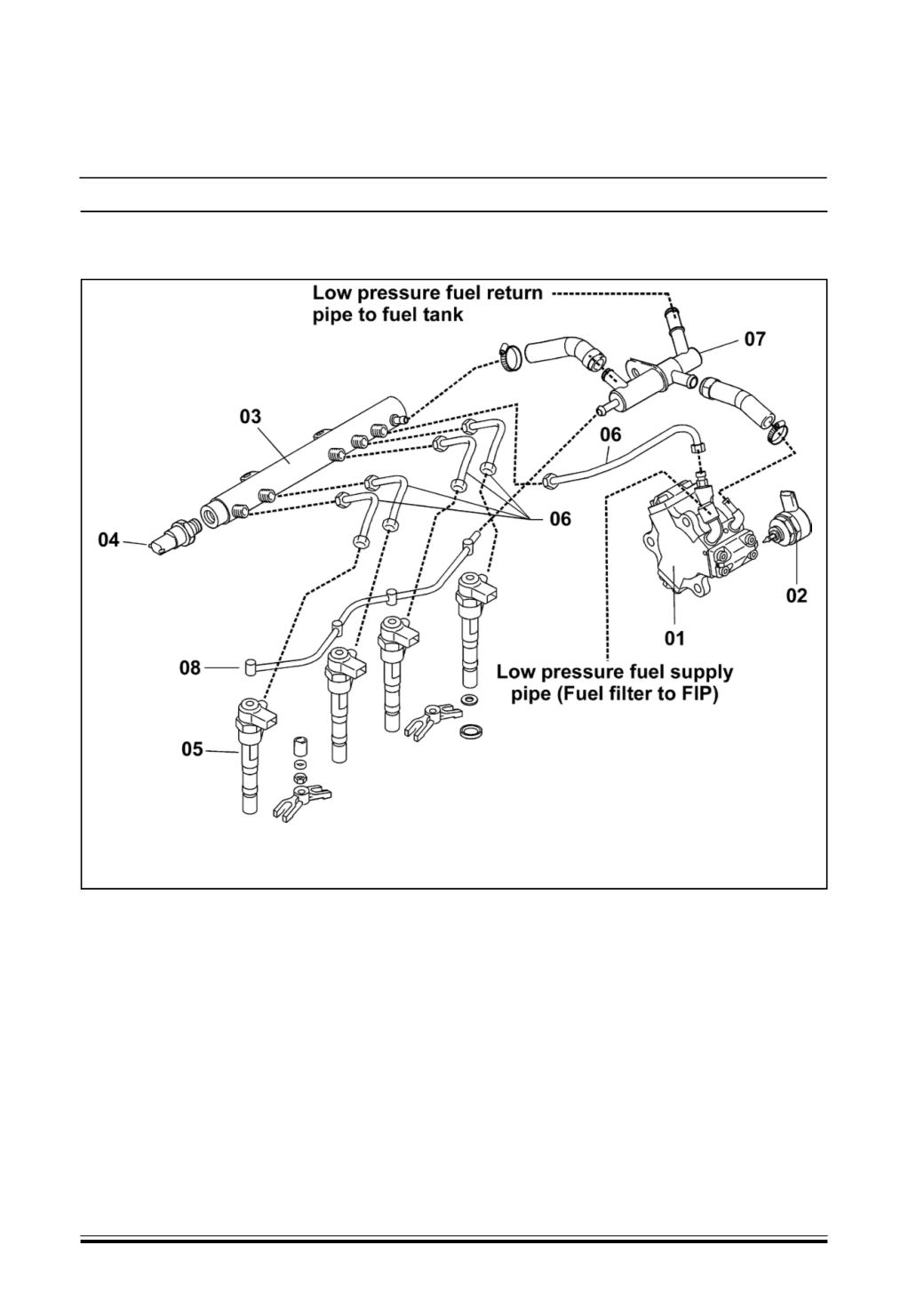

3A.1.5 FUEL SUPPLY SYSTEM
3A.1.5.1 INTRODUCTION
01 High pressure fuel injection pump (FIP)
02 Fuel pressure regulator on FIP
03 Single fuel manifold pipe (fuel rail)
04 Fuel pressure sensor
05 Fuel injector
06 Rigid high pressure pipes
07 Fuel return manifold pipe
08 Tube
