Revotron 1.2T

129

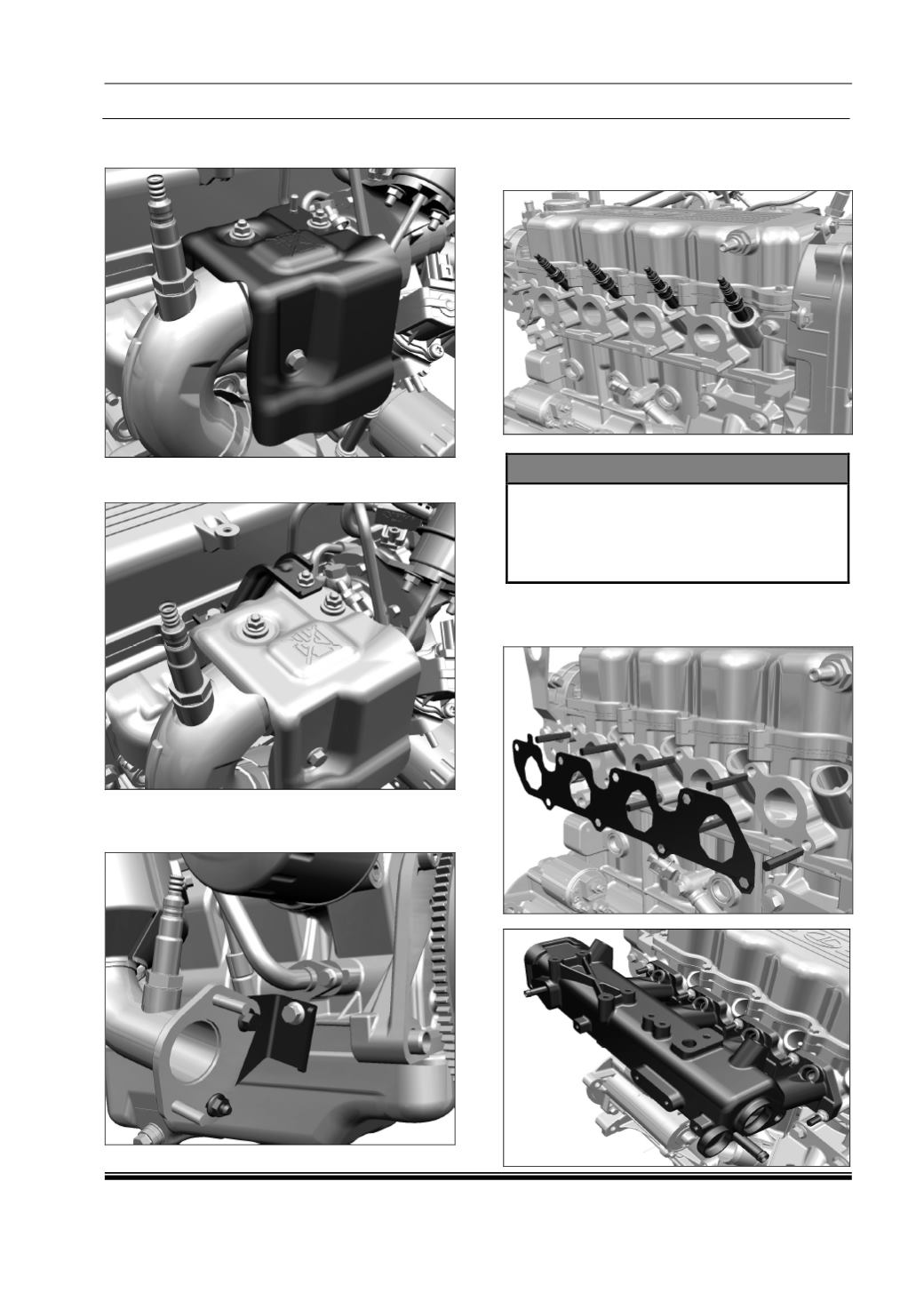

11. Fit the turbo heat shield mounted on support

bracket.

12. Fit the CCC support bracket near the cylinder

head cover.

13. Fit the rear support bracket for the closed

coupled catalytic convertor (CCC) near oil

sump.

viii. Fitment of Intake Manifold and

Peripherals

1. Fit the Spark Plugs by using Special Tool.

SPECIAL TOOL

•

Handle for Box Spanner -

2702 5890 06 13

•

Spark Plug Removing Socket -

2702 5890 06 20

2. Fit the Intake Manifold and Gasket to the

engine body and torque nuts to specified

torque.
