Revotron 1.2T
106

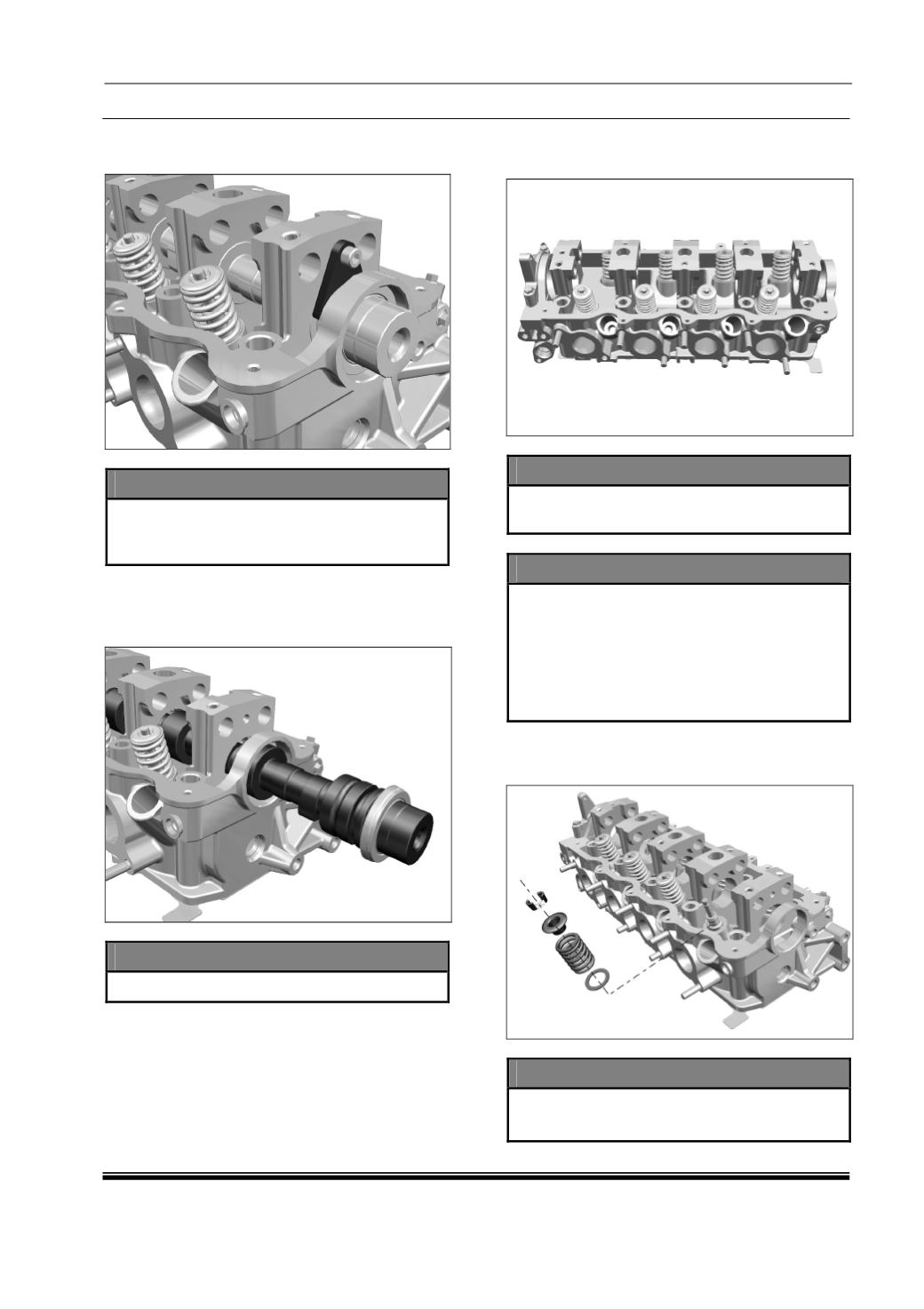

3. Remove the hex screw securing the Camshaft
Lock Plate.
CAUTION
•
When removing the camshaft, use care to
avoid damaging the bearing surfaces of
the cylinder head and the camshaft.
4. Using the Special Tool gently tap and,
carefully pull the camshaft from the cylinder
head with the oil seal. Rotate the camshaft as
necessary to aid in removal.
SPECIAL TOOL
•
Camshaft Oil Seal Drift - 2654 2890 05 08.
5. Bolt the Special Tool the intake port on the
cylinder head.
SPECIAL TOOL
•
Valve Spring Compression Support Rail -
2702 5890 06 16
NOTE
•
When removing the valves, valve springs
and retaining components, note the
location of each and keep these
components together so the valves,
springs and retaining components are
installed in the same location in the
cylinder head during reassembly.
6. Using Special Tool, to compress and remove
the valve spring lock halves, valve retainers,
valve springs and valve seats.
SPECIAL TOOL
•
Valve Spring Compression Tool -
2702 5890 06 15
